MODEL HS-G300R 0712-002 HR-1 illust-1 ノズルストッカ 2,3 NOZZLE ST OCKER 2,3 Fig. HR-1 ベース部 Base Section 43 49 70 46 2 52 ・ 62 ・ 63 71 ・ 62 ・ 63 55 ・ 66 ・ 67 BLOCK2 46 71 ・ 62 ・ 63 55 ・ 66 ・ 67 43 49 70 2 50 52 ・ 62 ・ 63 BLOCK3…
MODEL HS-G300R
0712-002
HR illust-1
Fig. HR

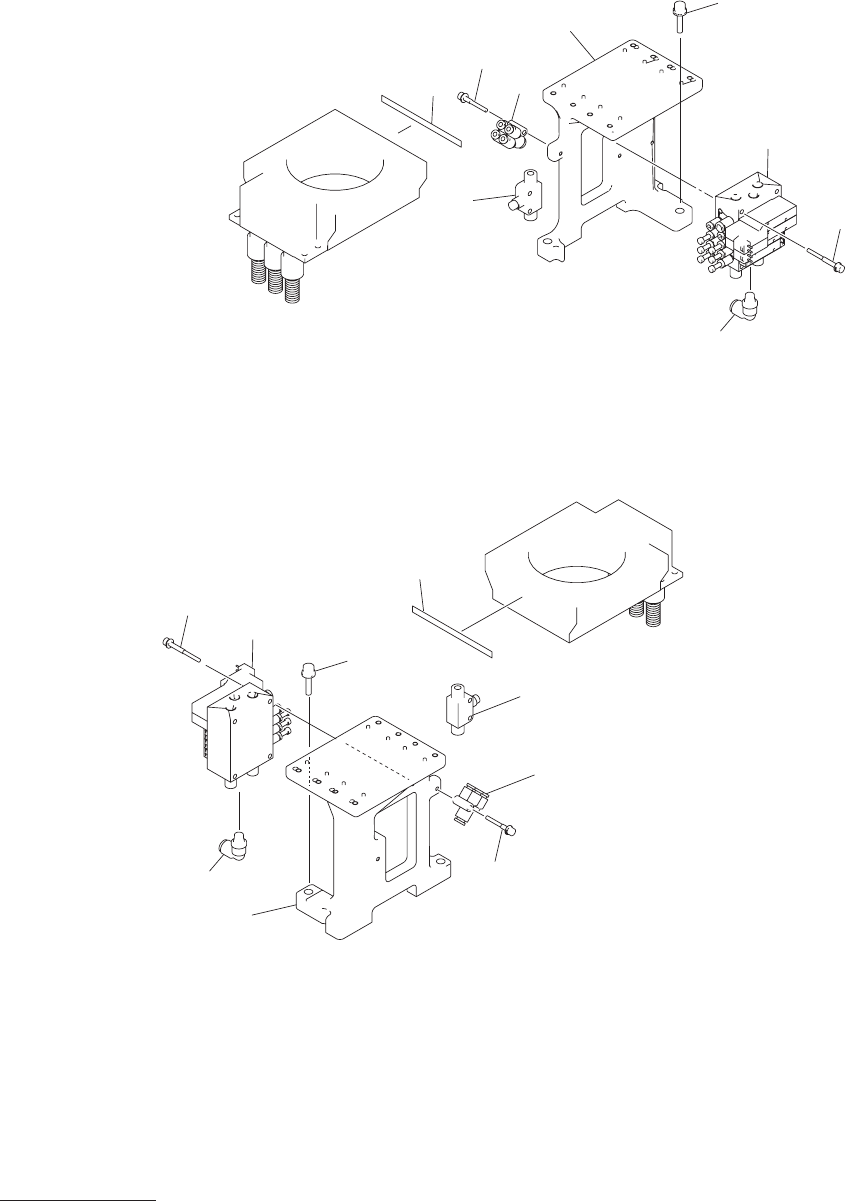

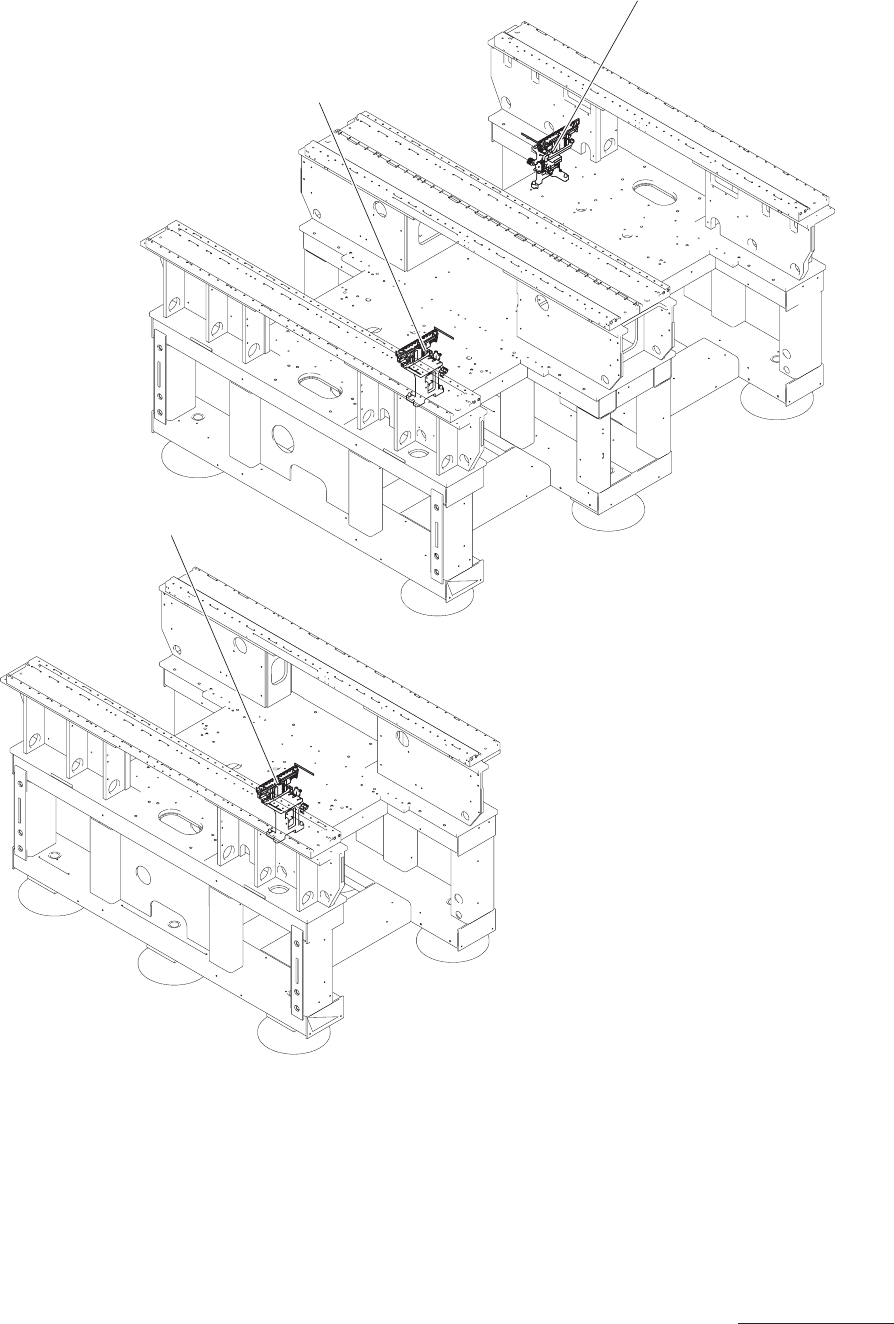

ノズルストッカ
2,3 NOZZLE STOCKER 2,3
GXH-3J
1 UNIT / 1 MACHINE
BLOCK3
BLOCK2
BLOCK2
GXH-3
2 UNIT / 1 MACHINE
注) BLOCK2またはBLOCK3に多機能ノズルストッカが装着した場合、
装置一台あたりのユニット数は異なります。
Notice)
When the multi-functional nozzle stocker is attached to the BLO
CK 2 or
BLOCK 3, the quantity of nozzle stocker unit to be selected per machine is
different from that of other nozzle stocker units.
MODEL HS-G300R
0712-002
HR-1 illust-1
ノズルストッカ
2,3 NOZZLE STOCKER 2,3
Fig. HR-1
ベース部
Base Section
43
49
70
46
2
52
・
62
・
63
71
・
62
・
63
55
・
66
・
67
BLOCK2
46
71
・
62
・
63
55
・
66
・
67
43
49
70
2
50
52
・
62
・
63
BLOCK3
50
MODEL HS-G300R
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
2 6301530956 NAME PLATE,INDEX 1 865HR-100-102 6P460180
43 6301587592 BASE 1 865HR-100-043 210A2896
46 6301577135 SOLENOID VALVE 1 Y0935,Y0936
865HR-100-046 4L810362
49 6300052732 AIR LINE EQPT 1 865HR-100-049 225B0085
50 6301028071 AIR LINE EQPT 1 865HR-100-050 225B0393
52 6300007688 BOLT,HEX-SCT 1 M4X30 865HR-100-512 221A0023
55 6300007909 BOLT,HEX-SCT 2 M6X25 865HR-100-515 221A0045
62 4111412905 WASHER SPR 4 3 865HR-100-522 221H0284
63 4111414008 WASHER V 4X9X0.8 3 865HR-100-523 221H0315
66 4111413001 WASHER SPR 6 2 865HR-100-526 221H0289
67 4111414305 WASHER V 6X12.5X1.6 2 865HR-100-527 221H0320
70 6301246260 AIR LINE EQPT 1 865HR-100-530 225B0502
71 6300007701 BOLT,HEX-SCT 2 M4X40 865HR-100-531 221A0025
HR-1 list-1
HR-1
GXH-3J 1Unit/1Machine
GXH-3
2Unit/1Machine
