G -S003-14 0801-002 Case:Block4 Case:Block2 81 86 . 87 81 86 . 87 内が本体対応箇所です。 Inside the box shows the locations to be treated in the main machine. 61 56 61 54 57 54 61 61 71 . 72 . 73 76 . 77 . 78 71 . 72 . 73 76 . 77 .…
G -S003-14
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
DX-1(Block1,3)
DX-1(Block1,3) list-1
54 6301563954 BRACKET 2 845DX-100-054 211FC323
56 6301532059 BRACKET 1 845DX-100-056 211FB800
57 6301532424 BRACKET 1 845DX-100-057 211FB804
61 6301376103 P.C.B,MOUNT 6 U08,U09
845DX-100-061 4B111516
66 6300137606 ACCESSORY,P.C.B 24 845DX-100-451 23L10024
67 6300137637 ACCESSORY,P.C.B 24 845DX-100-452 23L10025
71 4111130700 SCR PAN 3X16 24 845DX-100-851 221E0491
72 4111191909 WASHER V 3X7X0.5 24 845DX-100-852 221H0311
73 4110864408 WASHER SPR 3 24 845DX-100-853 221H0280
76 4111406409 SCR PAN 5X16 16 845DX-100-866 221E0512
77 4110881702 WASHER V 5X10X1 16 845DX-100-867 221H0317
78 4110082109 WASHER SPR 5 16 845DX-100-868 221H0286
81 6301376097 P.C.B,MOUNT 1 U15
845DXA100090-A051
4B111515
86 6300137606 ACCESSORY,P.C.B 4
845DXA100090-A056
23L10024
87 6300137637 ACCESSORY,P.C.B 4
845DXA100090-A057
23L10025
88 6301563954 BRACKET 1
845DXA100090-A058
211FC323
GXH-3PH
G -S003-14
G -S003-14
0801-002
Case:Block4
Case:Block2
81
86
.
87
81
86
.
87
内が本体対応箇所です。
Inside the box shows the locations to be treated in the main machine.
61
56
61
54
57
54
61
61
71
.
72
.
73
76
.
77
.
78
71
.
72
.
73
76
.
77
.
78
71
.
72
.
73
71
.
72
.
73
76
.
77
.
78
66
.
67
66
.
67
66
.
67
66
.
67
71
.
72
.
73
71
.
72
.
73
66
.
67
66
.
67
76
.
77
.
78

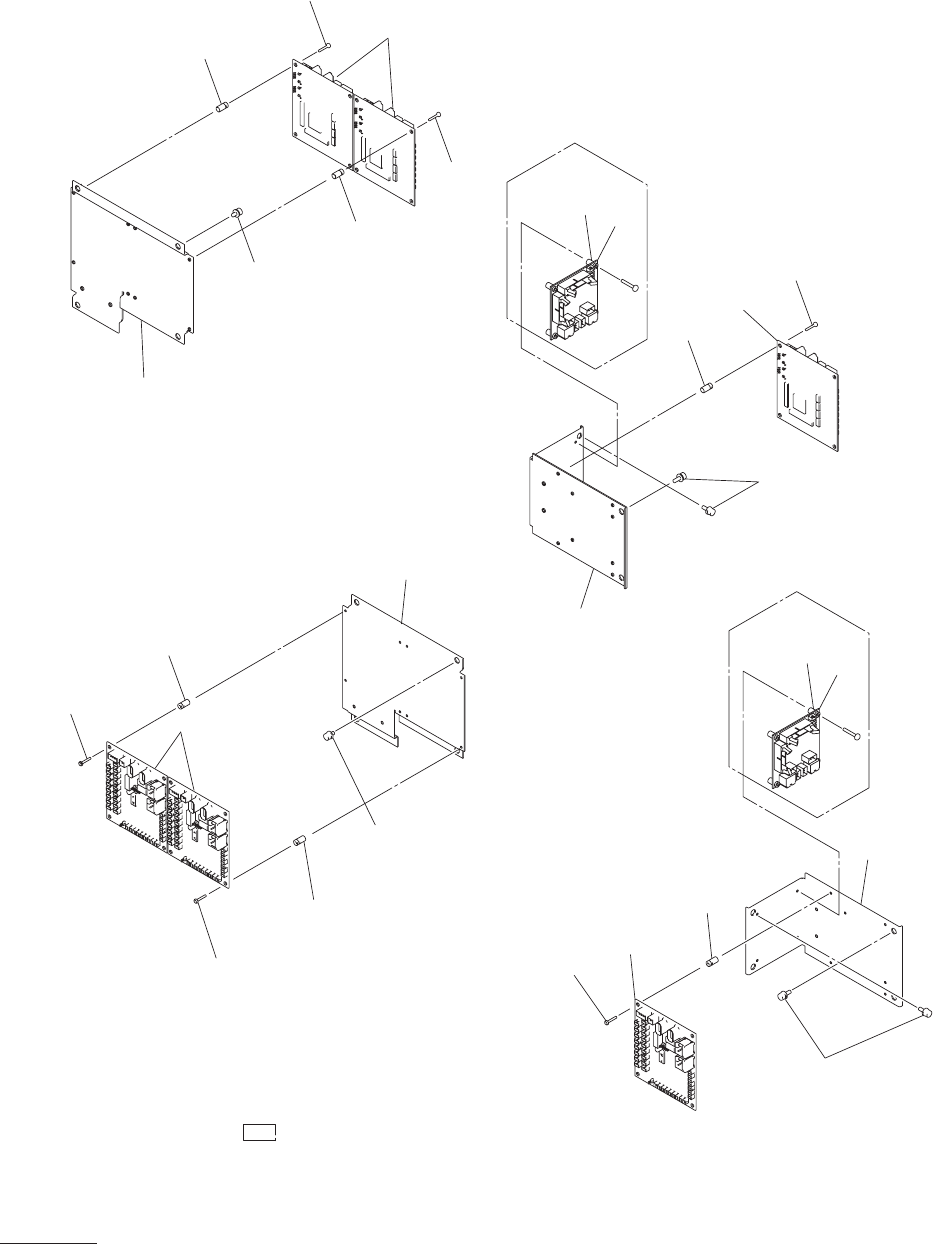

架台上全体部準備
OVERALL UPPERFRAME
PREPARATION SECTION
Fig. DX-1 I/O
ボード
L/R I/O Board L/R
(Case:Block2,4)
(Case:Block2,4)
DX-1(BlocK2,4) illust-1
G -S003-14
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
DX-1(Block2,4)
DX-1(Block2,4) list-1
54 6301563954 BRACKET 2 845DX-100-054 211FC323
56 6301532059 BRACKET 1 845DX-100-056 211FB800
57 6301532424 BRACKET 1 845DX-100-057 211FB804
61 6301376103 P.C.B,MOUNT 6 U08,U09
845DX-100-061 4B111516
66 6300137606 ACCESSORY,P.C.B 24 845DX-100-451 23L10024
67 6300137637 ACCESSORY,P.C.B 24 845DX-100-452 23L10025
71 4111130700 SCR PAN 3X16 24 845DX-100-851 221E0491
72 4111191909 WASHER V 3X7X0.5 24 845DX-100-852 221H0311
73 4110864408 WASHER SPR 3 24 845DX-100-853 221H0280
76 4111406409 SCR PAN 5X16 16 845DX-100-866 221E0512
77 4110881702 WASHER V 5X10X1 16 845DX-100-867 221H0317
78 4110082109 WASHER SPR 5 16 845DX-100-868 221H0286
81 6301376097 P.C.B,MOUNT 1 U15
845DXA100090-A051
4B111515
86 6300137606 ACCESSORY,P.C.B 4
845DXA100090-A056
23L10024
87 6300137637 ACCESSORY,P.C.B 4
845DXA100090-A057
23L10025
GXH-3PH
