G -S003-01 0712-002 23 23 内がノズルストッカ増設対応箇所です。 Inside the box shows the locations to be treated when the nozzle stocker is added. 43 49 70 46 2 52 ・ 62 ・ 63 71 ・ 62 ・ 63 55 ・ 66 ・ 67 Case:Block2 Case:Block3 46 71 ・ 62 ・ 63…
MEMO
G -S003-01
0712-002
23
23
内がノズルストッカ増設対応箇所です。
Inside the box shows the locations to be treated when the nozzle stocker is added.
43
49
70
46
2
52
・
62
・
63
71
・
62
・
63
55
・
66
・
67
Case:Block2
Case:Block3
46
71
・
62
・
63
55
・
66
・
67
43
49
70
2
50
52
・
62
・
63
50
ノズルストッカ
2,3 NOZZLE ST
OCKER 2,3
(G -S003-01) (G -S003-01)

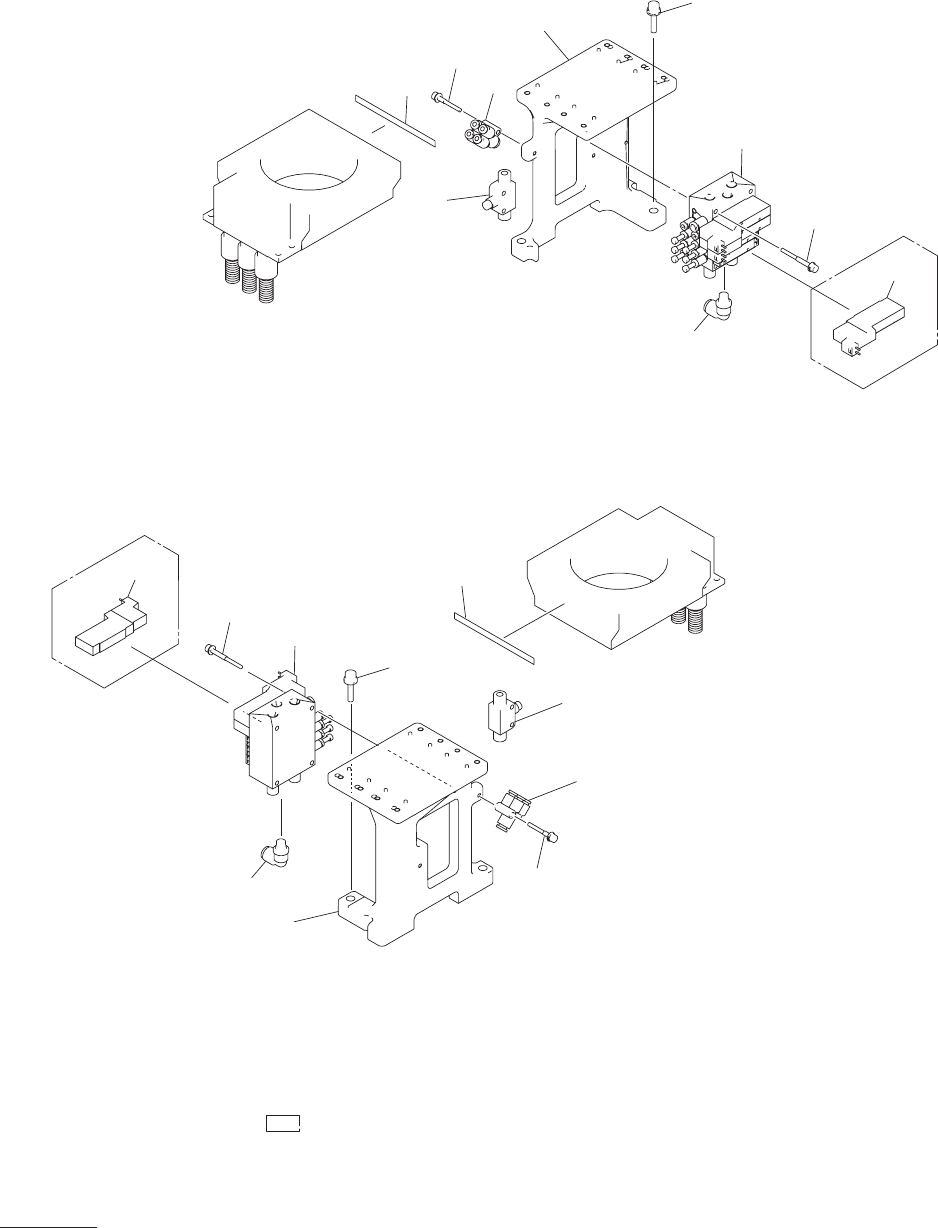

Fig. HR-1
ベース部
Base Section
HR-1 illust-1
G -S003-01
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
HR-1
HR-1 list-1
2 6301530956 NAME PLATE,INDEX 1 865HR-100-102 6P460180
23 6301280899 VALVE 1
803H-A210010-A023
225C0117
43 6301587592 BASE 1 865HR-100-043 210A2896
46 6301577135 SOLENOID VALVE 1 Y0935,Y0936
865HR-100-046 4L810362
49 6300052732 AIR LINE EQPT 1 865HR-100-049 225B0085
50 6301028071 AIR LINE EQPT 1 865HR-100-050 225B0393
52 6300007688 BOLT,HEX-SCT 1 M4X30 865HR-100-512 221A0023
55 6300007909 BOLT,HEX-SCT 2 M6X25 865HR-100-515 221A0045
62 4111412905 WASHER SPR 4 3 865HR-100-522 221H0284
63 4111414008 WASHER V 4X9X0.8 3 865HR-100-523 221H0315
66 4111413001 WASHER SPR 6 2 865HR-100-526 221H0289
67 4111414305 WASHER V 6X12.5X1.6 2 865HR-100-527 221H0320
70 6301246260 AIR LINE EQPT 1 865HR-100-530 225B0502
71 6300007701 BOLT,HEX-SCT 2 M4X40 865HR-100-531 221A0025
HS-G300L
