Retrofit / Maintenance Instructions SIPLACE HS-50 / HS-60
04/2004 US Edition 1 Retrofit / Maintenance Instructions Air filter box with more powerful fan
15
1 Retrofit / Maintenance Instructions
Air filter box with more powerful fan
1.1 Use and overview
The optional air filter box with the more powerful fan that it requires is used where there is
increased dust in the ambient air around the placement machine. This option allows filtered
ambient air to be supplied in order to cool the motors inside the SIPLACE HS-50 or HS-60
machine.
All the safety instructions specified in the HS maintenance instructions take priority for the main-
tenance.

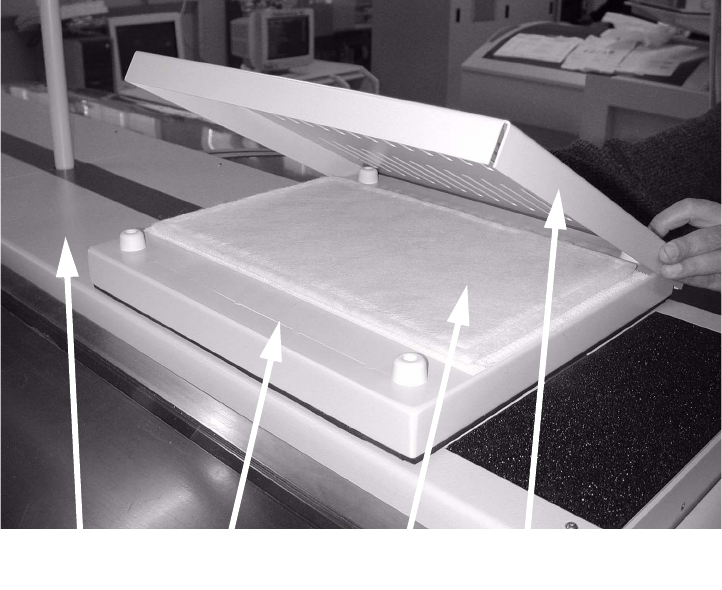

1.1.1 Structure of the air filter box
1
1
1
1
Gantry cover
Bottom part of air filter box
Filter mat
Lid of air filter box
Retrofit / Maintenance Instructions SIPLACE HS-50 / HS-60
1 Retrofit / Maintenance Instructions Air filter box with more powerful fan 04/2004 US Edition
16
1.2 Retrofit kit
The "Complete air filter box" retrofit kit, item no. 00119016-01, consists of:
- 2x air filter boxes Item no. 00357968-02
consisting of:
– 4x rapid clamping element Item no. 00358751-02
– 1x filter mat 230x360 Item no. 00315209-01
(mounted on a frame)
- 2x gantry fan unit, Y axis, HS-50 Part no. 00364951-01
option (with cables and plugs)
each contains 2 axial fans
- 1x Retrofit and maintenance Item no. 00193279-03
instructions "Air filter box with more
powerful fan" HS-50 / HS-60, D + E
1.3 Tools and consumables
For retrofit: 1
– Allen key size 2.5
For maintenance: 1
– Clean, lint-free cloth
- Vacuum cleaner with wide nozzle
1.4 Your contact
TSC Hotline
Tel. ++49 (0)89 722 27580
e-mail: hotline.siplace@mchrm.siemens.de
1
1
1
1
1
1
1
1
Retrofit / Maintenance Instructions SIPLACE HS-50 / HS-60
04/2004 US Edition 1 Retrofit / Maintenance Instructions Air filter box with more powerful fan
17
1.5 Safety instructions
WARNING
The safety instructions from the “Operational safety” chapter of the user manual and servicing
instructions take precedence over these instructions. 1
The SIPLACE placement machines are supplied with mains voltage.
Consequently parts of these systems carry dangerous voltages! This voltage is present at cer-
tain modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
During the retrofit, always secure the machine to prevent access by other people and to prevent it
being switched on again. The procedure is described in the “Locking the machine…” section of
the user manual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
1
