PCB alignment unit for SIPLACE S-27 HM / HS-60 / HF-series / X-series / D-series
Edition 11/2006
39
Mounting the ‘stopper PCB adjustment’: 2
2
With S-27 HM are used shorter (148 mm) ‘stopper PCB adjustments’ (00366392-). By application
of other ‘stopper PCB adjustments’ it could result in a crash. 2
Stop washer
bottom
Wedge
Plain washer
Compression spring (prevents PCB damage)
PCB stop
2
Fig. 2 - 13 ‘Stopper PCB adjustment’
: Thread the stop washer ‘stopper PCB adjustment’ beneath the ‘path limiter slat’ (see Fig. 2 -
15).
: Clamp the ‘stopper PCB adjustment’ loos
ely on the lifting table.
: Switch the ‘stopper PCB adjustment’—matching with you
r PCB—in the final position and fix it.
2
When the ‘stopper PCB adjustment’ is pulled up, it should slide down without hitting the ‘path
limiter slat’.
2
: Make sure that the ‘stopper PCB adjustment’ is not cover the ‘path limiter slat’.
2
HS-60: By moving, the ‘stopper PCB adjustment’ must not cover the fixing belt!
(Only the fixing belt of HS-60 is in the immediate vicinity.) 2
2
: Check that the lifting table and lifting table rockers can be moved up freely. If the plain washer
of the ‘stopper PCB adjustment’ is in contact with the width adjustment fixing belt, you have to
eliminate it (see Troubleshooting page 41).
: Check that the width adjusting unit moves fr
ee
ly over the entire conveyor width.
Stop washer
bottom
Wedge
Plain washer
Fixing belt
slat
path limiter
PCB alignment unit for SIPLACE S-27 HM / HS-60 / HF-series / X-series / D-series
Edition 11/2006
40
2
Fig. 2 - 14 Example HS-60
The stop washer ‘stopper PCB adjustment’ must
be threaded beneath the ‘path limiter slat’.
By moving the ‘stopper PCB adjustment’ must not
cover the ‘path limiter slat’!
2
Fig. 2 - 15 Example D1 /D2
PCB alignment unit for SIPLACE S-27 HM / HS-60 / HF-series / X-series / D-series
Edition 11/2006
41
: Calibrate the PCB reference corner.
2
Repeat this after disassembling the option. 2
2
2.6 Troubleshooting HS-60
Table down limit switch 2
The plain washers in the lifting table may cause the lifting t
able down limit switch to stop
responding. In this case do the following: 2
: Disassembly the lifting table.
: Mark the position of the inductive proximity sw
itch (if y
ou later wish to retract it).
: Now move the switch against moving direction until th
e switch responds (the LED lights up).
inductive
proximity switch
2

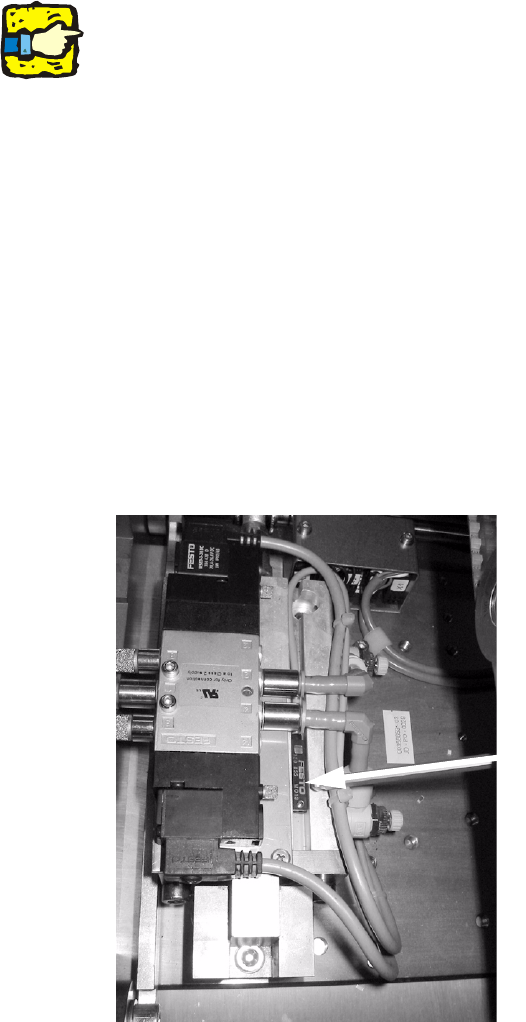

Fig. 2 - 1 Lifting table cylinder and limit switch
