Th is p rod uc t sho ul d not b e thr own i n the g ar ba ge. In ac co rda nc e wi th th e Eur ope a n dir ec tiv e 201 2/19/EU, ele ctr on ic eq ui pm en t at the e nd o f its l ife m us t be c oll e cted a nd r etu rn …
10
3
4

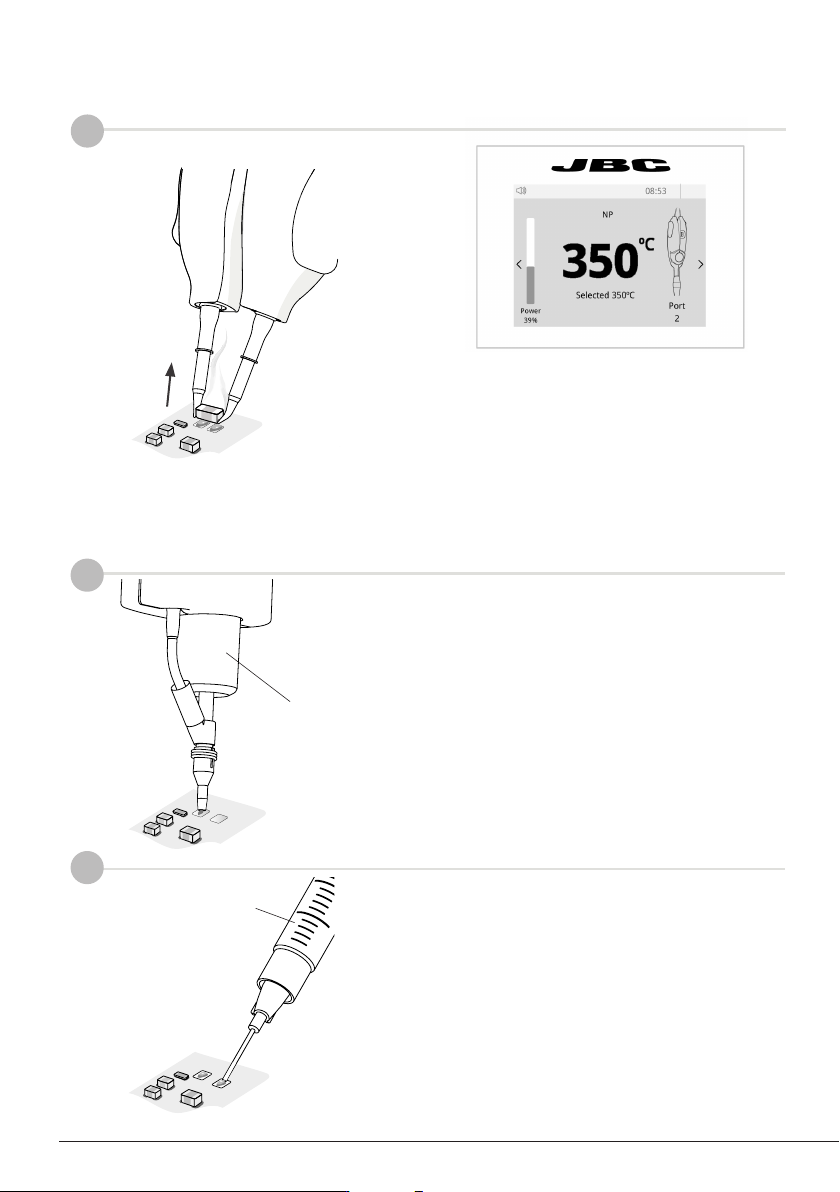

Pad Cleaning
Clean the pads with JBC´s desoldering tool
DS360.
For this operation JBC´s desoldering station
DSS is needed.
Solder Paste Dispensing
Apply the solder paste amount needed to
solder the new chip component.
The use of JBC´s DPM solder paste dispenser
is recommended.
DPM
Manual
Solder Paste Dispenser
DS360
Micro
Desoldering Iron
Desoldering*
Lift the tool from the holder, press and hold
the pedal to activate the tool and desolder the
component.
Once the pedal is released the tool enters in
hibernation mode and cools down.
2
* “Press Mode” previously selected
11
5
6

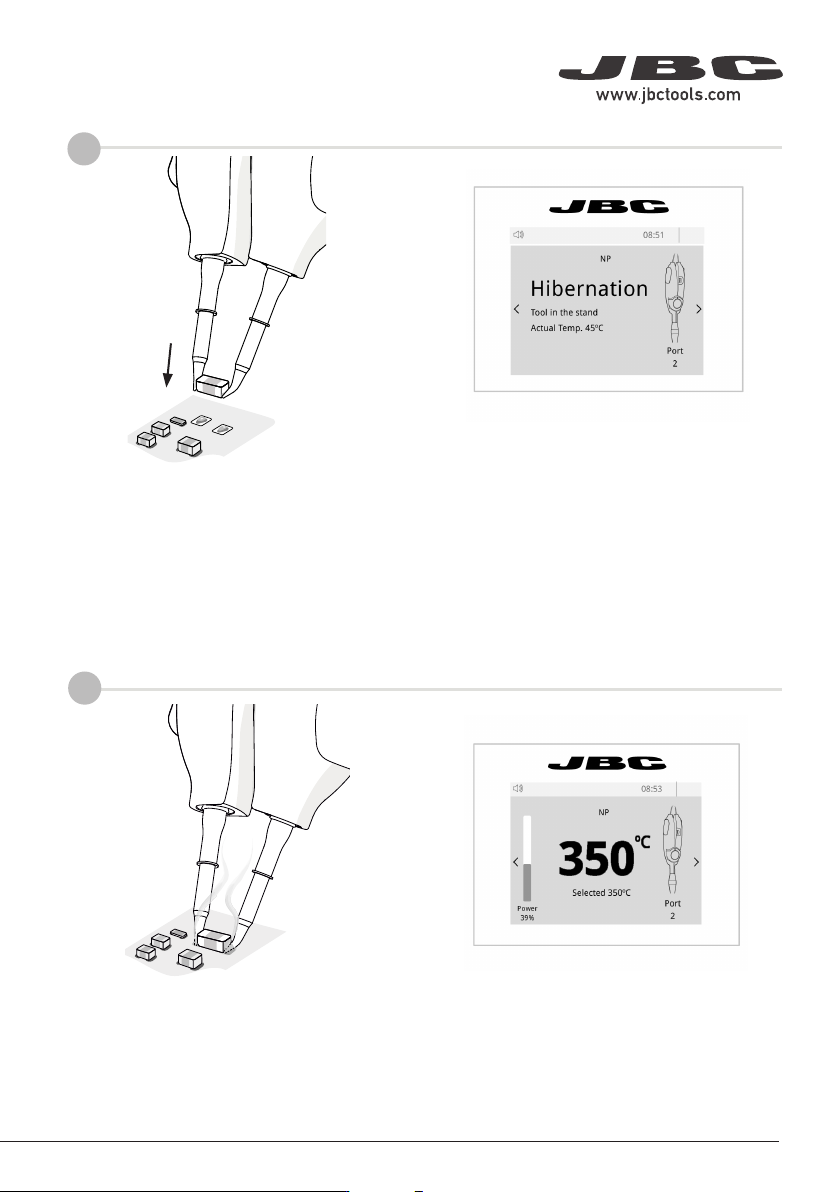

Placing
Do not press the pedal.
Use the tool to position the component on the
previously tinned pad.
Note:
The inactive tool prevents the component from
heating up prematurely.
Soldering
Once in position press and hold the pedal to
activate the tool and perform the soldering.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
P005
Pedal + Adapter Kit
Ref. P-005
- Cable length: 1.9 m / 74.80 in
- Total Net weight: 414 g / 0.91 lb
- Total Package Dimension / Weigt: 300 x 125 x 65 mm / 560 g
(L x W x H) 11.81 x 4.92 x 2.56 in / 1.23 lb
Complies with CE standards
ESD safe
Specifications
0028920-170522
