3 Pedal Ref. P-005 Connection to Control Units or Peripherals Connect the pedal to JBC station or peripherals. The connect or is identified by the designation “ P E D A L” . Connection to AL Co nne ct th e pe da l by me …
2
Pedal .............................................................1 unit
Manual .................................................... 1 unit
Ref. 0028920
Packing List
The following items are included:
This manual corresponds to the following references:
P-005
Adapter .........................................................1 unit
3
Pedal
Ref. P-005
Connection to Control Units or Peripherals
Connect the pedal to JBC station or peripherals. The connector is identified by the designation
“ P E D A L”.
Connection to AL
Connect the pedal by means of the adpter cablet to the AL station. The connector at the rear of the
station is identified by the designation “PEDAL”.
Adapter Cable
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
4

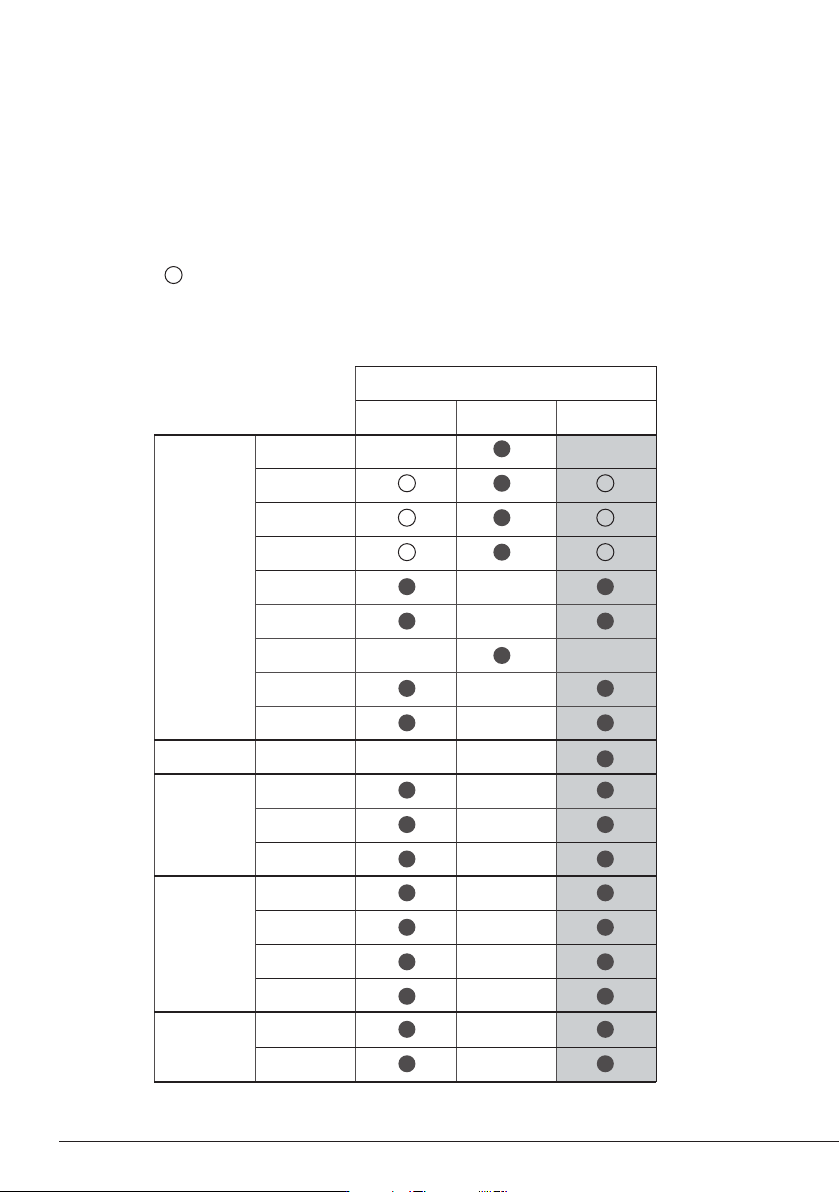

Pedal Compatibility
Pedals
P405* P305* P005
Control
Unit
DIU
DDU
DMU
HDU
JNAU
JTU
WSU
ALU
NAU
Station AL
Module
MSE
MVE
MNE
Preheater
PHNK
PHSK
PHBK
PHXK
Fume
Extractor
FAE1
FAE2
* not included, sold separately
P005 is compatible with JBC devices as shown in the table in the highlighted column.
P305* and P405* is also shown in the table below.
Marked with means pedal P005 cannot be connected directly to JBCs control unit. A module
must be used (See next pages “Pedal Set Up”).
