8 Pedal Set Up for AL (Auto Feed Soldering Station) The choosed wire dispensing operation mode will be applied for the tool button as well as for the pedal activation. The working mode can be switched to: - Continous: So…

100%1 / 12
4 Filter set
5 Counters
6 Program version
Main menuMain menu
Exit
1 Reset
2
Unit
3
Port
PortPort
1 Program Ctm - 100%
2
Delay to stop
3
Pedal
BackBack
PedalPedal
1 Activation One-touch
2 Mode Pressed
BackBack
7
Pedal Set Up for FAE1, FAE2 (Fume Extractors)
Select Port
* One-touch activates the pedal funtion until pressed twice. Continous activates the pedal function
while pressing the pedal.
3. Set the pedal function according to your work needs:
2. At the Port Menu select Pedal.
1. Enter the Main Menu and select Port.
Select Pedal
Shows the activation mode.
Choose between One-
touch* and Continous*.
Select the activating mode of
the pedal. Choose between
Pressed and Released.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
8
Pedal Set Up for AL (Auto Feed Soldering Station)
The choosed wire dispensing operation mode will be applied for the tool button as well as for the
pedal activation.
The working mode can be switched to:
- Continous: Solderwire is being fed constantly as long as the pedal or the tool button is activated.
- Discontinous: A predetermined solder wire amount is being fed every time the pedal or tool button
is being pressed.
Navigate throug the menu by pressing , use or to change the value. Confirm the
selection by pressing .
P005
P105
P305
P405
PORT 2
PERIPHERALS
FAE/
ROBOT
PORT 1
DDU
www.jbctools.com
1 2 3
SW1
P305
Conguration
Switch
SUPPORT
CONNECTION
PEDAL
STATION
TOOL
PORT 2
PERIPHERALS
FAE/
ROBOT
PORT 1
DDU
MSE
www.jbctools.com
STATION
TOOL
9
Tool
Control Unit
1
Example:

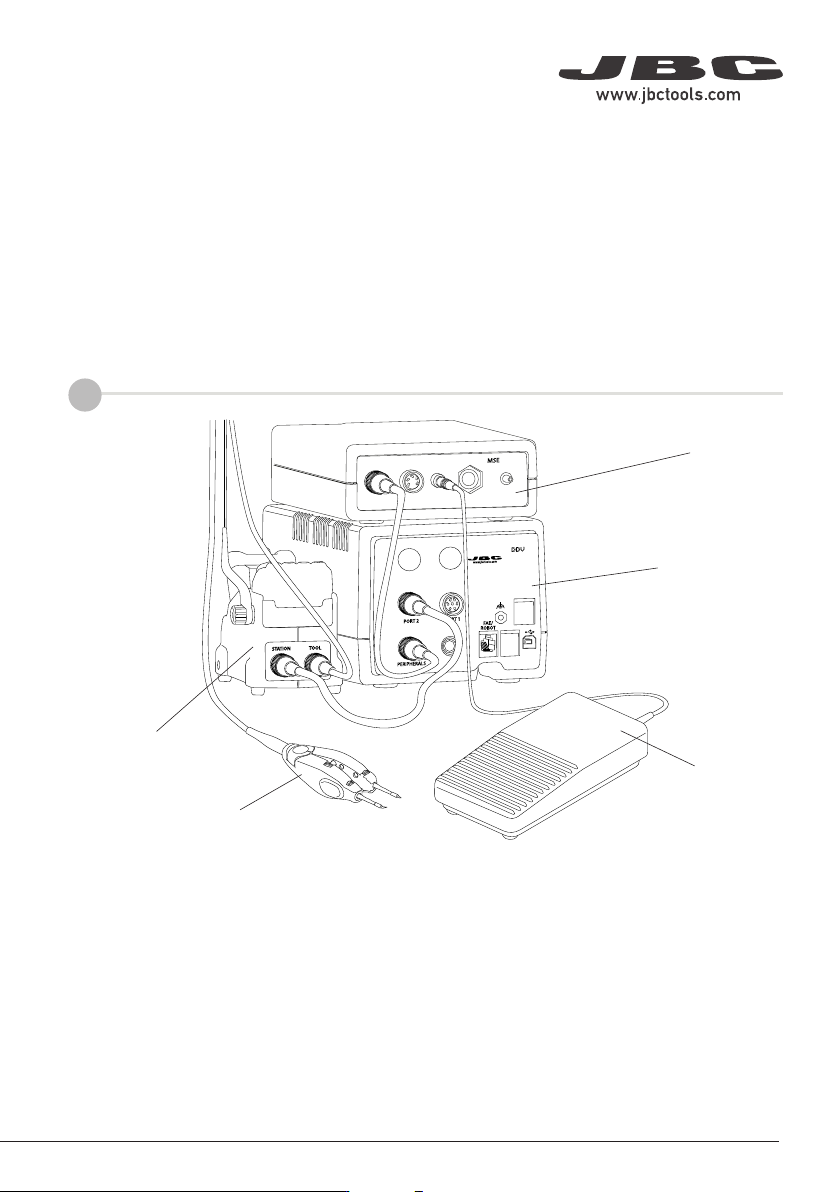

Chip Compoments Rework Process using Tweezers and Pedal
Pedal
Connections
Connect the stand and the module to to the control unit. The Tool must be connected to the stand.
Then connect pedal P005 to the module.
In the peripherals menu for the “Pedal Activation Mode” choose between “pressed” and “released” for
the pedalactivation mode (see page 5).
The Pedal is frequently used to rework components with tweezers.
The adjustable micro tweezers of the AM120 JBC not only provide a perfect solution for SMD chip
components and small/medium SOP of PCB assemblies, but also facilitate their quick placement and
soldering using the P005 pedal.
Module
Stand
