2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4 HS-60 / D4 "Long Board Option"
05/2007 Edition
44
2.7 Design criteria for the PCB fiducial description
2.7.1 Extended PCB size - Position of the PCB fiducials
Example 1 2
Example 2 2
Traveling range
Gantry group 2
There should be 3 fiducials in the
traveling range (processing area)
for each gantry group.
The two placement areas are
combined to form a fiducial set
(6 fiducials).
Essentially:
The further the fiducials are apart,
the more accurately the PCB
position and the PCB skew can
Traveling range
Gantry group 1
From 368mm up to 610mm =
14.5" - 24" PCB length
360/200
600/200
10/200
220/10
10/10
600/10
T
raveling range
G
antry group 2
There should be 3 fiducials in the
traveling range (processing area)
for each gantry group.
It is also possible to define fiducials
that apply to both processing areas.
The two placement areas are com-
bined to form a fiducial set with 4
fiducials.
Essentially:
The further the fiducials are apart,
the more accurately the PCB posi-
Traveling range
Gantry group 1
From 368mm up to 610mm =
14.5" - 24" PCB length
HS-60 / D4 "Long Board Option" 2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4
05/2007 Edition
45
2.7.2 Fiducial positions
One fiducial set for placement area 1 and 2. 2
2
2
One fiducial set in the overlap area.
Attention: Although this is possible, we do not recommend it because it can cause problems with
accuracy. 2
(Overlap area = Maximum PCB length – 2 x stopper offset) 2
2
2
2
2
2
2
2
2
2
2
2
Direction of
PCB transport
Placement area 1
Placement area 2
Overlap area
of PA1
and PA2
+
oo
o
Overlap area
of PA1
and PA2
+ +
+
Placement area 1
Placement area 2
Direction of
PCB transport
2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4 HS-60 / D4 "Long Board Option"
05/2007 Edition
46

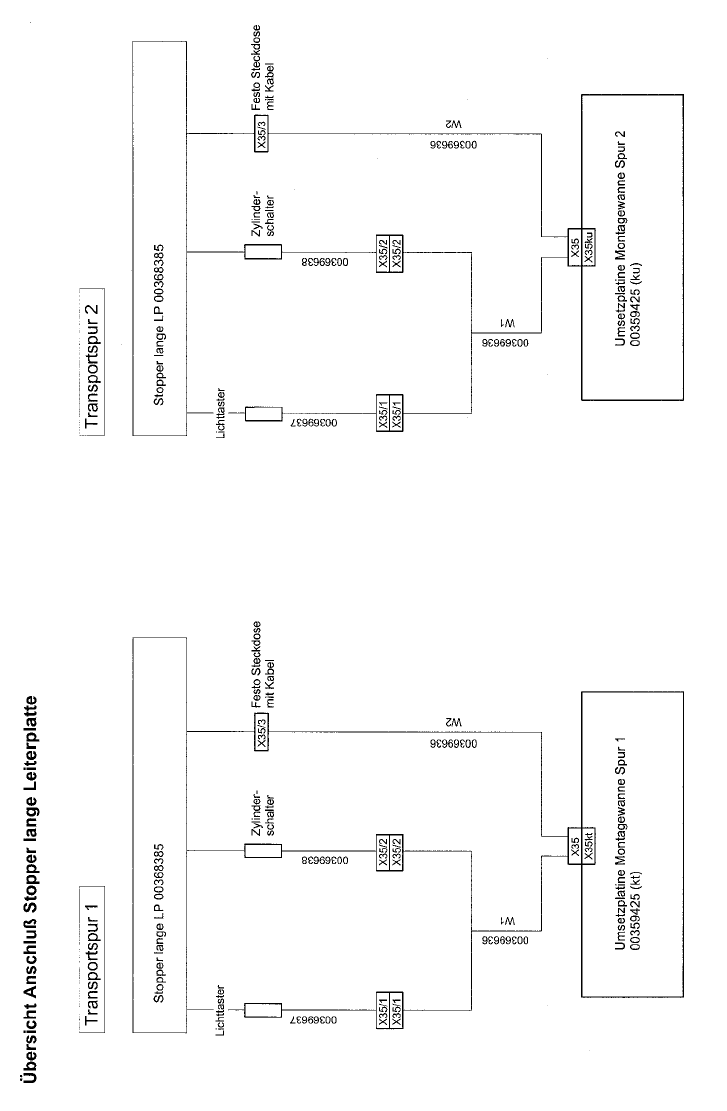

2.8 Circuit diagram
2
Fig. 2.10 - 1 Circuit diagram LBO LP HS-60 (00119427-010101LD3)
