16 5.4.3 To run in Continuous Sequence Mode 1. Foll ow steps 1 to 2 above and enter the waiting time “delay ti me” between each activation . 2. Touch the “Sequenc e Mode” icon 3. Touch the “Continuous Mode” icon 4. Touch…
14
5.4 Stored Program in Memory cell
The unit has 50 memory cells to store all dispense parameters. The controller can
activate all memory cells in sequence mode.
5.4.1 To store dispense parameters
1. Touch the forward or backward arrow to select the
desired memory cell.
2. Enter all the desired dispense parameters then touch the
“Save” icon to save the data
5.4.2 To run in Single Sequence Mode
1. Touch the “Run Method” icon to enter sequence mode setup
19
5.7 To Connect to Wi-Fi network.
1. Connect the antenna to the Wi-Fi connector located in the back of the unit
2. Touch the Setup icon to enter the setup screen
3. Touch the Wi-Fi icon to enter the network setup screen
4. Touch the “Scan” tab to scan for all available networks
5. Touch the Up and Down arrows to select the desired network
18
2. Touch the change “Password” icon
3. Enter the old password, then enter the new password
4. Touch the Check Mark icon to save
5. Touch the X icon to exit
15
2. Enter number of memory to be run in sequence (ex. 1 to 3)
3. Touch the “Sequence Mode” icon
4. Touch the Check Mark icon to save
5. Touch the X icon to exit
The screen will look similarly to the screen below:
Notes:
A. If there is no delay time entered in the setting, the operator has
to press the foot switch or touch the Run icon after each
memory cell is completed to activate the next memory cell.
B. If delay time is entered in the setting, the controller will activate
the next memory cell in sequence automatically.
16
5.4.3 To run in Continuous Sequence Mode
1. Follow steps 1 to 2 above and enter the waiting time “delay time” between
each activation.
2. Touch the “Sequence Mode” icon
3. Touch the “Continuous Mode” icon
4. Touch the Check Mark icon to save
5. Touch the X icon to exit

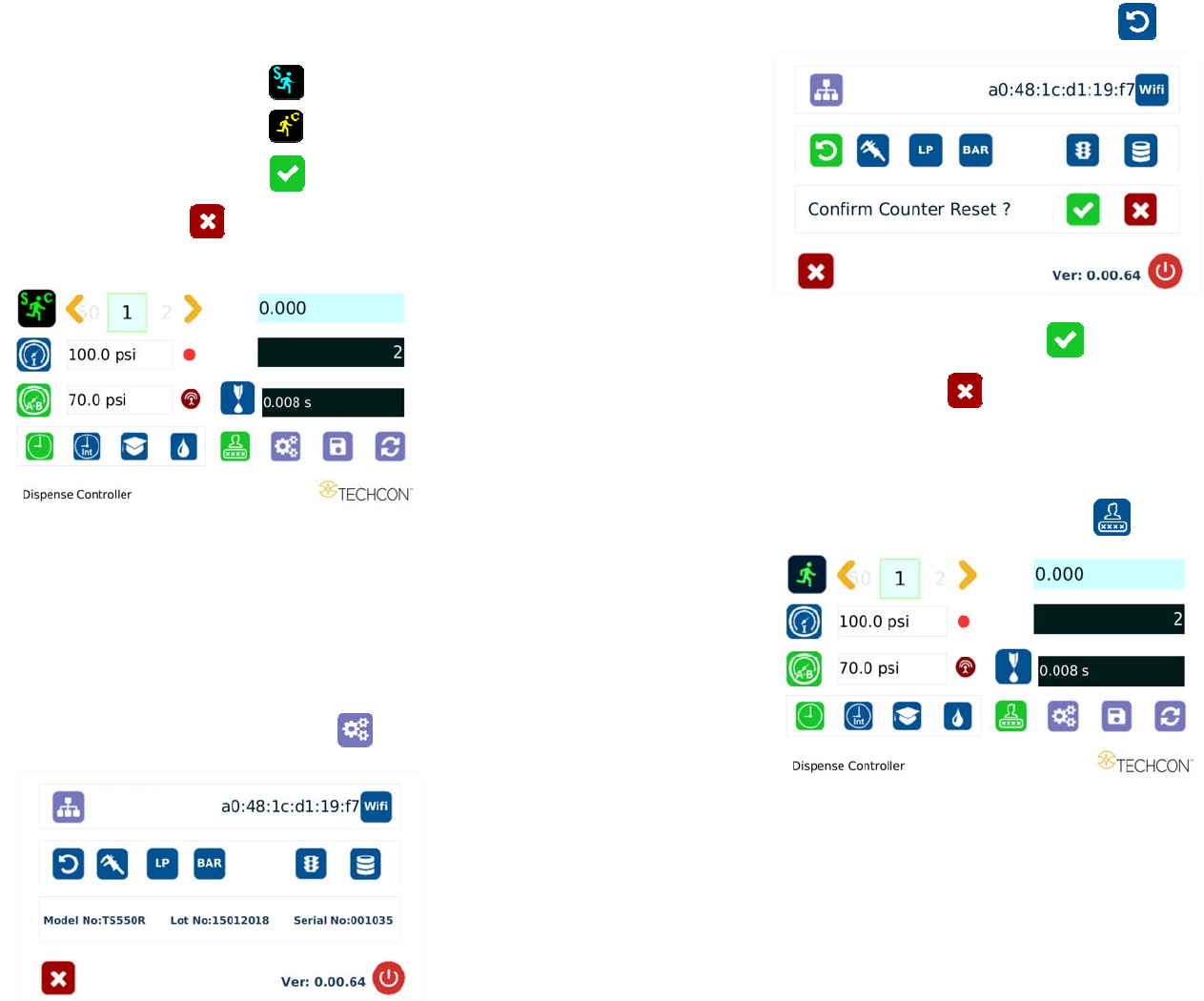

The screen will look similarly to the screen below:
Note: If the sequence mode is set to activate memory cells 1 – 3 and the
delay time is set at 5000 ms, the controller will activate memory 1 to 3
continuously with 5000 ms delay between each activation.
5.5 Cycle Counter
The cycle counter records the numbers of automatic dispense cycle being
activated. Up to 999,999 cycles can be recorded. To reset the counter, follow
steps below:
1. Touch the Setup icon to enter the setup screen
17
2. Touch the Counter Reset icon to reset the counter
3. Touch the Check Mark icon to confirm
4. Touch the X icon to exit
5.6 To Change Password
Note: The default password is “0000”. To change the password, follow the
instructions below.
1. Touch the Login icon to enter the login screen
