6.2 Making Parameters Adjustment from the websever
Go back to the webserver site and click on the “Controllers” menu.
Click on the active controller link
The controller screen will be displayed in the webserver as shown below.
The controller parameters such as pressure and dispense time can be adjusted
from the webserver.
Click on the “Edit” icon
The parameter screen will appear as shown below:
7
5.1.1 Login

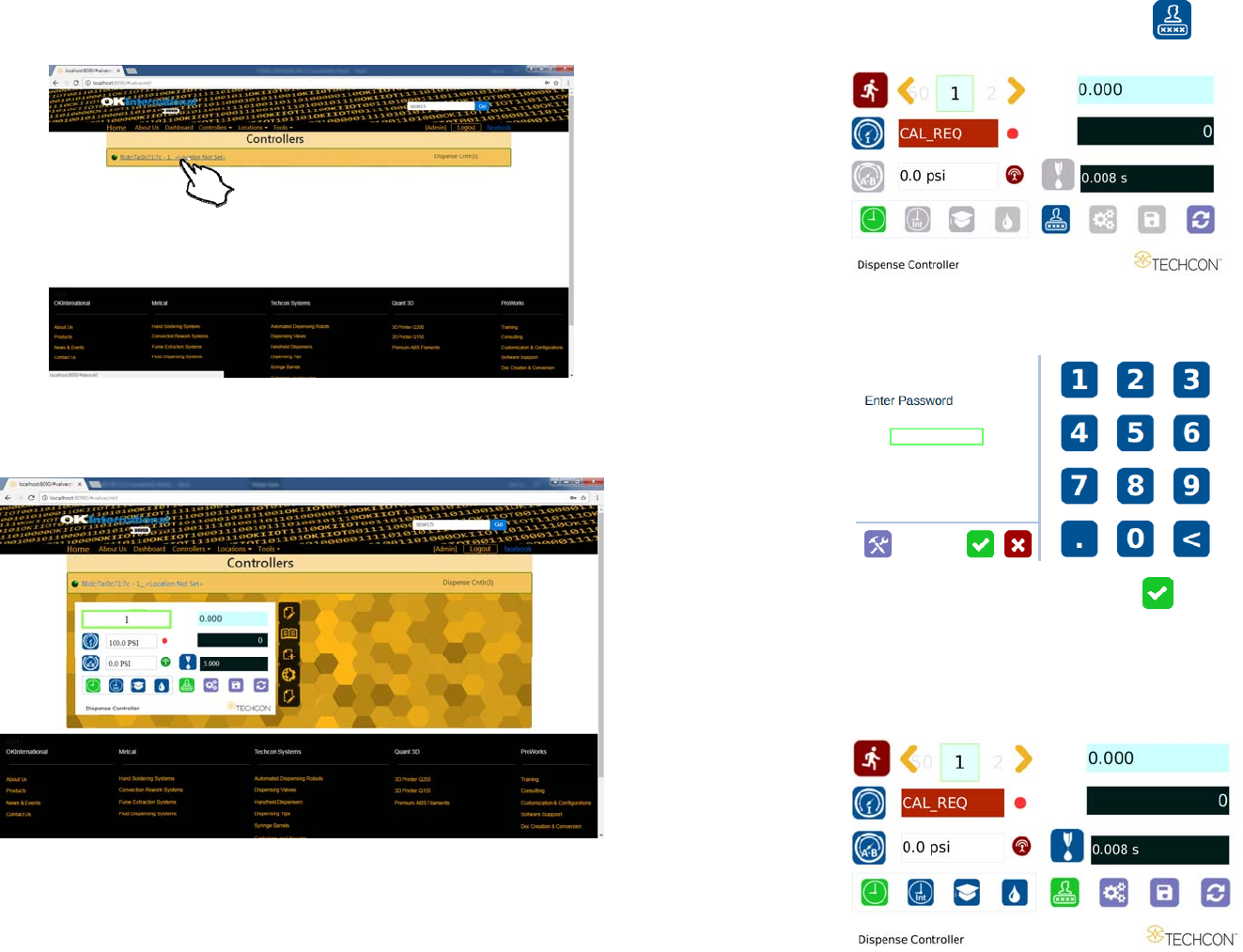

1. Touch the Login icon to enter the login screen
2. Enter “0000” in Password window
3. Touch the Check Mark icon to save and exit
5.1.2 Pressure Calibration
Note: Pressure calibration must be performed when the unit is activated for
the first time.
8

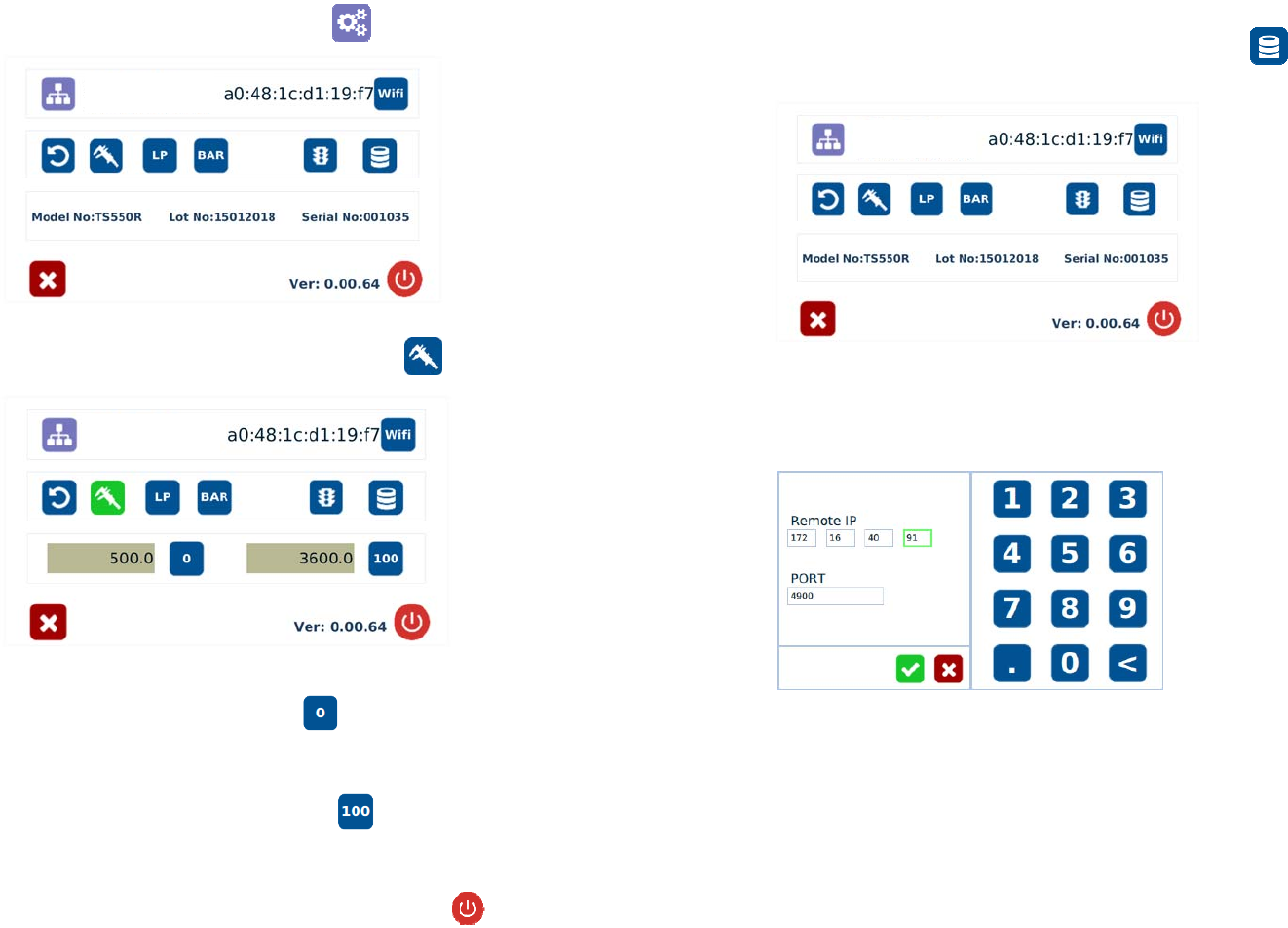

4. Touch the Setup icon to enter the setup screen
5. Touch the Calibration icon to enter the calibration screen
Note: Make sure the air pressure line is not connected to the unit at this time.
6. Touch the “0” icon to set the pressure to 0
7. Now connect the supplied air pressure line to the back of the unit and turn
up input air pressure to 100 psi
8. Touch the “100” icon to set the pressure to 100
Note: The digital values shown at “0” and “100” icons are for reference only.
The actual calibrated values will be different.
9. Touch the Reboot icon to save the settings and reboot the system
10. Wait until the system completes the rebooting sequence and the home
screen is displayed
The unit is now calibrated and ready to operate
25
18. Go to the setup screen of the controller and touch the “Remote Server”
icon
19. Enter the Server IPv4 address recorded in step #11 into Remote IP address box
20. Touch the Check Mark icon to save
21. The controller is now connected to the webserver site.
24
13. Go to any computer and open any web browser
14. Type in:
http://localhost:8090/ then press the enter button
You are now in the webserver site. The below screen will be displayed:

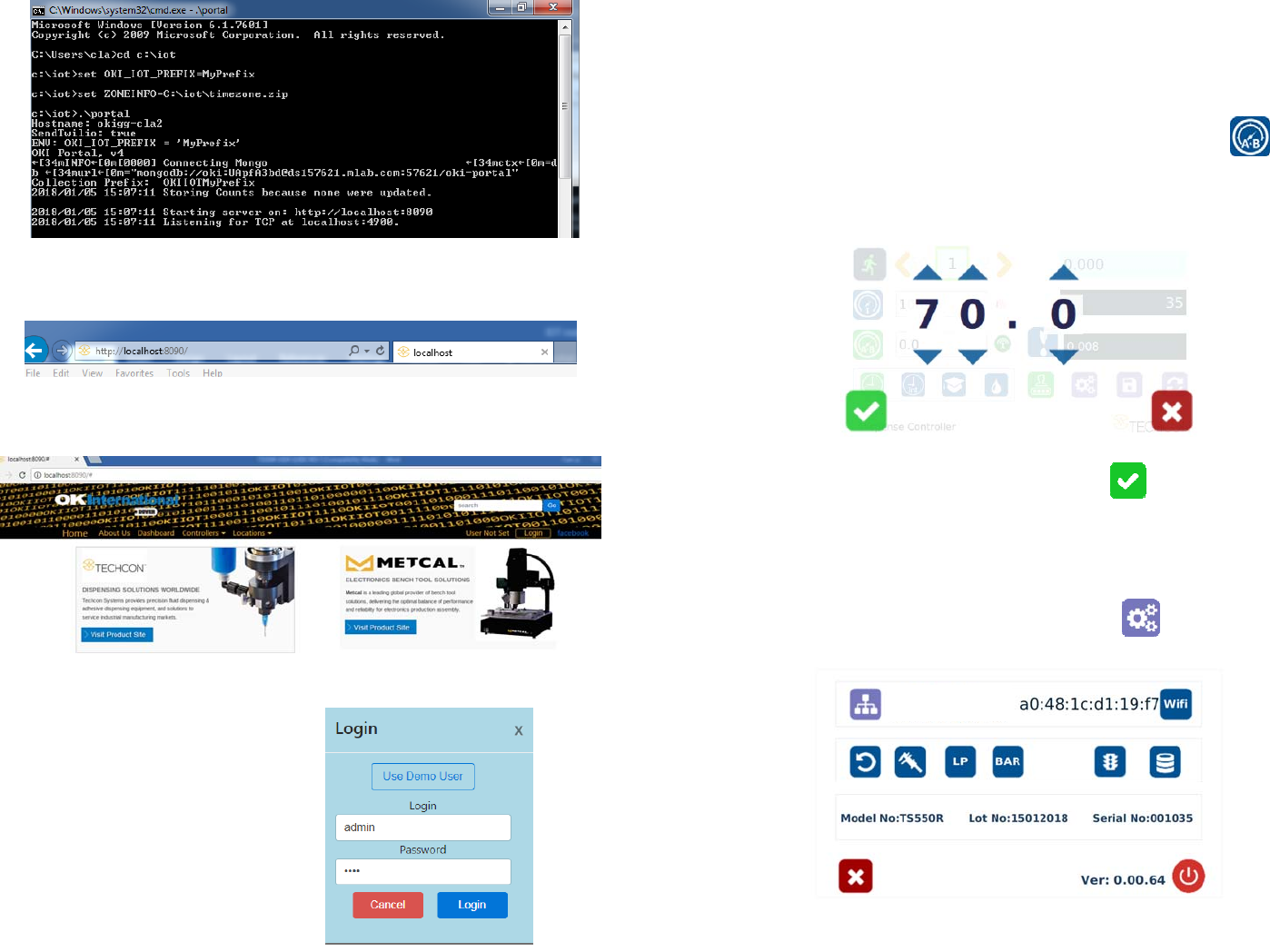

15. Click the “Login” button
16. Enter “admin” in the Login box
17. Enter “1001” in the Password box
9
5.2 DISPENSING
5.2.1 Pressure Adjustment
Note: Pressure in Port A and Port B delivers the same output pressure.
This pressure is to activate the valve. Make sure the supplied pressure is set
at least 70 psi (4.8 bar)
1. Touch the “Pressure A.B” icon to enter the pressure setup screen
2. Touch the Up and Down arrows to set valve activation pressure (70 psi
minimum)
3. Touch the Check Mark icon to save and exit
5.2.2 To Change Pressure Unit Display
Note: The default pressure unit is PSI. To change pressure unit to BAR,
follow the instructions below.
1. Touch the Setup icon to enter the setup screen
