4. Touch the Setup icon to enter the setup screen

5. Touch the Calibration icon to enter the calibration screen

Note: Make sure the air pressure line is not connected to the unit at this time.

6. Touch the “0” icon to set the pressure to 0

7. Now connect the supplied air pressure line to the back of the unit and turn

up input air pressure to 100 psi

8. Touch the “100” icon to set the pressure to 100

Note: The digital values shown at “0” and “100” icons are for reference only.

The actual calibrated values will be different.

9. Touch the Reboot icon to save the settings and reboot the system

10. Wait until the system completes the rebooting sequence and the home

screen is displayed

The unit is now calibrated and ready to operate

18. Go to the setup screen of the controller and touch the “Remote Server”

icon

19. Enter the Server IPv4 address recorded in step #11 into Remote IP address box

20. Touch the Check Mark icon to save

21. The controller is now connected to the webserver site.

13. Go to any computer and open any web browser

14. Type in:

http://localhost:8090/ then press the enter button

You are now in the webserver site. The below screen will be displayed:

15. Click the “Login” button

16. Enter “admin” in the Login box

17. Enter “1001” in the Password box

5.2 DISPENSING

5.2.1 Pressure Adjustment

Note: Pressure in Port A and Port B delivers the same output pressure.

This pressure is to activate the valve. Make sure the supplied pressure is set

at least 70 psi (4.8 bar)

1. Touch the “Pressure A.B” icon to enter the pressure setup screen

2. Touch the Up and Down arrows to set valve activation pressure (70 psi

minimum)

3. Touch the Check Mark icon to save and exit

5.2.2 To Change Pressure Unit Display

Note: The default pressure unit is PSI. To change pressure unit to BAR,

follow the instructions below.

1. Touch the Setup icon to enter the setup screen

2. Press the “BAR” icon to change pressure unit to BAR

3. Touch the X icon to save and exit

5.2.3 Manual/Purge Dispense Cycle Setting:

1. Touch the Purge icon to select the purge cycle.

The Purge icon will turn to green color.

2. Press and hold down the foot switch to activate the purge dispense cycle.

Alternately, touch and hold the Run icon on the display to activate the

purge dispense cycle.

5.2.4 Automatic Dispense Cycle Setting

1. Touch the “Timed” mode icon to set the dispense cycle in pre-set dispense

time. The icon should turn to green color.

2. Touch the Dispense icon to enter the setup screen

3. Touch the Up and Down arrows to set the desired dispense time.

Note: The minimum activation time is 0.008 second

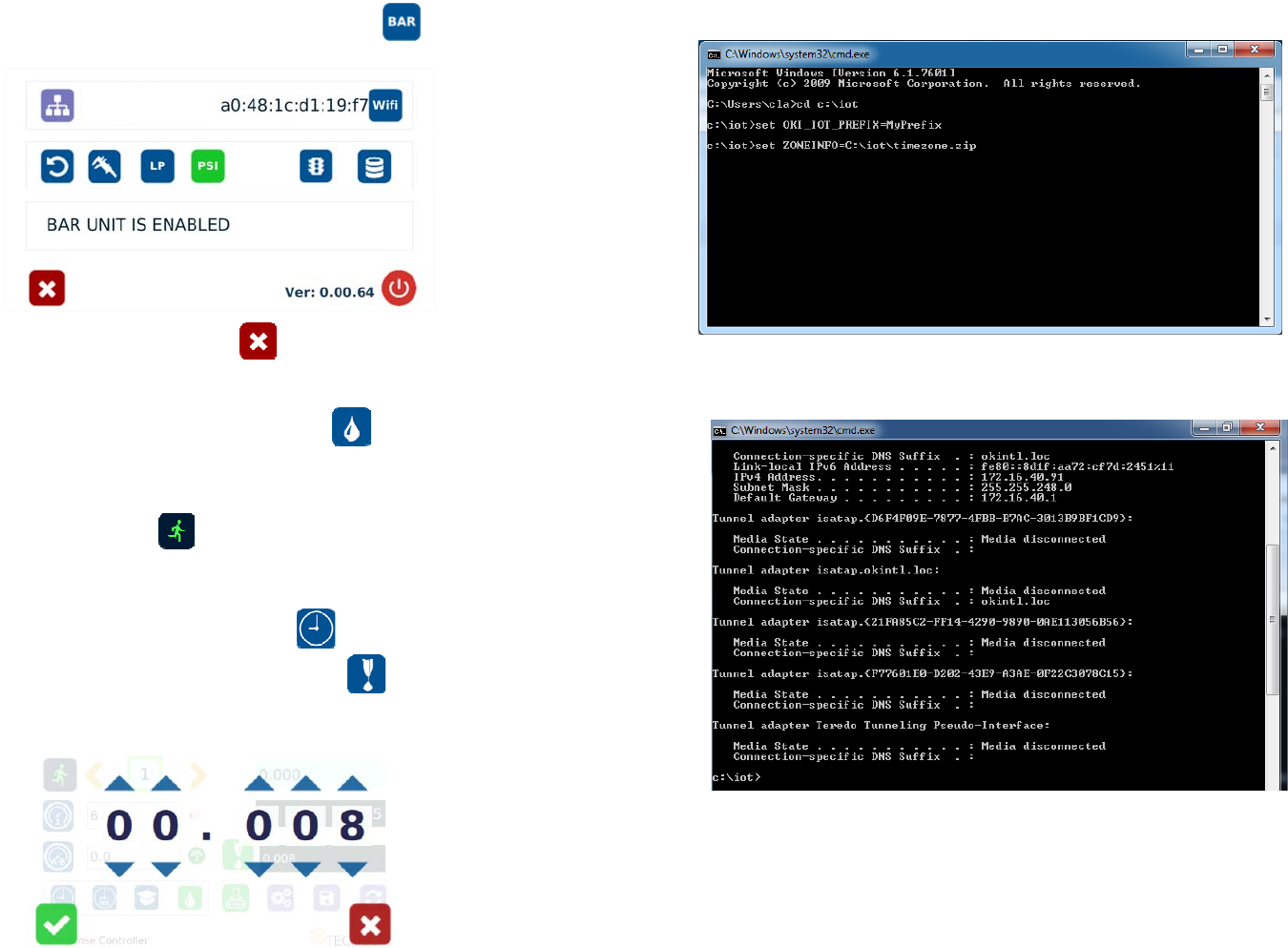

9. Type: “set ZONEINFO=C:\iot\timezone.zip” then press the “Enter” button

10. Type: “ipconfig” then press the “Enter” button

11. Record the Server IPv4 address show in the “IPv4 Address” line on the above

screen; For this example, the Server IP address is: 172.16.40.91

This address will be entered in the controller screen later.

12. Type: “.\portal” then press the Enter button
