SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50056
1/17
RAS Monitoring Function
Contents
RAS Monitoring Function.............................................................1
1. Introduction ......................................................................2
2. Summary ........................................................................2
3. Settings .........................................................................3
4. Details of operation ...............................................................9
4.1 Cause and measures of error by RAS monitoring function ...........................9
4.1.1 C/R +5V DC Power NG .....................................................9
4.1.2 C/R +12V DC Power NG ...................................................10
4.1.3 C/R +3.3V DC Power NG ..................................................10
4.1.4 C/R Box Fan1 Stop........................................................11
4.1.5 C/R Box Fan2 Stop........................................................12
4.1.6 C/R Box Fan1 & 2 Stop ....................................................13
4.1.7 C/R Temp Alarm ..........................................................13
4.1.8 SRV Fan Stop ............................................................14
4.1.9 UPS AC Power Fail .......................................................14
4.1.10 UPS AC Power Revival ...................................................15
4.1.11 UPS Battery Low.........................................................15
4.2 Flow from occurrence of power failure to shutdown ................................17
5. Limitations ......................................................................17
Revision No.
Data Change point
000 2010/02/26 Create
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50056
2/17
1. Introduction
The target model and the version are as follows.
Table 1 Target model and Target version
Item Object Remarks
Target model YS Series Machines, YG300,
YG12 Series Machines
Target version V3.11STD R1.000 or later
2. Summary
RAS(*) monitoring function is a function to monitor the power-supply voltage and the internal
temperature, etc. of the controller (C/R thereafter) and servo (SRV thereafter) that is controlling
the machine, and to notify the fault place when abnormality occurs by any chances, and to
restore the system in a short time.
*"RAS" is the initial of reliability, availability, and serviceability.
The monitoring item in RAS monitoring function is as follows.
1. C/R DC Power Fail
2. C/R Fan Alarm
3. C/R Temp Error
4. SRV Fan Alarm (Excluding YG300)
5. UPS Power Fail (When UPS is connected)
6. UPS Battery Low (When UPS is connected)
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50056
3/17
3. Settings
Start [VmSpec] screen up with [Machine] button and tap [RAS Setting] button of an upper
toolbar. (Fig 3.1)

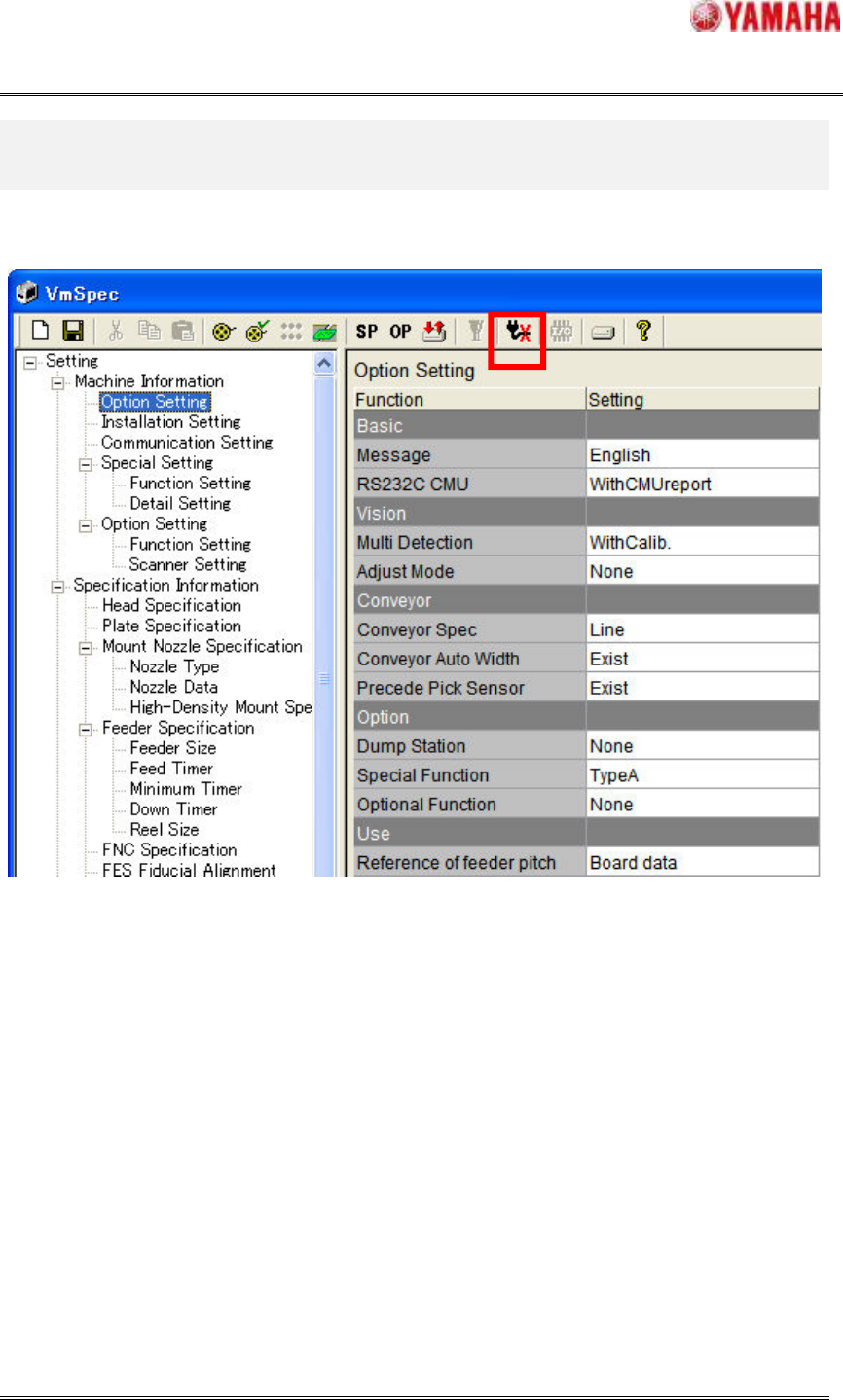

Fig 3.1 [RAS Setting] button
