4. Details of operation

4.1 Cause and measures of error by RAS monitoring function

The error messages by RAS monitoring function, and the cause and measures for the error

messages are described as follows.

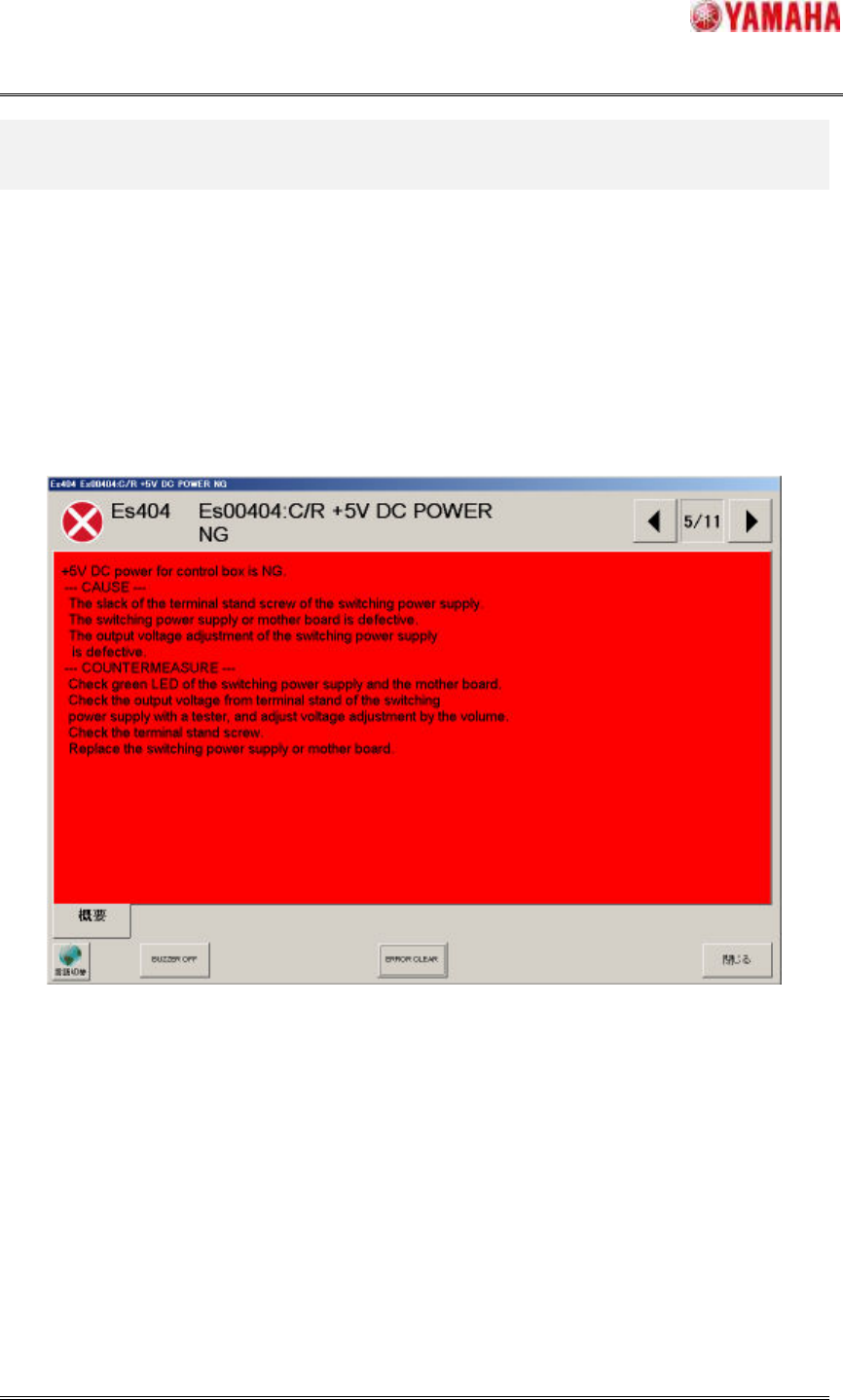

4.1.1 C/R +5V DC Power NG

When abnormality is found in the +5V DC Power in the C/R box, the following error message is

displayed.



  

SMT Software Engineering Group

IM Operations

YAMAHA MOTOR CO., LTD

MDOC-SOFT50056 

10/17

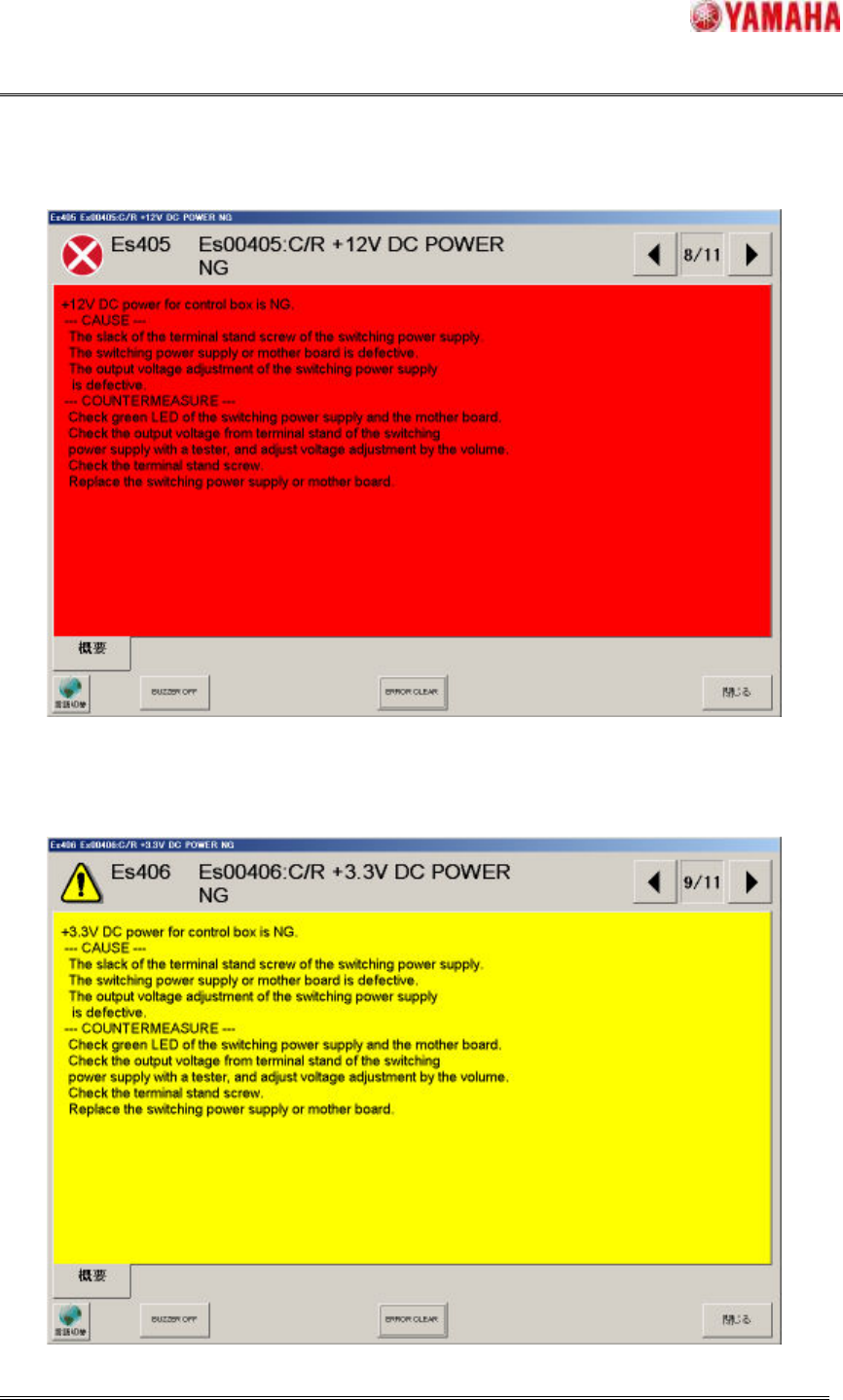

4.1.2 C/R +12V DC Power NG

When abnormality is found in the +12V DC Power in the C/R box, the following error message

is displayed.

4.1.3 C/R +3.3V DC Power NG

When abnormality is found in the +3.3V DC Power in the C/R box, the following error message is

displayed.



  

SMT Software Engineering Group

IM Operations

YAMAHA MOTOR CO., LTD

MDOC-SOFT50056 

11/17

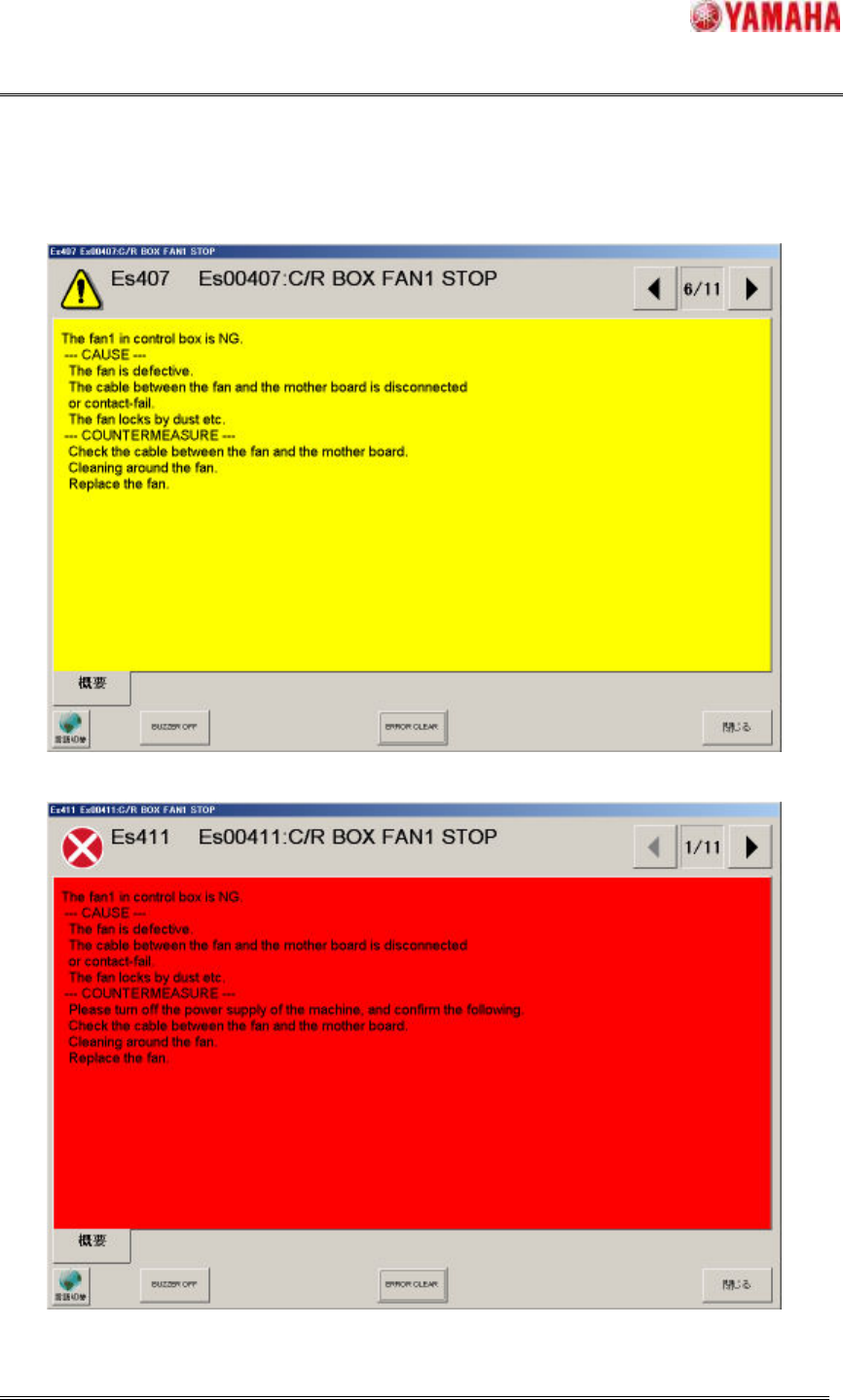

4.1.4 C/R Box Fan1 Stop

When cooling fan 1 in the C/R box stops by some causes, the following error message is

displayed.

- In YG300

- In excluding YG300
