TT4935_RAS Monitoring Function.pdf - 第14页
SMT Softwa re Engineering Group IM Operations Y AMAHA MOT OR CO., L TD MD OC-SOFT50056 14/17 4.1.8 SR V Fan Stop W hen cooling fan in the SRV stops b y some c auses, the followin g error m essage is displaye…
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50056
13/17

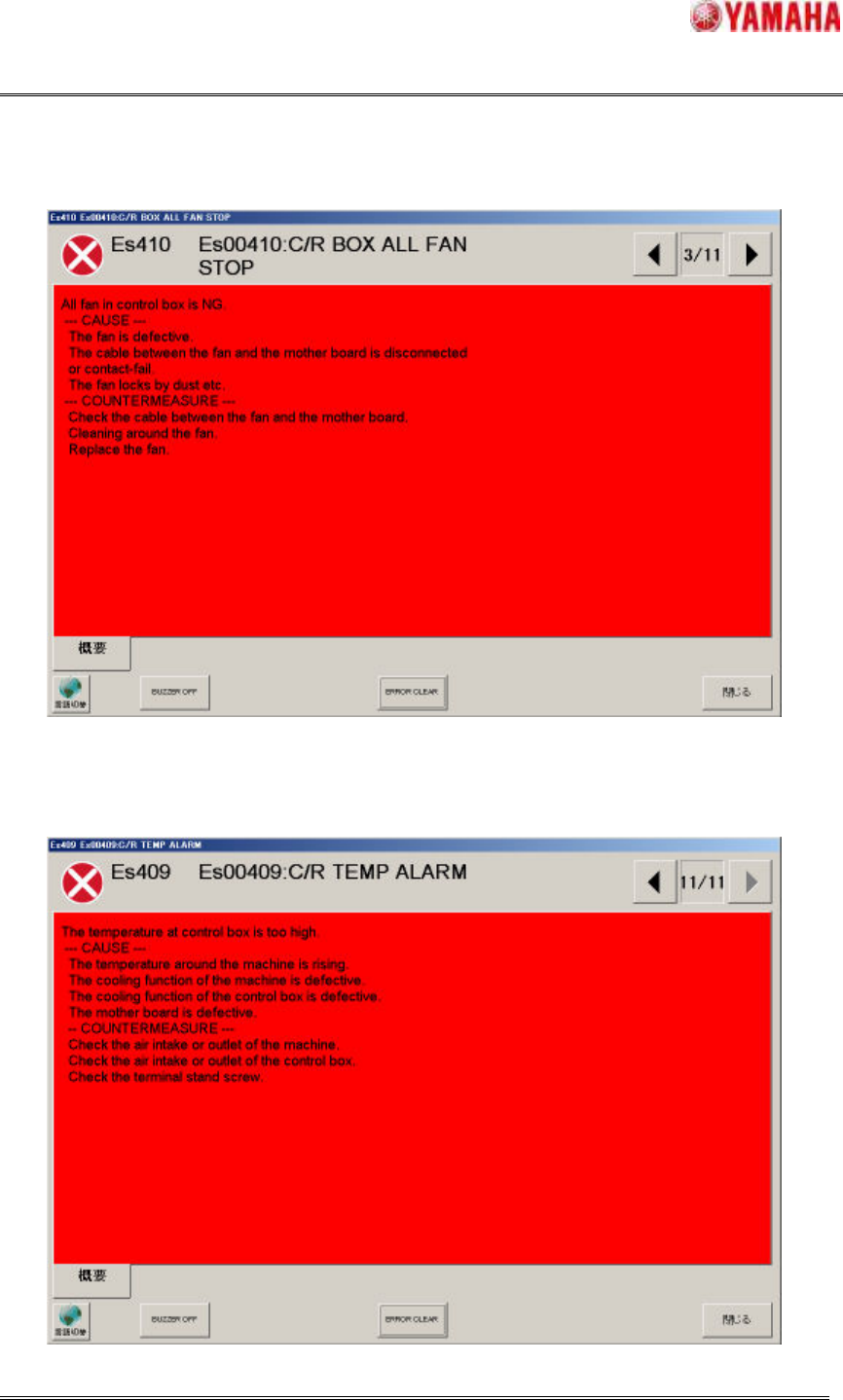

4.1.6 C/R Box Fan1 & 2 Stop
When the both cooling fan 1 and 2 of the C/R boxes stop by some causes, the following error
message is displayed.
4.1.7 C/R Temp Alarm
When the temperature in the C/R box becomes 50℃ or more, the following error message is
displayed.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50056
14/17
4.1.8 SRV Fan Stop
When cooling fan in the SRV stops by some causes, the following error message is displayed.
4.1.9 UPS AC Power Fail
When UPS detects the power failure, the following error message is displayed.
Thevalueofthecountdown
itstartsfrom60seconds.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50056
15/17
4.1.10 UPS AC Power Revival
When the supplying of the electricity to UPS restores, the following error message is
displayed.
4.1.11 UPS Battery Low
When the voltage of the battery of UPS decreases, the following error message is displayed.
