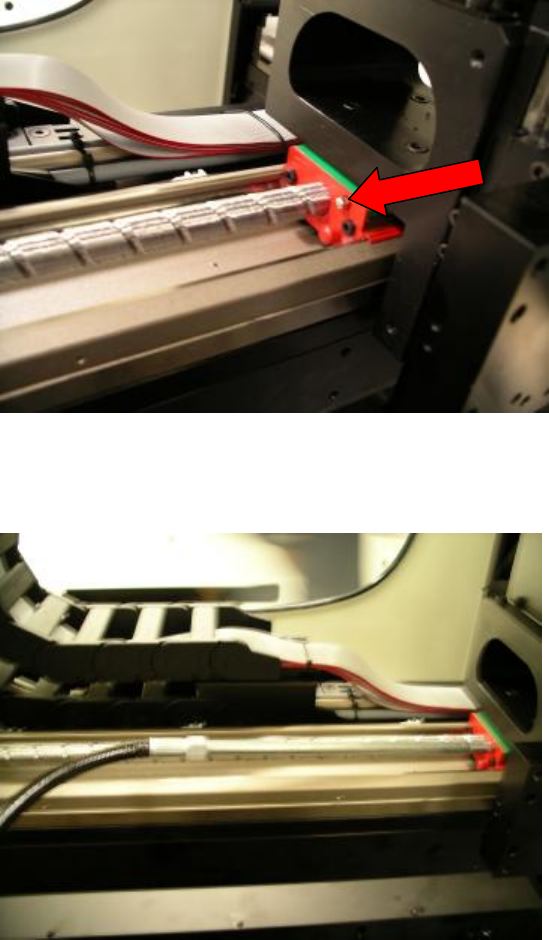

location of hexagon socket bolts

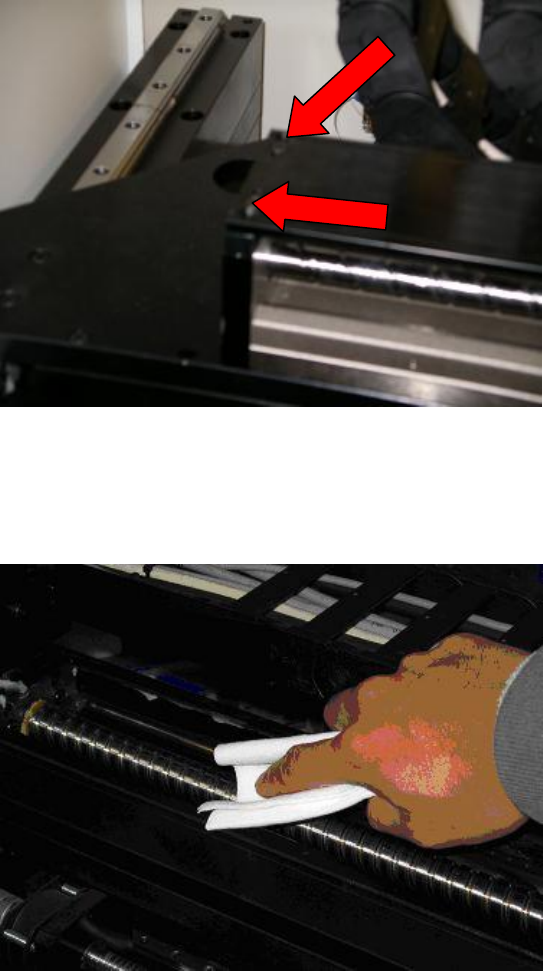

Step3. Use a clean fabric to remove original grease on the ball screw and inside the linear
module.
Step4. Use the specified big grease pump to feed specified grease from the grease nipple.
10
location of grease nipple
Step5. feed the grease
2.2 Y-AXIS Clean And Lubrication
Step1. Loosen hexagon socket bolts by the hexagon socket bolt wrench and then take off
the Y-AXIS cover.
11
Y-AXIS

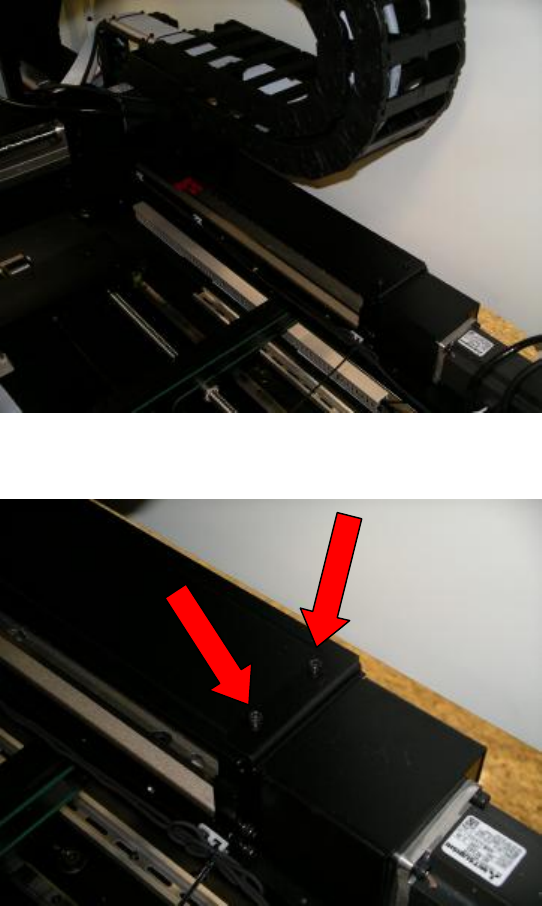

location of hexagon socket bolts
