13 l o c a t io n o f f r o n t g r e as e n i pp l e lo ca t i on o f r e a r g r ea s e ni p p l e S t e p 4 . f e ed t he g r e a s e
12

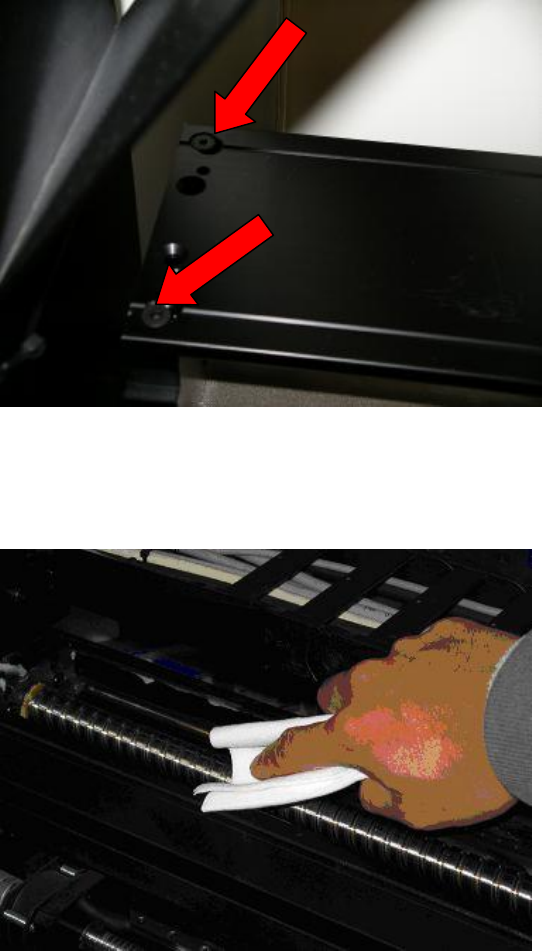

location of hexagon socket bolts
Step2. Use a clean fabric to remove original grease on the ball screw and inside the linear
module.
Step3. Use the specified small grease pump to feed specified grease from the grease
nipple.
13
location of front grease nipple
location of rear grease nipple
Step4. feed the grease
14
2.3 Z-AXIS Clean And Lubrication
Step1. Use a clean fabric to remove original grease on the ball screw and inside the linear
module.
Step2. Use the specified small grease pump to feed specified grease from the grease
nipple.
2.4 The assistance linear guideway Clean And Lubrication
Step1. Use a clean fabric to remove original grease on the assistance linear guideway
