3 Technical data for the machine User Manual SIPLACE X-Series
3.12 SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
226
CAUTION 3
The component trolleys from the SIPLACE HF may only be docked into locations at which the
component trolley docking unit for the SIPLACE HF is installed (Fig. 5.11 - 6, page 364).
The component trolleys are stand-alone modules that can be set up with feeders at an external
set-up area. This means that the production process only has to be interrupted briefly in order to
change the component trolley.
PLEASE NOTE:
At external set-up positions, you will need an external power supply for the component trolley
(see Section 3.12.6, page 231).
Fig. 3.12 - 2 SIPLACE HF component trolley with a PCB conveyor height of 950 mm
(1) Holes in the guide columns for the transport heights of 830 to 950 mm
(2) Component trolley table
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.12 SIPLACE HF component trolley
227
3.12.1 Structure
The component trolley essentially consists of the chassis, the component table for holding the
feeder modules, the communication unit, tape reel container and the waste tape container.

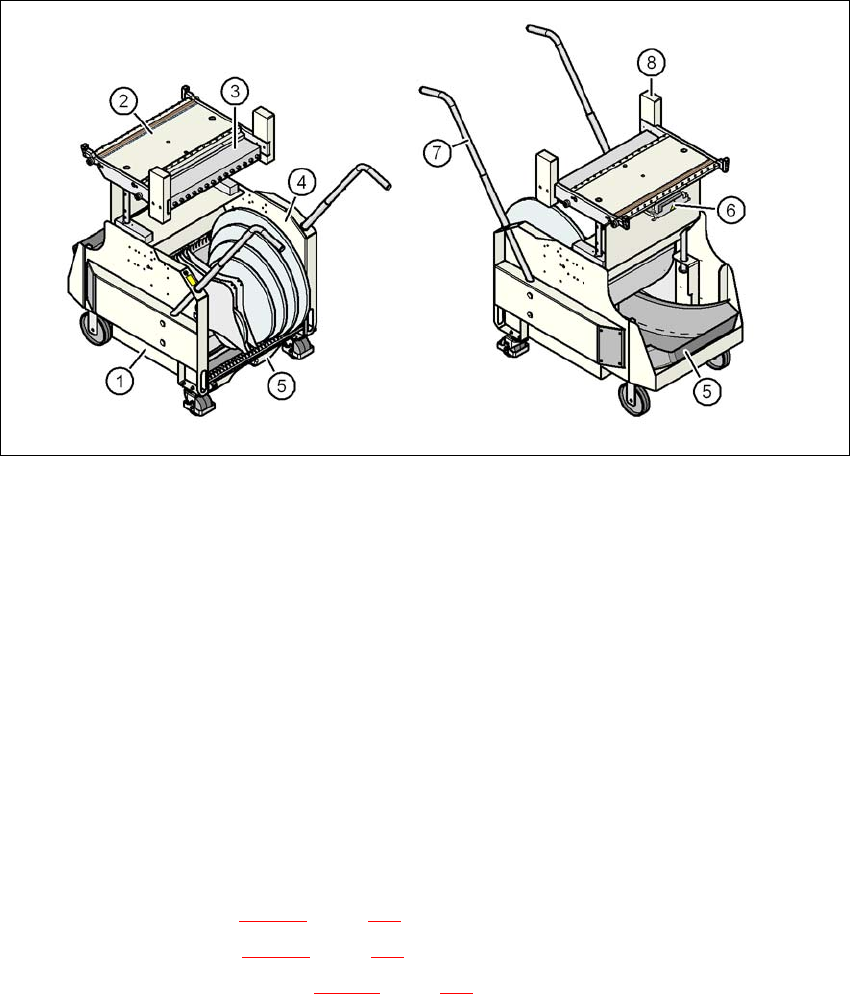

Fig. 3.12 - 3 SIPLACE HF component trolley - front and back view
(1) Chassis
(2) Component table
(3) Communication unit
(4) Tape reel container
(5) Waste tape container
(6) Interface for the main power supply, communication, the safety circuit and the compressed
air supply for the bulk case feeder module
(7) Handle
(8) Hand guard
3.12.2 Description
The chassis (item 1 in Fig. 3.12 - 3, page 227) runs smoothly and is easy to maneuver.
The handles (item 7 in Fig. 3.12 - 3
, page 227) can be folded up or down.
The component table (item 2 in Fig. 3.12 - 3
, page 227) has a capacity of up to 15 locations for 30
mm wide feeder modules. The feeder modules are mechanically centered on the table using cen-
tering pins and centering balls. The feeder modules are supplied with compressed air via a sepa-
rate compressed air bar.
3 Technical data for the machine User Manual SIPLACE X-Series
3.12 SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
228
The interface for the power module, communication and safety circuits is beneath the component
table bed (item 6 in Fig. 3.12 - 3
, page 227). The compressed air supply for bulk case feeder mod-
ules also passes via this interface.
PLEASE NOTE
All component trolleys, matrix tray changers or waffle-pack changers must be docked on the
machine in order to operate it. If they are not, the machine stays in EMERGENCY STOP status.
The placement process is interrupted.
The communication interface (item 3 in Fig. 3.12 - 3
, page 227) supplies the necessary voltages
and control signals to the feeder modules.
In the standard version, the tape reel container (item 4 in Fig. 3.12 - 3
, page 227) holds tape reels
up to 17" (432 mm). The pull-out waste tape container (item 5 in Fig. 3.12 - 3
, page 227) can be
found beneath the chassis. The cut waste tape travel down a chute into the waste tape container,
which must be regularly emptied.
CAUTION 3
Follow the safety instructions in Section 5.4.2
, page 331, when you pull the waste tape container
out of the component trolley.
3.12.3 Technical data
3
3
Length x width
Height (see Fig. 3.12 - 4
, page 229)
727 x 592 mm²
752 x 592 mm² with waste tape container
830 mm for 830 mm PCB conveyor height
900 mm for 900 mm PCB conveyor height
930 mm for 930 mm PCB conveyor height
950 mm for 950 mm PCB conveyor height
PCB conveyor height 830 mm ± 15 mm (standard)
900 mm ± 15 mm (option)
930 mm ± 15 mm (option)
950 mm ± 15 mm (SMEMA option)
Weight
Without feeder modules
With feeder module at all locations
88.9 kg
143.7 kg
Reel diameter
Standard
Maximum
Up to 432 mm (17")
483 mm (19")
Feeder module locations max. 15
