KLR-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。

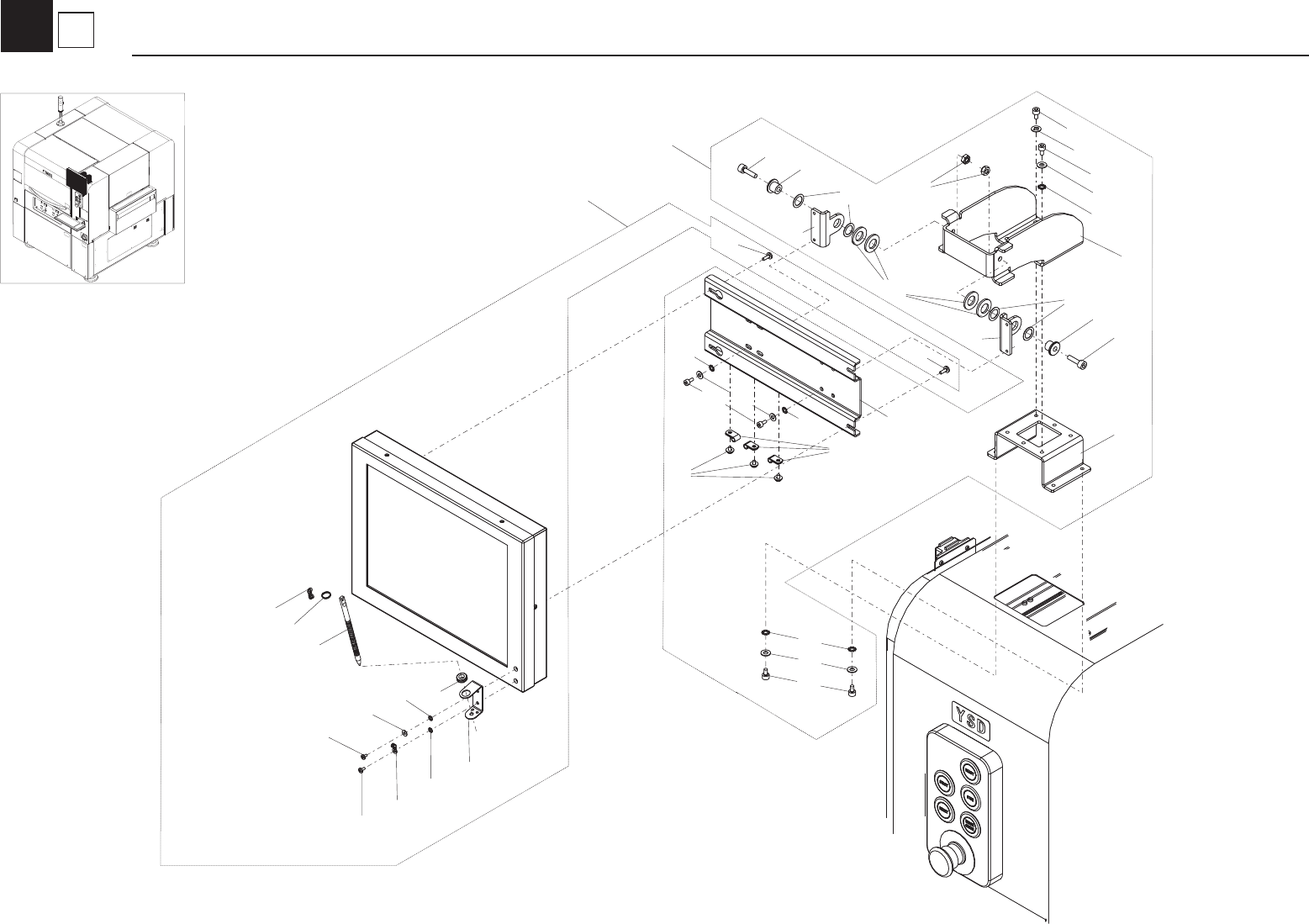

No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLR-M1390-00 LCD STAY ASSY. 1 /
Í
39
2 KLW-M5119-00 TOUCH LCD.ASSY. 1 /
40
3 KLR-M1382-00 BRACKET,LCD BASE 1 /
Í
41
4 KLR-M1384-00 BRACKET,LCD 1 /
Í
42
5 KLR-M1386-00 STAY,LCD UNIT 1 /
Í
43
6 KHW-M1383-00 BRACKET 2 2 /
Í
44
7 KHW-M1385-00 SPACER 4 /
Í
45
8 KHW-M1386-00 BUSH 2 /
Í
46
9 KV7-M1396-00 WASHER 1 /
Í
47
10 91312-04008 BOLT HEX,SOCKET HEAD 4 48
11 91312-05008 BOLT HEX,SOCKET HEAD 8 49
12 91312-06020 BOLT HEX,SOCKET HEAD 2 50
13 90172-00J040 WASHER, EXTL, TOOTHED 4 51
14 90172-00J050 WASHER, EXTL, TOOTHED 7 52
15 90990-37J001 WASHER, BELLEVILLE 4 53
16 92902-04200 WASHER,PLAIN 4 54
17 92902-05200 WASHER,PLAIN 7 55
18 95602-06100 NUT, U 2 56
19 90990-11J003 SCREW, PAN HEAD W/W 3 57
20 $NK-3N NYLON CLIP 3 /
58
21 KLW-M516A-00 PEN, TOUCH 1 /
59
22 KLF-M138J-01 BALL CHAIN 1 /
60
23 KLF-M138H-00 BRACKET 1 1 /
61
24 KLF-M138K-00 RING 1 /
62
25 KHM-M9939-00 GROMET 1 /
63
26 90172-00J030 WASHER, EXTL, TOOTHED 4 64
27 92902-03200 WASHER,PLAIN 3 65
28 98902-03005 SCREW BINDING HEAD 1 66
29 98902-03005 SCREW BINDING HEAD 1 67
30 98902-04008 SCREW BINDING HEAD 4 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
2
3
Operetion Panel
Cover
