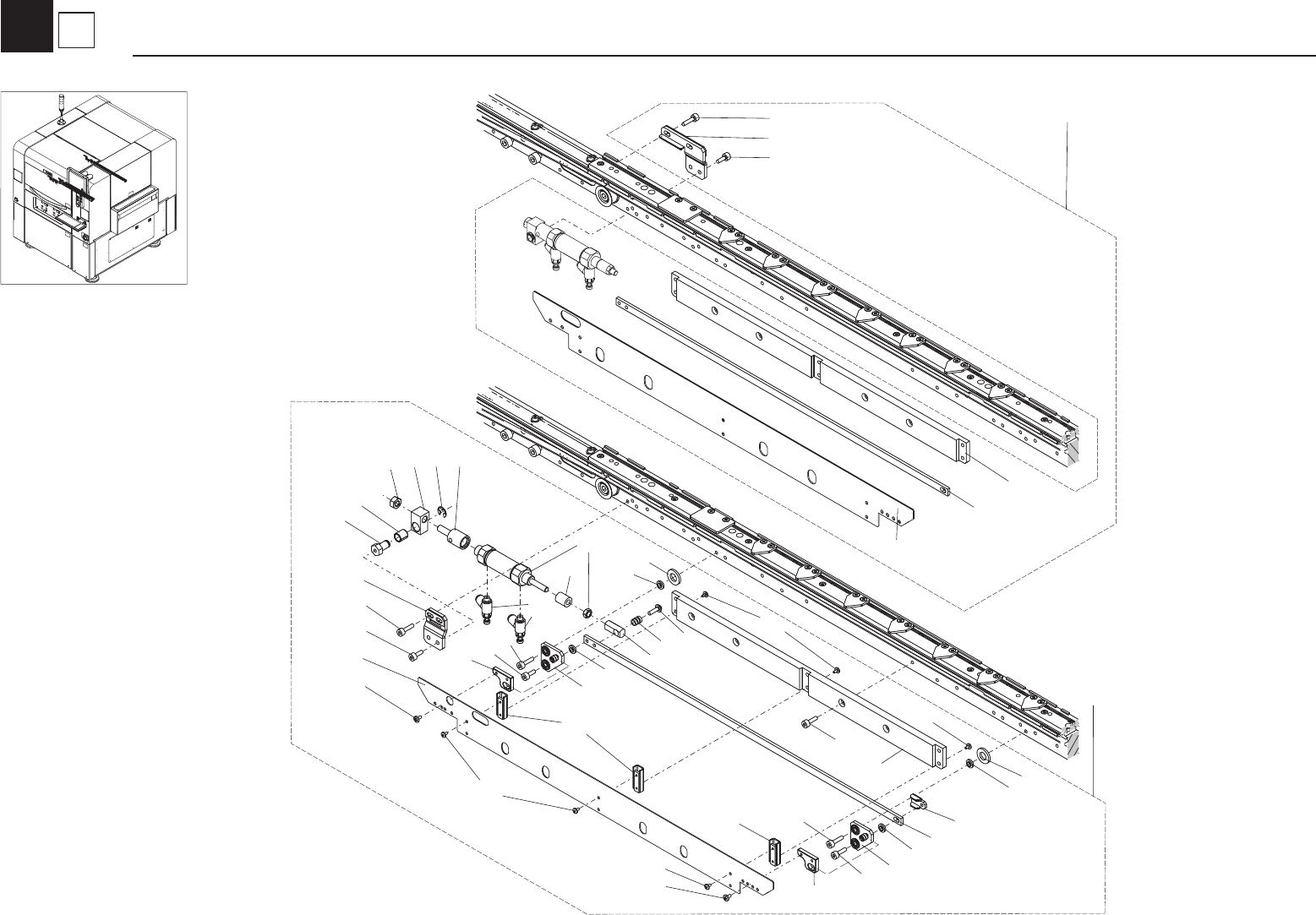

KLR-1712 2 33 28 32 3 5 6 4 23 1 31 29 1 1 16 25 15 13 27 17 7 14 29 13 31 26 12 29 31 8 18 30 33 9 26 16 24 13 20 26 21 13 12 30 31 24 8 10 26 22 19 8 4 Clamp Board 10 / 30 Conveyor Section
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLR-M9160-00 MAIN STOPPER ASSY.R 1 /
Í
39
2 KLR-M9160-10 MAIN STOPPER ASSY.L 1 /
Í
40
3 KLR-M9160-20 MAIN STOPPER ASSY.R 1 L=1460 /
Í
41
4 KLR-M9160-30 MAIN STOPPER ASSY.L 1 L=1460 /
Í
42
5 KHY-M9270-00 EXIT STOPPER ASSY.R 1 /
Í
43
6 KHY-M9270-10 EXIT STOPPER ASSY.L 1
[6]'s parts are the same as [5].
/
Í
44
7 KLR-M9280-00 SUB STOPPER ASSY.R 1 Option /
Í
45
8 KLR-M9280-10 SUB STOPPER ASSY.L 1 Option /
Í
46
9 KLR-M9281-00 BRKT.,CYLINDER 1 /
Í
47
10 KLR-M9281-10 BRKT.,CYLINDER 1 /
Í
48
11 KLR-M9281-40 BRKT.,CYLINDER 1 /
Í
49
12 KLR-M9281-50 BRKT.,CYLINDER 1 /
Í
50
13 KHW-M9282-00 STOPPER,SUB 1 /
Í
51
14 KHY-M9166-A0 CYLINDER,MAIN ASSY. 1 /
Í
52
15 KHY-M9284-00 PLATE,STOPPER 1 /
Í
53
16 KHW-M9274-A0 SPEED CONTROLLER 2 /
54
17 91312-04010 BOLT HEX,SOCKET HEAD 2 55
18 91312-05010 BOLT HEX,SOCKET HEAD 2 56
19 91312-05012 BOLT HEX,SOCKET HEAD 2 57
20 KHY-M912A-01 BRKT.,SENSOR 1 /
Í
58
21 KHY-M9271-00 PLATE,STOPPER 1 /
59
22 KHW-M9272-00 STOPPER,EXIT 1 /
60
23 KHY-M9273-00 CYLINDER 1 B
61
24 92902-04200 WASHER,PLAIN 4 /
Í
62
25 KLR-M9281-20 BRKT.,CYLINDER 1 /
63
26 KLR-M9281-30 BRKT.,CYLINDER 1 /
64
27 KHY-M9238-A0 CYLINDER,SUB ASSY. 1 B
Í
65
28 KLR-M6521-00 SENSOR, WAIT ASSY 1 B
Í
66
29 KHM-M654C-01 SENSOR,FIBER 2 1 B
Í
67
30 KLR-M6521-A0 SENS.WAIT AMP ASSY 1 B
Í
68
31 92A08-03303 SCREW SET 1 69
32 98502-03004 SCREW PAN HEAD 2 70
33 71
34 72
35 73
36 74
37 75
38 76
8
3
Main / Exit / Sub Stopper
Conveyor Section
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLR-M9260-10 CLAMP BOARD SUB ASSY 1
for PCB length max. 460mm
/
Í
39
2 KLR-M9260-30 CLAMP BOARD SUB ASSY 1
for PCB length max. 510mm
/
Í
40
3 KHW-M9167-00 BRKT.,CYL. 1 /
Í
41
4 KHY-M926F-00 JOINT , CYL. BRKT 1 /
Í
42
5 KHW-M916E-00 BUSH 1 /
Í
43
6 KHW-M916F-00 SHAFT 1 /
Í
44
7 KHY-M926H-00 JOINT, CYL. 1 /
Í
45
8 KHW-M9261-01 PLATE1,LINK 2 /
Í
46
9 KLR-M9262-10 PLATE,BASE S 1 /
Í
47
10 KLR-M9262-30 PLATE,BASE S 1
for PCB length max. 510mm
/
Í
48
11 KHY-M9263-00 CYLINDER 1 B
Í
49
12 KHW-M9264-B0 LINK B ASSY. 2 /
Í
50
13 KHW-M9265-00 SPACER 4 /
Í
51
14 KHW-M9269-00 BRKT.,CYL. 1 /
Í
52
15 KLR-M9269-00 BRKT.,CYL. 1
for PCB length max. 510mm
/
Í
53
16 KHW-M926A-00 COLLAR 2 /
Í
54
17 KHW-M926B-00 COLLAR, JOINT 1 /
Í
55
18 KLR-M926C-11 PLATE,BOARD CLAMP 1 /
Í
56
19 KLR-M926C-01 PLATE,BOARD CLAMP 1
for PCB length max. 510mm
/
Í
57
20 KHW-M926E-00 NUT 1 /
Í
58
21 KLR-M926G-00 PLATE 2,LINK 1 /
Í
59
22 KLR-M926G-11 PLATE 2,LINK 1
for PCB length max. 510mm
/
Í
60
23 KHY-M926S-A0 SPEED CONTROLLER 2 /
Í
61
24 KV7-M9266-01 GUIDE 3 A
Í
62
25 KHY-M926M-00 STOPPER, CYLINDER 1 /
Í
63
26 90169-02JB04 SCREW, BINDING HEAD 12 /
Í
64
27 92012-04012 BOLT, BOTTON HEAD 1 65
28 90440-10J050 CIRCLIP 1 66
29 91312-04010 BOLT HEX,SOCKET HEAD 3 67
30 91312-04012 BOLT HEX,SOCKET HEAD 5 68
31 91312-04014 BOLT HEX,SOCKET HEAD 5 69
32 95302-06600 NUT HEXAGON 1 70
33 98902-03005 SCREW BINDING HEAD 4 71
34 72
35 73
36 74
37 75
38 76
8
4
Clamp Board 10 / 30
Conveyor Section
