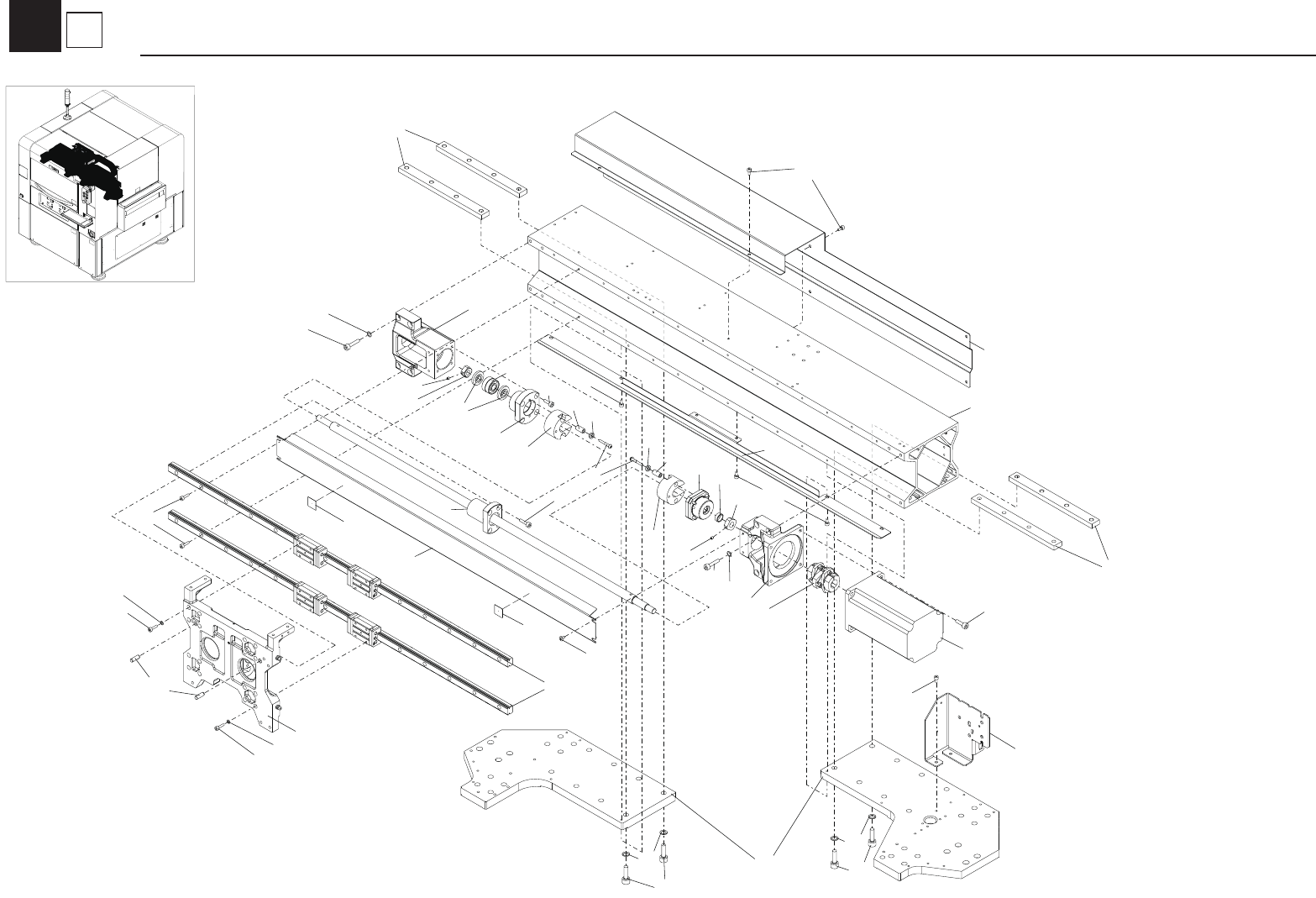

KLR-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KHY-M220D-00 TAPE, X-AXIS 2 /
Í
39
2 KHY-M2236-00 STAY,DUCT 1 /
Í
40
3 KLR-M223A-00 BRACKET,HEAD SERVO 1 /
Í
41
4 91312-04006 BOLT HEX,SOCKET HEAD 6 42
5 91312-05008 BOLT HEX,SOCKET HEAD 4 43
6 91312-05012 BOLT HEX,SOCKET HEAD 8 44
7 KHN-M220F-06 CAMERA SELECTOR 1 /
Í
45
8 KHY-M2238-01 BRACKET,L 1 /
Í
46
9 KHY-M2239-00 BRACKET,R 1 /
Í
47
10 KHY-M223F-00 STAY,R HNS. 1 /
Í
48
11 KHY-M2267-A0 GUIDE,X AXIS ASSY 1 /
Í
49
12 KHY-M220A-00 TAPE,X DUCT 1 /
Í
50
13 KHY-M220B-00 TAPE 2,X DUCT 1 /
Í
51
14 KHY-M220C-00 TAPE 3,X DUCT 1 /
Í
52
15 KHY-M2252-02 STOPPER 1 /
Í
53
16 KLR-M652X-00 SENSOR,XOT ASSY 1 B
Í
54
17 KLR-M652W-00 SENSOR,XORG ASSY 1 B
Í
55
18 KHY-M2282-00 DOG.ORIGIN 1 /
Í
56
19 KHY-M2283-00 DOG,SECOND LIMIT 2 /
Í
57
20 KHY-M2284-00 BRACKET,SENSOR 1 /
Í
58
21 KHY-M221A-A0 COVER DUCT ASSY. 1 /
Í
59
22 KHY-M2269-00 BRACKET 2,TAPE 1 /
Í
60
23 KHY-M2268-00 BRACKET 1, TAPE 1 /
Í
61
24 KGT-M2266-10 PLATE, NUT 1 /
Í
62
25 KLR-M2266-00 PLATE, JOINT 1 /
Í
63
26 $UL8 JOINT 3 /
64
27 $UR8-6 JOINT 3 /
65
28 $US4 JOINT 3 /
Í
66
29 $US8 JOINT 3 /
Í
67
30 90990-01J032 BOLT HEX,SOCKET HEAD 8 68
31 97602-03108
SCREW PAN HEAD W/WASHER
4 69
32 91312-04008 BOLT HEX,SOCKET HEAD 13 70
33 91312-04020 BOLT HEX,SOCKET HEAD 3 71
34 91312-05018 BOLT HEX,SOCKET HEAD 4 72
35 98902-03006 SCREW BINDING HEAD 4 73
36 90990-11J003 SCREW, PAN HEAD W/W 6 74
37 75
38 76
3
1
X-axis Peripheral
X-axis Section
