KLR-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLR-M7101-00 PLATE,HEAD 1 /
Í
39
2 KLR-M7102-00 RIB 1 1 /
Í
40
3 KLR-M7103-00 RIB 2 1 /
Í
41
4 KLR-M7104-00 PLATE, HARNESS 1 /
Í
42
5 KLR-M7105-00 RIB 2 1 /
Í
43
6 KLR-M7106-00 STAY, HANDLE 1 /
Í
44
7 KGS-M2256-00 GRIP 1 /
Í
45
8 99480-04008 PIN,PARALLEL 10 46
9 99480-05010 PIN,PARALLEL 2 47
10 $NK-2N NYLON CLIP 4 /
48
11 90990-11J003 SCREW, PAN HEAD W/W 4 49
12 91312-04008 BOLT HEX,SOCKET HEAD 4 50
13 91312-04012 BOLT HEX,SOCKET HEAD 6 51
14 91312-04025 BOLT HEX,SOCKET HEAD 9 52
15 91312-05016 BOLT HEX,SOCKET HEAD 4 53
16 KLR-M7120-00 Z1 AXIS ASSY. 1 B
Í
54
17 KLR-M7120-10 Z2 AXIS ASSY. 1 B
Í
55
18 KLR-M7120-20 Z3 AXIS ASSY. 1 <OPTION> B
Í
56
19 KU4-M7114-00 NUT,NOZZLE 3 /
57
20 KLR-M7130-10 R AXIS ASSY. 1 B
Í
58
21 KLR-M7650-00 FID.CAM.ASSY. 1 B
Í
59
22 KLR-M7186-A0 SENSOR AMP ASSY 3 <OPTION> B
Í
60
23 KLR-M7140-00 LASER UNIT ASSY. 1 <OPTION> B
Í
61
24 91312-06016 BOLT HEX,SOCKET HEAD 4 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
6
1

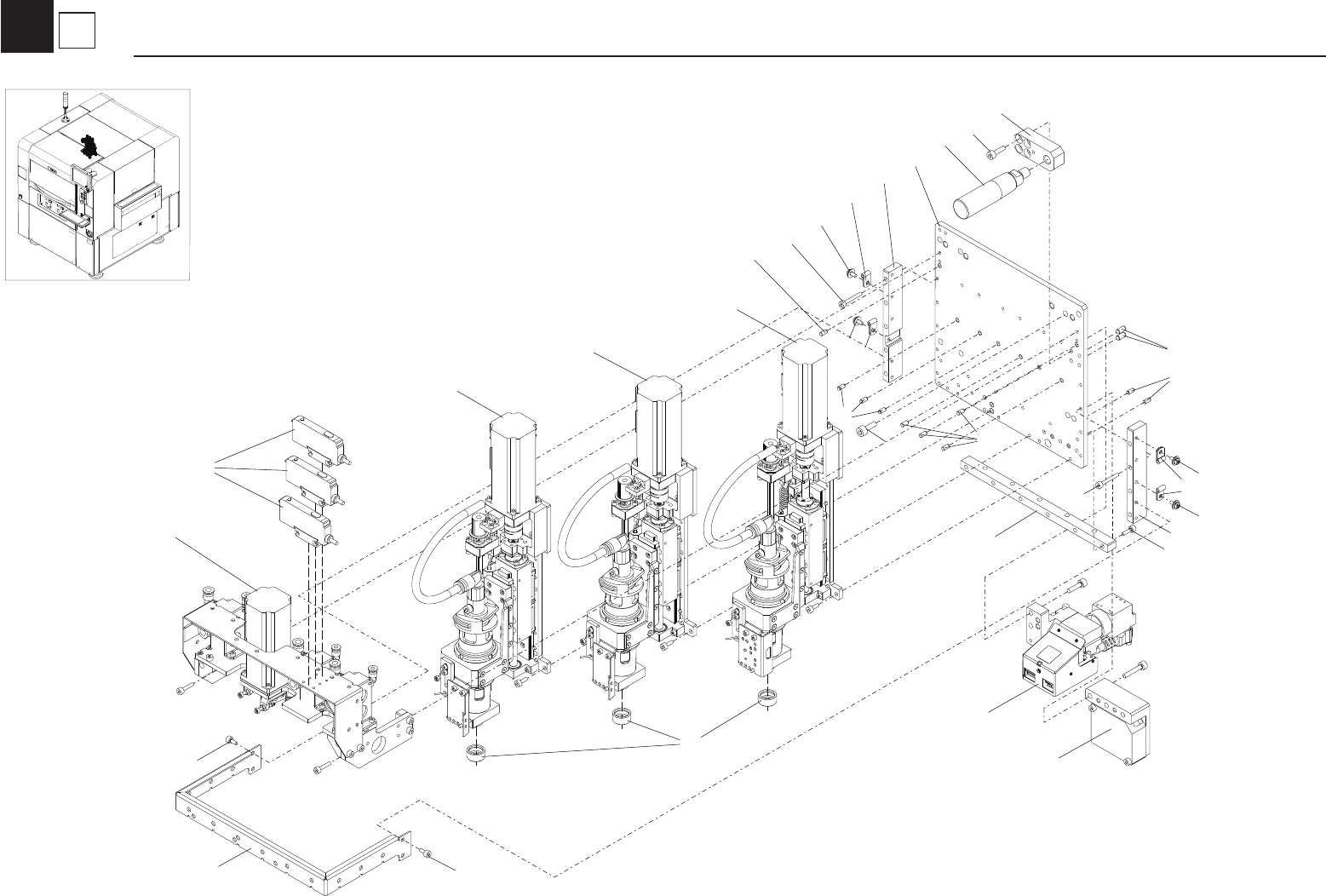

Head Overview

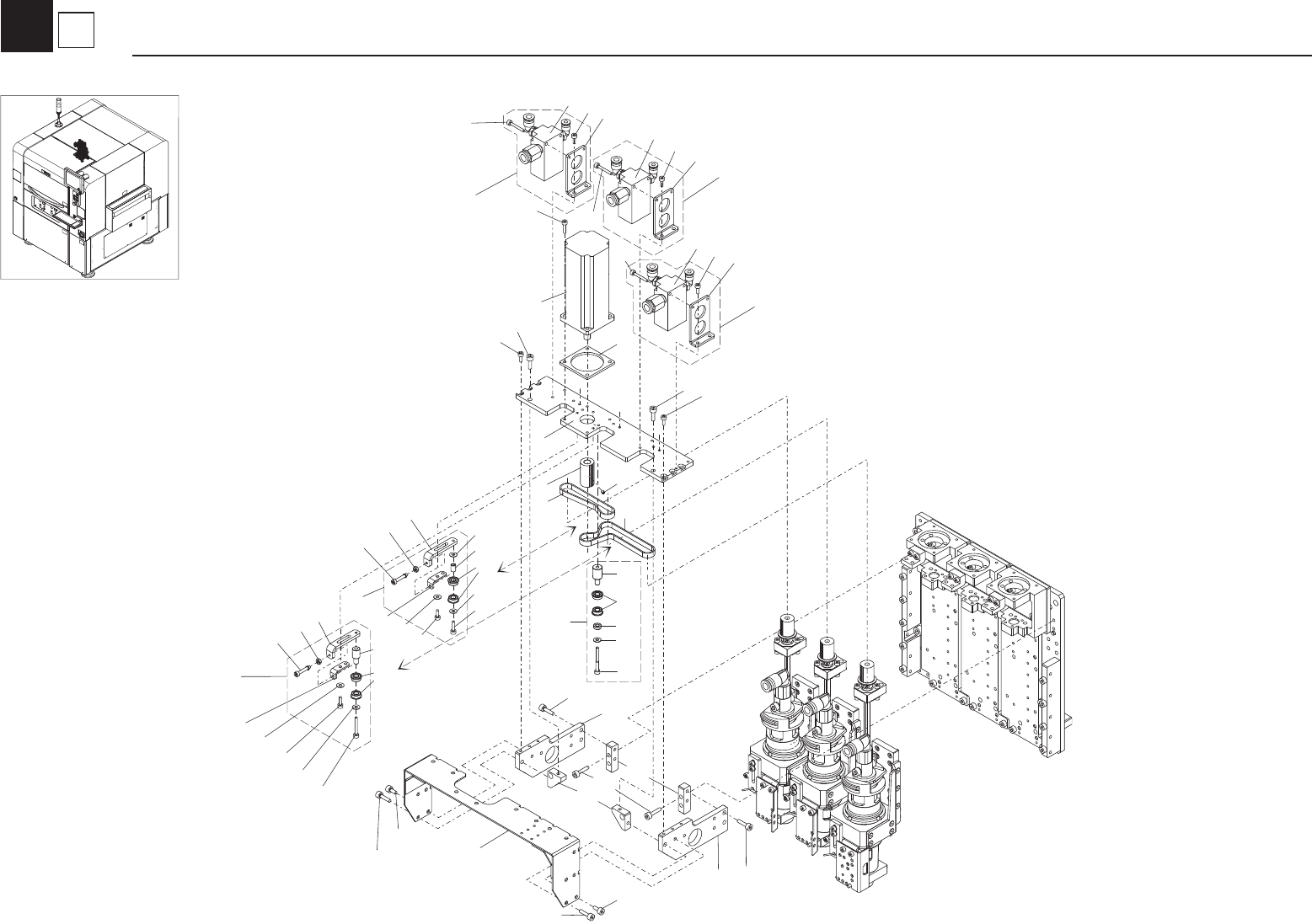

Head Section
