KLR-1712 9 7 18 1 8 41 4 13 19 24 4 2 17 24 23 21 26 23 32 14 10 31 36 27 37 5 15 28 39 8 38 11 40 35 3 15 25 6 34 2 20 22 12 29 33 16 30 18 34 10 2 DST sub assy Dot Station
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90990-01J038 BOLT HEX,SOCKET HEAD 2 39
2 90990-01J098 BOLT HEX,SOCKET HEAD 1 40
3 90990-41J097 COLLAR 4 41
4 90990-41J104 COLLAR 2 42
5 90990-41J158 COLLAR 1 43
6 91312-03014 BOLT HEX,SOCKET HEAD 1 44
7 91312-04012 BOLT HEX,SOCKET HEAD 4 45
8 91312-05012 BOLT HEX,SOCKET HEAD 4 46
9 91312-06016 BOLT HEX,SOCKET HEAD 4 47
10 95602-10100 NUT, U 4 48
11 KGA-M921T-00 BOLT 4 /
49
12 KLR-M9411-00 FRAME, BASE 1 /
50
13 KLR-M9412-00 PLATE, BASE 1 /
51
14 KLR-M9413-00 STOPPER 3 /
52
15 KLR-M9414-00 PLATE, KNOB 1 /
53
16 KLR-M9416-00 SPRING 1 /
54
17 KLR-M9417-00 PLATE, DISPENSE 1 /
55
18 KLR-M9420-00 PLATE, SPACER 2 /
56
19 KLR-M9421-00 PLATE, COVER 1 /
57
20 99480-04008 PIN,PARALLEL 2 /
58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
10
1
Dot Plate
Dot Station
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90172-00J030 WASHER, EXTL, TOOTHED 2 39 91312-05010 BOLT HEX,SOCKET HEAD 4
2 90440-01J040 CIRCLIP 2 40 KHW-M8582-400 VALVE 5 B
3 90990-01J038 BOLT HEX,SOCKET HEAD 1 41 KHY-M1123-000 PLATE 23 1 /
Í
4 90990-12J001 SCREW, BIN. HEAD W/W 8 42
5 90990-28J042 WASHER,PLAIN 1 43
6 90990-28J118 WASHER,PLAIN 1 44
7 92902-03200 WASHER,PLAIN 2 45
8 92902-04200 WASHER,PLAIN 2 46
9 98902-03008 SCREW BINDING HEAD 2 47
10 KGE-M9338-00 RING,GUIDE 1 /
48
11 KK3-M9309-00 ROLLER 1 E
49
12 KK3-M9310-00 SPRING 1 A
50
13 KK3-M9312-01 GEAR 2 1 A
51
14 KK3-M9315-00 SHAFT 2 1 /
52
15 KK3-M9324-00 FLANGE 2 /
53
16 KK3-M9325-00 ROLLER 1
/
54
17 KK3-M9329-00 BELT 1 E
55
18 KK3-M9331-00 BRG. 2 A
56
19 KLR-M9302-00 CASE 1 /
57
20 KLR-M9320-00 SHAFT 1 1 /
58
21 KLR-M9321-00 SHAFT 3 1 /
59
22 KLR-M9322-00 SHAFT 4 1 /
60
23 KLR-M9323-00 SHAFT 5 2 /
61
24 KLR-M9337-00 GUIDE,PAPER 3 /
62
25 KLR-M9341-00 REEL 1 1 /
63
26 KLR-M9342-00 REEL 2 1 /
64
27 KLR-M9343-00 REEL 3 1
/
65
28 KLR-M9344-00 SPRING 1 A
66
29 KLR-M9345-00 STAY,ROLLER 1 /
Í
67
30 KLR-M9346-00 BUSH 1 A
Í
68
31 KLR-M9347-00 GEAR 3 1 A
69
32 KLR-M9348-00 PLATE,GUIDE 1 /
70
33 KM4-M9330-01 ROLL PAPER 1 E
71
34 98902-04006 SCREW BINDING HEAD 2 72
35 $KM-11 MUFFLER 1 73
36 $SL8-01 JOINT 1 74
37 $UP4 JOINT 1 75
38 91312-03030 BOLT HEX,SOCKET HEAD 4 76
10
2

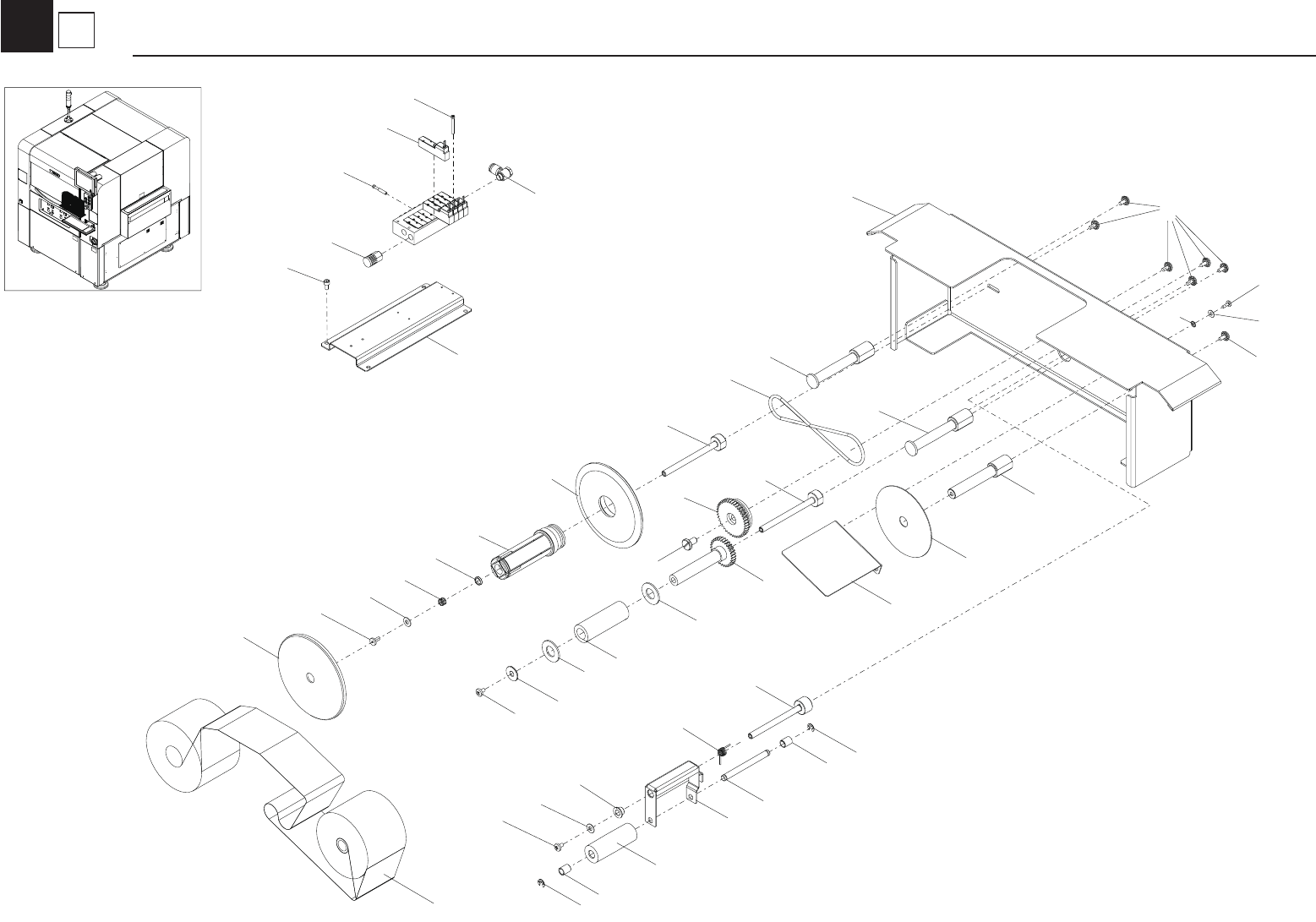

DST sub assy
Dot Station
