KLR-1712 NOZZLE 2 SHOT 1608 T ype 11 1 NOZZLE 2 SHOT 2125 T ype 112 NOZZLE 2 SHOT LARGE T ype 113 NOZZLE 1 SHOT 0.4 T ype 114 NOZZLE 1 SHOT 0.8 T ype 115 NOZZLE 1 SHOT 1.5 T ype 116 NOZZLE 2 SHOT 1608(P0.8) T ype 11A NOZ…

100%1 / 65
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLR-M7131-01 PLATE 1, STAND 1 /
Í
39 92902-03200 WASHER, PLAIN 1
2 KLR-M7132-00 PLATE 2, STAND 2 /
Í
40
3 KLR-M7133-00 SPACER, MOTOR 1 /
Í
41
4 KLR-M7134-00 PULLEY, R MOTOR 1 /
Í
42
5 KLR-M713A-01 BELT 1, R AXIS 1
A
Í
43
6 KLR-M713B-00 BELT 2, R AXIS 1 A
Í
44
7 KLR-M713D-00 VALVE ASSY. 3 B
Í
45
8 KLR-M713H-00 BRACKET, VALVE 3 /
Í
46
9 KLR-M713G-A0 VALVE ASSY. 3 B
Í
47
10 91312-03020 BOLT HEX,SOCKET HEAD 6 48
11 91312-03008 BOLT HEX,SOCKET HEAD 14 49
12 KLR-M713E-00 RIB 2 /
Í
50
13 KLR-M713K-00 TENSIONER 1 /
Í
51
14 KLR-M713L-00 TENSIONER 1 /
Í
52
15 KLR-M7136-00 BRACKET 1, TENSIONER 2 /
Í
53
16 KLR-M7137-01 BRACKET 2, TENSIONER 2 /
Í
54
17 KLR-M7138-00 BOLT, TENSIONER 2 /
Í
55
18 KKD-M7135-00 SHAFT 1,TENSION 1 /
Í
56
19 92902-03200 WASHER,PLAIN 7 57
20 95302-03600 NUT HEXAGON 2 58
21 90933-03J105 BEARING 4 59
22 91312-03012 BOLT HEX,SOCKET HEAD 5 60
23 KLR-M7139-00 SHAFT 2, IDLER 1 /
Í
61
24 91312-03010 BOLT HEX,SOCKET HEAD 2 62
25 91312-03022 BOLT HEX,SOCKET HEAD 1 63
26 KLR-M713M-00 PLATE, HNS 1 /
Í
64
27 KLR-M713S-00 BLOCK, STAND 2 /
Í
65
28 90K2H-034811 AC SERVO MOTOR R1 1 B
Í
66
29 91312-04008 BOLT HEX,SOCKET HEAD 2 67
30 91312-04012 BOLT HEX,SOCKET HEAD 2 68
31 91312-04014 BOLT HEX,SOCKET HEAD 6 69
32 91312-04016 BOLT HEX,SOCKET HEAD 4 70
33 92A08-03003 SCREW,SET 2 71
34 KLR-M713T-00 R IDLER ASSY. 1 /
Í
72
35 KLR-M7135-00 SHAFT,IDLER 1 1 /
Í
73
36 90933-03J105 BEARING 2 74
37 90990-28J088 WASHER,PLAIN 1 75
38 91312-03030 BOLT,HEX.SOCKET HEAD 1 76
6
2
R-Axis
Head Section
KLR-1712

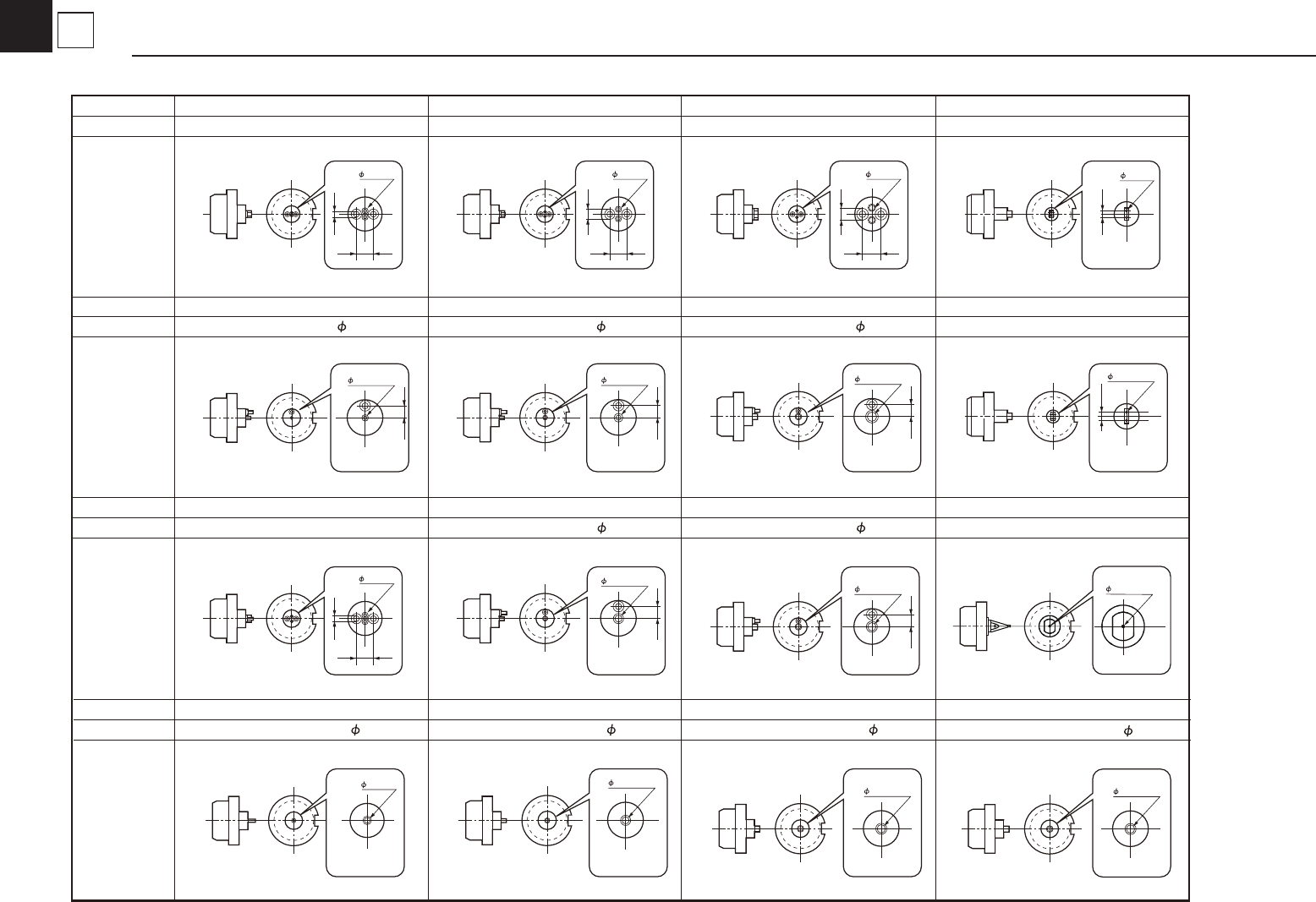

NOZZLE 2 SHOT 1608
Type 111
NOZZLE 2 SHOT 2125
Type 112
NOZZLE 2 SHOT LARGE
Type 113
NOZZLE 1 SHOT 0.4
Type 114
NOZZLE 1 SHOT 0.8
Type 115
NOZZLE 1 SHOT 1.5
Type 116
NOZZLE 2 SHOT 1608(P0.8)
Type 11A
NOZZLE 1 SHOT 1.0
Type 11B
NOZZLE 1 SHOT 1.3
Type 11C
Nozzle Type
Name
Size
Nozzle Type
Name
Size
Nozzle Type
Name
Size
NOZZLE LBA (1608 A.P)
Type LBA
NOZZLE LCA (2012 A.P)
Type LCA
0.4
2.4
0.9
0.5
2.4
1.3
0.9
3.2
1.8
0.4
0.9
0.4
1.6
0.8
1.6
1.5
1.8
0.4
1.2
0.4
2.4
0.8
1.0
1.6
1.3
1.8
0.3
Type 117
NOZZLE HN04
NOZZLE ,11D GLUE 0.8
Type 11D Type 11E
NOZZLE ,11F GLUE 1.3
Type 11F
Nozzle Type
Name
Size
0.8
1.0
1.3
Type 11G
NOZZLE ,11G GLUE 1.5
NOZZLE ,11E GLUE 1.0
1.5
7
1
Nozzle
Nozzle
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KV6-M7113-12X 2 SHOT 1608(P=0.9) 1 Type111 E
39
2 KV6-M7113-23X 2 SHOT 2012 1 Type112 E
40
3 KV6-M7113-32X NOZZLE 2SHOT LARGE 1 Type113 E
41
4 KV6-M7113-42X NOZZLE 1SHOT 0.4 1 Type114 E
42
5 KV6-M7113-52X NOZZLE 1SHOT 0.8 1 Type115 E
43
6 KV6-M7113-62X NOZZLE 1SHOT 1.5 1 Type116 E
44
7 KV6-M711A-00X NOZZLE 2 SHOT1608(P0.8) 1 Type11A E
45
8 KV6-M711B-00X NOZZLE 1 SHOT 1.0 1 Type11B E
46
9 KV6-M711C-00X NOZZLE 1 SHOT 1.3 1 Type11C E
47
10 KV6-M71LB-A0X NOZZLE LBA (1608A.P) 1 TypeLBA E
48
11 KV6-M71LC-A0X NOZZLE LCA (2012A.P) 1 TypeLCA E
49
12 KGK-M7836-00X NOZZLE HN04 ASSY. 1 Type117 E
50
13 KV6-M77A1-00X NOZZLE,11D GLUE 1 Type11D E
51
14 KV6-M77A2-00X NOZZLE,11E GLUE 1 Type11E E
52
15 KV6-M77A3-00X NOZZLE,11F GLUE 1 Type11F E
53
16 KV6-M77A4-00X NOZZLE,11G GLUE 1 Type11G E
54
17 55
18 56
19 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
7
1
Nozzle
Nozzle
