SMT Software En gineering Group IMOperations YAMAHAMOTORCO.,LTD. MDOC-SOFT50102 1/9 “Squeegee” Machine Setu p Manual Chapter “ Squee gee ” Machine Setu p Manua l ......... ....... ...... ............ ..... ......…
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50102
1/9
“Squeegee” Machine Setup Manual
Chapter
“Squeegee” Machine Setup Manual ...................................................................................................... 1
1. Target model and Target version ........................................................................................................ 2
2. Outline .................................................................................................................................................... 2
3. Setting .................................................................................................................................................... 2
3.1. SystemConfig setting .................................................................................................................... 3
3.2. Machine setting.............................................................................................................................. 4
3.2.1.CollationSqueegee.................................................................................................................... 4
4. Usage ..................................................................................................................................................... 5
4.1. Over View ......................................................................................................................................... 5
4.2. Operation Navigate ....................................................................................................................... 6
4.3. Detail ............................................................................................................................................... 6
4.4 Setup work of “Squeegee” ............................................................................................................ 7
5. Limitation................................................................................................................................................ 9
Revision
Content Author Date
1 New Nobuhiro Nonaka
2010/12/01
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50102
2/9
1. Target model and Target version
Target model and Target version of this specification are as follows.
Table1 Target Machine and Software
Machine, Software Version Remarks
IT System Server V1.25STD R1.000 or later
YSP V3.25STD R1.000 or later
2. Outline
“Setup Squeegee” is a function to check the setting of squeegee of a printer.
With this function, "Setup Verify" of squeegee becomes possible, and mis-Setup is
prevented.
To use this function, it is necessary to register a squeegee according to the following
procedure to use.
1. Register Squeegee in ID Editor.
・ Refer to "ID Editor Register Squeegee” Manual.
2. Method of setup “Squeegee”
・ Refer to this material.
3. Setting
“Squeegee Setup” is one of the functions of "Setup verify".
It is possible to use it, If "Setup verify" is effective,
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50102
3/9

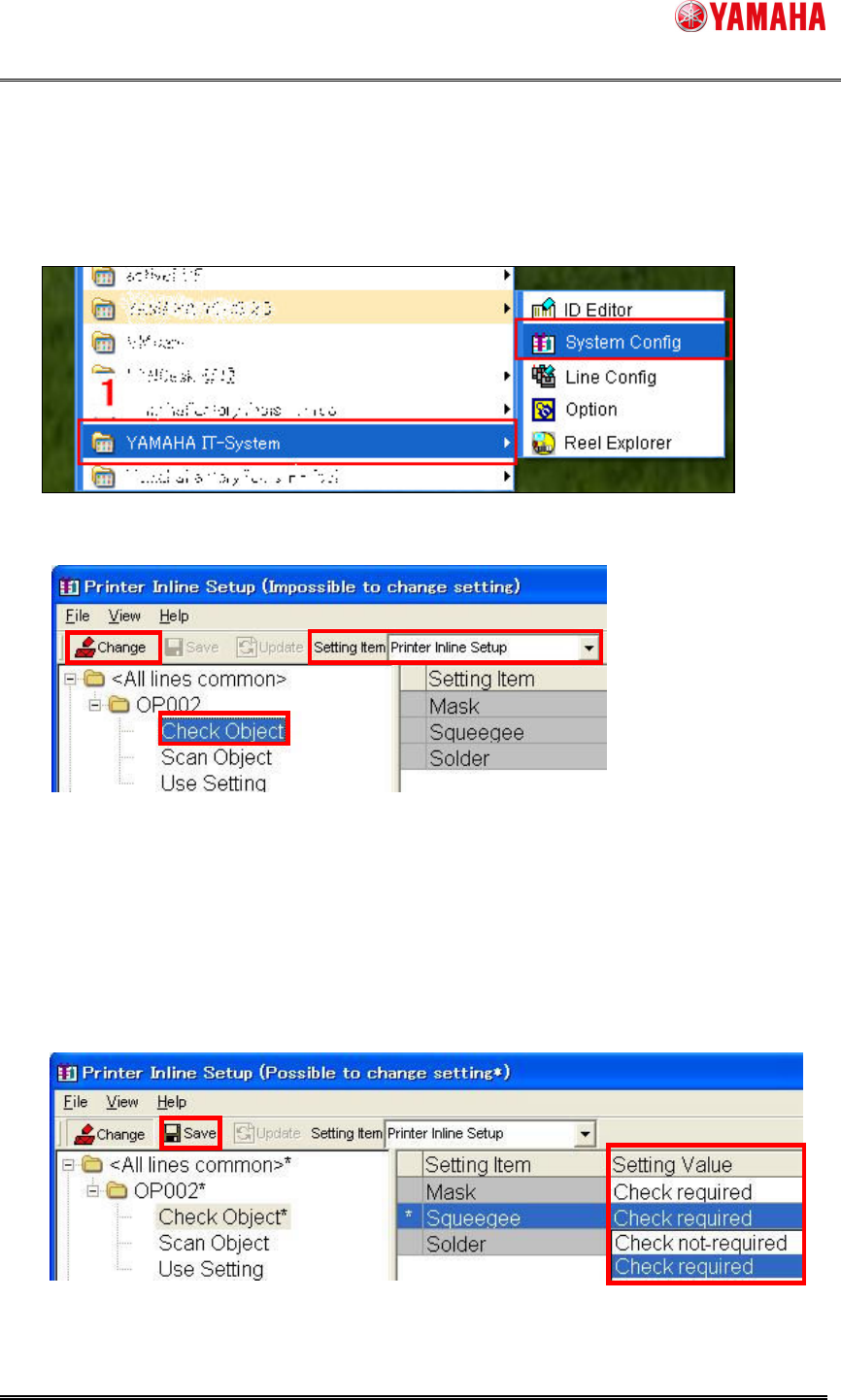

3.1. SystemConfig setting
You can set up Squeegee through the following procedure.
Step1. On a PC containing YAMAHA IT-System,
1. Select [Start]-[Program]-[YAMAHA IT-System]-[System Config]
2. Select [Printer Inline Setup] from the combo box of [Setting Item] on the tool bar.
3. Select [OP002]-[Check Object] in the folder of <Line Unit>, which has the target
machine of this setting or <All line common>.
4. Click [Change]
5. Select [Check required] from the combo box of [Squeegee]-[Setting Value].
6. Click [Save] and finish.
4
2
3
6
5
