SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50102
6/9

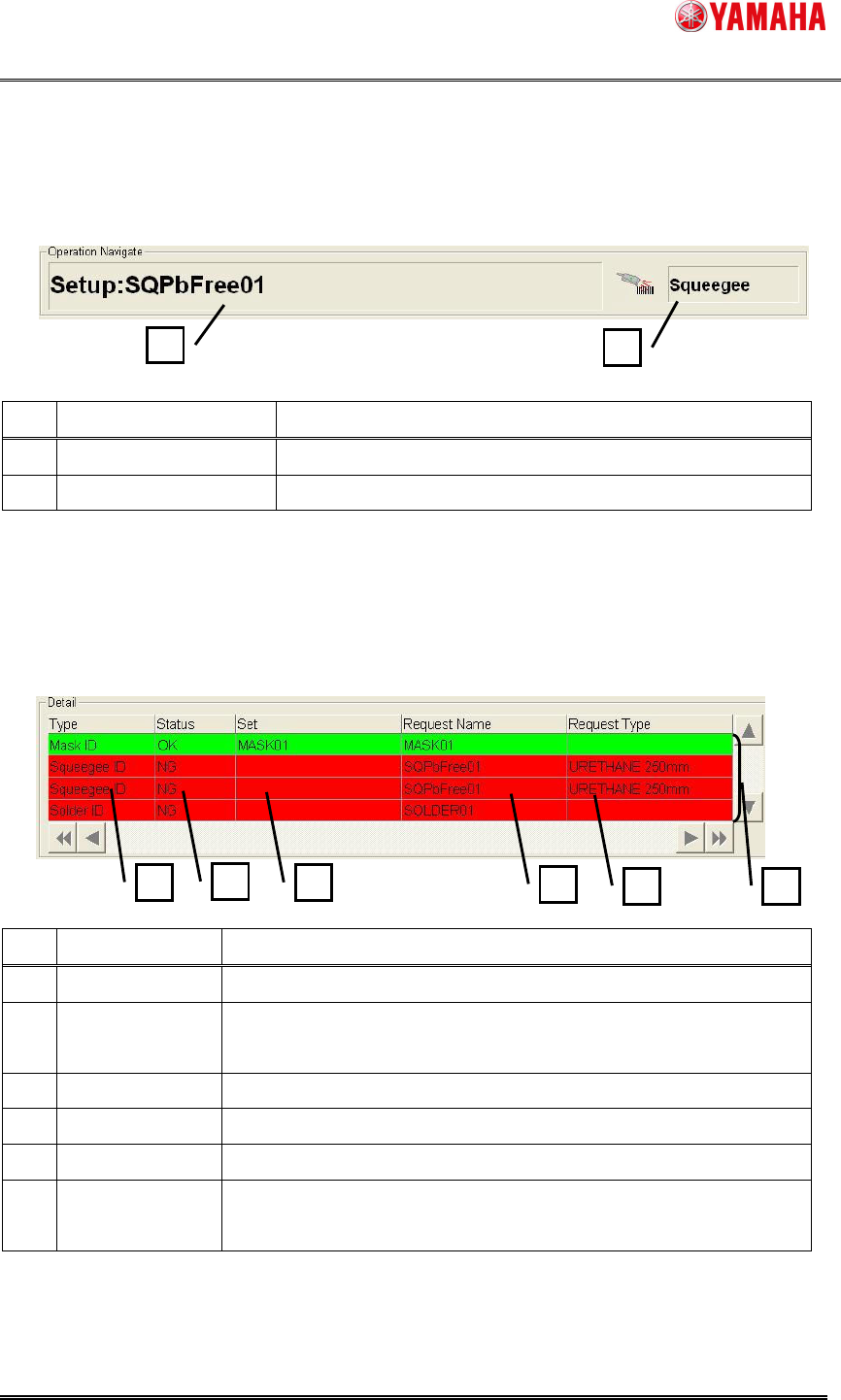

4.2. Operation Navigate
When a setup “Squeegee” is necessary, [Setup:…] is displayed.
Figure4.2.1 Operation Navigate
No.
Item name Explanation
1 Operating Navigation “Type” or “Name” displays setup Request.
2 Scanning Object Object to be scanned is displayed.
4.3. Detail
Detail situation of squeegee setup is displayed.
Figure4.3.1 Detail
No.
Item name Explanation
1 Type Object type to be scanned is displayed
2 Status
"Setup OK" displays "OK" and "Setup NG" displays "NG" and
“No Use” displays “NoUse”.
3 Set “Type” or "Name" that has been setup is displayed.
4 Request Name "Name" that setup request with the board is displayed.
5 Request Type "Type" that setup request with the board is displayed.
6 Setup Situation
"Setup OK" displays "Green" and "Setup NG" displays "Red"
and “No Use” displays “White”.
1
2
1
2
3
4
5
6
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50102
7/9
4.4 Setup work of “Squeegee”
Setup a squeegee you need, and scan the barcode of the squeegee with the barcode
reader.
Ex1: If you want to setup two squeegee names of "SQPbFree01" whose type is “Double
Squeegee”.
Step1. Setup two squeegees named "SQPbFree01" whose type is "Double Squeegee".
1. Check the content displayed on the [Monitor] – [Production].
2. Attach two squeegees of "SQPbFree01" according to the content.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50102
8/9
Step2. Scan the barcode of "SQPbFree01" with the barcode reader.
Attach a barcode, which means "SQPbFree01" beforehand.
If more than one barcode are necessary, you need to scan them continuously.
1. Scan one of the “SQPbFree01”.
2. Scan the other one of the “SQPbFree01”.
3. Setup of "Squeegee" is completed.
Step3. The operating navigation of “Squeegee” is closed, when the setup is completed.
