7. Machine Control System
7.1 Machine Control Specifications
Note: Pentium
is a registered trademark of Intel Corporation.
FujiCam is the host system used for assembly data administration and transmission.
It is necessary to install the FujiCam software on a suitable computer. The computer on
which FujiCam will be installed should be provided by the user prior to taking delivery
of the machine.
The ethernet cable (100 meters of category 5 10BASE-T) should be prepared by the user
in advance.
Items
CPU
Recipe storage capacity
Data input method
Specifications
333 MHz (Intel Pentium
II)
5000 sequences/recipe
Unlimited (as long as disk space is available)
FujiCam
0.01 mm for X-, Y-, ZA-, ZB-, and ZC-axis.
0.01° for the Q
A-, QB-, and QC-axis.
Communication Ethernet (can be made SECS/GEM compliant)
Maximum number of input sequences
For PCB positioning and part pick-up
displacement
Coordinate input method
Absolute
Controllable axes 8 axes (X, Y, Z
A, ZB, Zc, QA, QB, QC)
Tray unit (T
Y, TZ)
Flux unit (pending)
Main control unit Single board computer
Control panel
Color LCD touch panel
Optical correction
QP3S038
– 24 – QP-341E-MM/QP-351-MM Specifications
Preliminary (January 10, 2000)

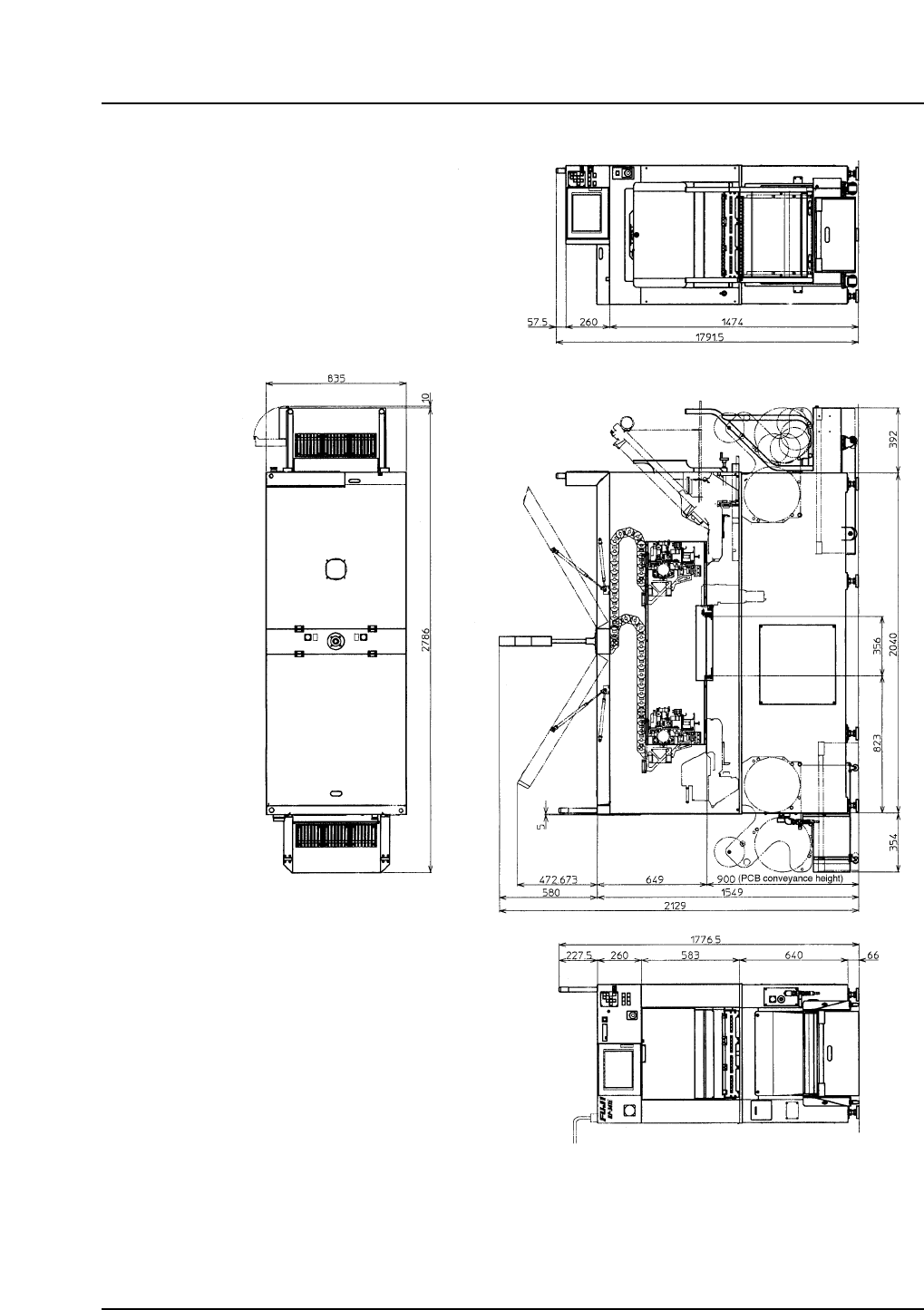

8. Machine Drawings
8.1 Dimensions
8.1.1 QP-341E-MM (MF + MFU-6E)
Note: The rear operation panel in the figure above is an optional feature.
– 25 – QP-341E-MM/QP-351-MM Specifications
Preliminary (January 10, 2000)
8.1.2 QP-341E-MM (PF + PFU-3E)
Note: The rear operation panel in the figure above is an optional feature.
– 26 – QP-341E-MM/QP-351-MM Specifications
Preliminary (January 10, 2000)
