TS8100-PC-PUMP-USER-GUIDE.pdf - 第3页
18 11. TROUBLE SHOOTING: PROBLEM POSSIBLE CAUSE CORRECTION No Fluid Flow Dispense tip is clogged Replace tip Motor does not receive signal Make sure all connections ar e secured Motor running in reverse Reverse motor cab…
2
CONTENTS
Page number
1. Specifications…………………………………………………………………
2. Dimensions and Typical Setup……………………………………………….
3. Unpacking and Inspection……………………………………….….………...
4. Description………..…………………………………………….….…………
5. Theory of Operation…..………………….…………………….….…………
6. Set-Up Instructions….…...…………………………………….…………
6.1 Install the Stator ……………………………………………………..…
6.2 Mechanical Mounting …………………………………………………
6.3 Connect the Pump to the controller …………………………………...
6.4 Prime the Pump ……………………………………………………….
6.5 Dispensing ……………………………………………………………..
7. Maintenance and Cleaning…………………………………………………
7.1 Pump Purging …………………………………………………………
7.2 Thorough Cleaning …………………………………………………....
8. Spare Parts………...………………………..………….…….………….........
9. Accessories………..………………………..………….…….….……….......
10. Trouble Shooting………..………………………..………….…….………...
11. Warranty……………………………………………………………………..
3
4
5
6
6
7-11
7
8
9
10
11
12-14
12
13
15-16
17
18
19
19
12. LIMITED WARRANTY:
Manufacturer warrants this product to the original purchaser for a period of one (1)
year from date of purchase to be free from defects in fluid and workmanship, but
not against damages by misuse, negligence, accident, faulty installations and
instructions. Manufacturer will repair or replace (at factory’s option), free of
charge, any component of the equipment thus found to be defective, on return of
the component, “PREPAID” to the factory during the warranty period. In no event
shall any liability or obligation of the Manufacturer arising from this warranty
exceed the purchase price of the equipment. This warranty is only valid if the
defective product is returned as a complete assembly without physical damage.
The Manufacturer’s liability, as stated herein, cannot be altered or enlarged except
by a written statement signed by an officer of the company. In no event shall the
Manufacturer be liable for consequential or incidental damages. A return
authorization is required from Techcon Systems prior to shipping a defective unit
to the factory.
Manufacturer reserves the right to make engineering product modifications
without notice.
All returns must be issued with a Returns Authorization number, prior to return.
Send warranty returns to:
Americas
OK International
10800 Valley View Street
Cypress, CA 90630
Europe
OK International
Eagle Close
Chandler’s Ford Ind Est
Eastleigh
Hampshire
SO53 4NF
United Kingdom
Asia
OK International
4th floor East, Electronic Building,
Yanxiang Industrial Zone, High Tech Road,
Guangming New District, Shenzhen P.R.C
www.techconsystems.com
Delrin®, Viton® and Teflon® are registered trademarks of E.I. DuPont.
7000-2350_A
18
11. TROUBLE SHOOTING:
PROBLEM POSSIBLE CAUSE CORRECTION
No Fluid Flow
Dispense tip is clogged Replace tip
Motor does not receive signal
Make sure all connections are
secured
Motor running in reverse
Reverse motor cable
connection
Barrel of dispense fluid is
empty
Replace with new fluid barrel
Fluid feed pressure is too low Increase feed pressure.
Inconsistent
Shot size
Fluid dried or cured Replace with new fresh fluid
Fluid pressure fluctuating
Make sure fluid pressure is
constant
Valve on-time is too short Increase valve on time
Excessive motor reverse time
Reduce reverse time or turn
off completely.
Inconsistent
Shot size
Air trapped in fluid Purge valve properly
Skipped dots
Intermittent motor signal Check and replace motor
Air trapped in fluid De-air fluid
Fluids drools after
valve is turned off
Air trapped in fluid chamber Purge valve properly
Air trapped in fluid reservoir Remove air from reservoir
3
1. SPECIFICATIONS
(1) Volumetric dispensing as absolute deviation per complete revolution
and also depends on dispensing fluid.
(2) 2 bar self-sealing is for fluid with viscosity of 1000 Cps or lower. The pump can
handle up to 5.5 bar for 300K Cps viscosity fluid.
SPECIFICATIONS
Size 8.1” (205mm) L X 1.3” (34mm) W
Weight 13.4 oz. (380g)
Wetted Part Delrin, PFE, stainless steel, UHMWPE
Dispense volume per rotation 0.012 ml average
Flow rate 0.15 – 1.04 ml/min.
Minimum dispense amount 0.001 ml
Fluid viscosity 1-300K Cps or m.Pa.s
Precision ±, absolute (1) ±1%
Self-sealing (2) 2 bar
Material inlet port 1/8” NPT
Material outlet port Male Luer lock
Direct mount material reservoir 3 to 55cc
4
Figure 1.0
Figure 2.0

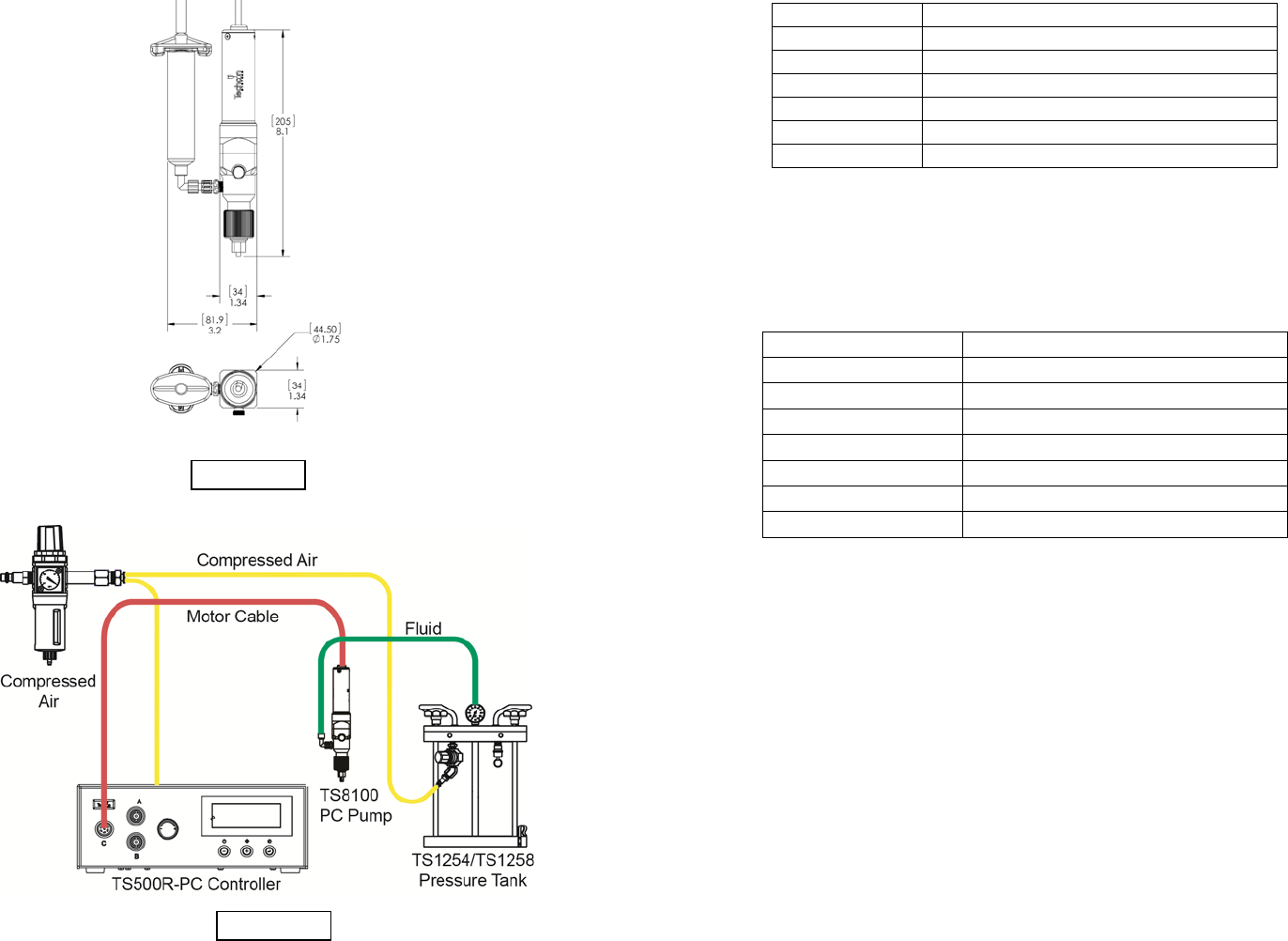

2. DIMENSIONS AND TYPICAL SETUP
17
9. STANDARD ACCESORIES:
10. OPTIONAL ACCESORIES:
PARTNUMBER DESCRIPTION
8100‐CLEANKIT CLEANINGKIT
8100‐SYBRACKET SYRINGEBRACKETKIT
8100‐MBRACKET MOUNTINGBRACKET
TSD931‐96 FEMALELUERWITH1/8NPTTHREAD
TSD931‐82B MALEADAPTERLUERLOCK,BLACKNYLON
TSD931‐81B ELBOW90°LUERLOCK,BLACK‐NYLON
PART NUMBER DESCRIPTION
TN00DKIT Complete Dispensing Tip Kit
9000-000-112 Sample Tip Kit
7105XCON Conditioning Cream, 10cc
7305XCON Conditioning Cream, 30cc
71003RHB 10cc Receiver Head, 3ft (0.9M)
73003RHB 30cc Receiver Head, 3ft (0.9M)
