11. TROUBLE SHOOTING:

PROBLEM POSSIBLE CAUSE CORRECTION

No Fluid Flow

Dispense tip is clogged Replace tip

Motor does not receive signal

Make sure all connections are

secured

Motor running in reverse

Reverse motor cable

connection

Barrel of dispense fluid is

empty

Replace with new fluid barrel

Fluid feed pressure is too low Increase feed pressure.

Inconsistent

Shot size

Fluid dried or cured Replace with new fresh fluid

Fluid pressure fluctuating

Make sure fluid pressure is

constant

Valve on-time is too short Increase valve on time

Excessive motor reverse time

Reduce reverse time or turn

off completely.

Inconsistent

Shot size

Air trapped in fluid Purge valve properly

Skipped dots

Intermittent motor signal Check and replace motor

Air trapped in fluid De-air fluid

Fluids drools after

valve is turned off

Air trapped in fluid chamber Purge valve properly

Air trapped in fluid reservoir Remove air from reservoir

1. SPECIFICATIONS

(1) Volumetric dispensing as absolute deviation per complete revolution

and also depends on dispensing fluid.

(2) 2 bar self-sealing is for fluid with viscosity of 1000 Cps or lower. The pump can

handle up to 5.5 bar for 300K Cps viscosity fluid.

SPECIFICATIONS

Size 8.1” (205mm) L X 1.3” (34mm) W

Weight 13.4 oz. (380g)

Wetted Part Delrin, PFE, stainless steel, UHMWPE

Dispense volume per rotation 0.012 ml average

Flow rate 0.15 – 1.04 ml/min.

Minimum dispense amount 0.001 ml

Fluid viscosity 1-300K Cps or m.Pa.s

Precision ±, absolute (1) ±1%

Self-sealing (2) 2 bar

Material inlet port 1/8” NPT

Material outlet port Male Luer lock

Direct mount material reservoir 3 to 55cc

Figure 1.0

Figure 2.0

2. DIMENSIONS AND TYPICAL SETUP

9. STANDARD ACCESORIES:

10. OPTIONAL ACCESORIES:

PARTNUMBER DESCRIPTION

8100‐CLEANKIT CLEANINGKIT

8100‐SYBRACKET SYRINGEBRACKETKIT

8100‐MBRACKET MOUNTINGBRACKET

TSD931‐96 FEMALELUERWITH1/8NPTTHREAD

TSD931‐82B MALEADAPTERLUERLOCK,BLACKNYLON

TSD931‐81B ELBOW90°LUERLOCK,BLACK‐NYLON

PART NUMBER DESCRIPTION

TN00DKIT Complete Dispensing Tip Kit

9000-000-112 Sample Tip Kit

7105XCON Conditioning Cream, 10cc

7305XCON Conditioning Cream, 30cc

71003RHB 10cc Receiver Head, 3ft (0.9M)

73003RHB 30cc Receiver Head, 3ft (0.9M)

ITEM

NO.

PART

NUMBER

DESCRIPTION QTY.

1 7509‐0070 FLEX,COUPLING 1

2 7509‐0120 ROTOR,2.5PITCH 1

3 7509‐0100 MOTORMOUNTPLATE 1

4 7509‐0140 STATORHOUSING 1

5 2800‐0836SETSCREW,M2.5X3MMLG, 1

6 2800‐0903 M3X6SSSETSCREW 1

7 7509‐0160 STATOR 1

8 3300‐0586 SEAL 1

9 3300‐0595 DOWELPIN1.5X5MM 1

10 2800‐0901 M3X6MMFLATHEADPHILIP 3

11 2800‐0897 M2.5X14MMSHCSCREW 4

12 2800‐0898 WASHER,SEAL 1

13 2800‐0899 THUMBSCREW 1

14 2600‐0185 MOTOR 1

15 7509‐0340 MOTOR,COVER 1

16 7509‐9110 CABLEASSY,SERIES100PCPUMP 1

17 2800‐0900 #4x1/4FLTHDSCREW 3

21 2800‐0917 WASHER#4 4

22 2800‐0295 WASHER,M2.5LOCK,MEDIUM,SS 4

23 7509‐0090 LOCKNUT 1

24 7509‐0130 STATORCAPBOTTOM 1

25 7090‐0030 NEEDLELOCKINGCAP 1

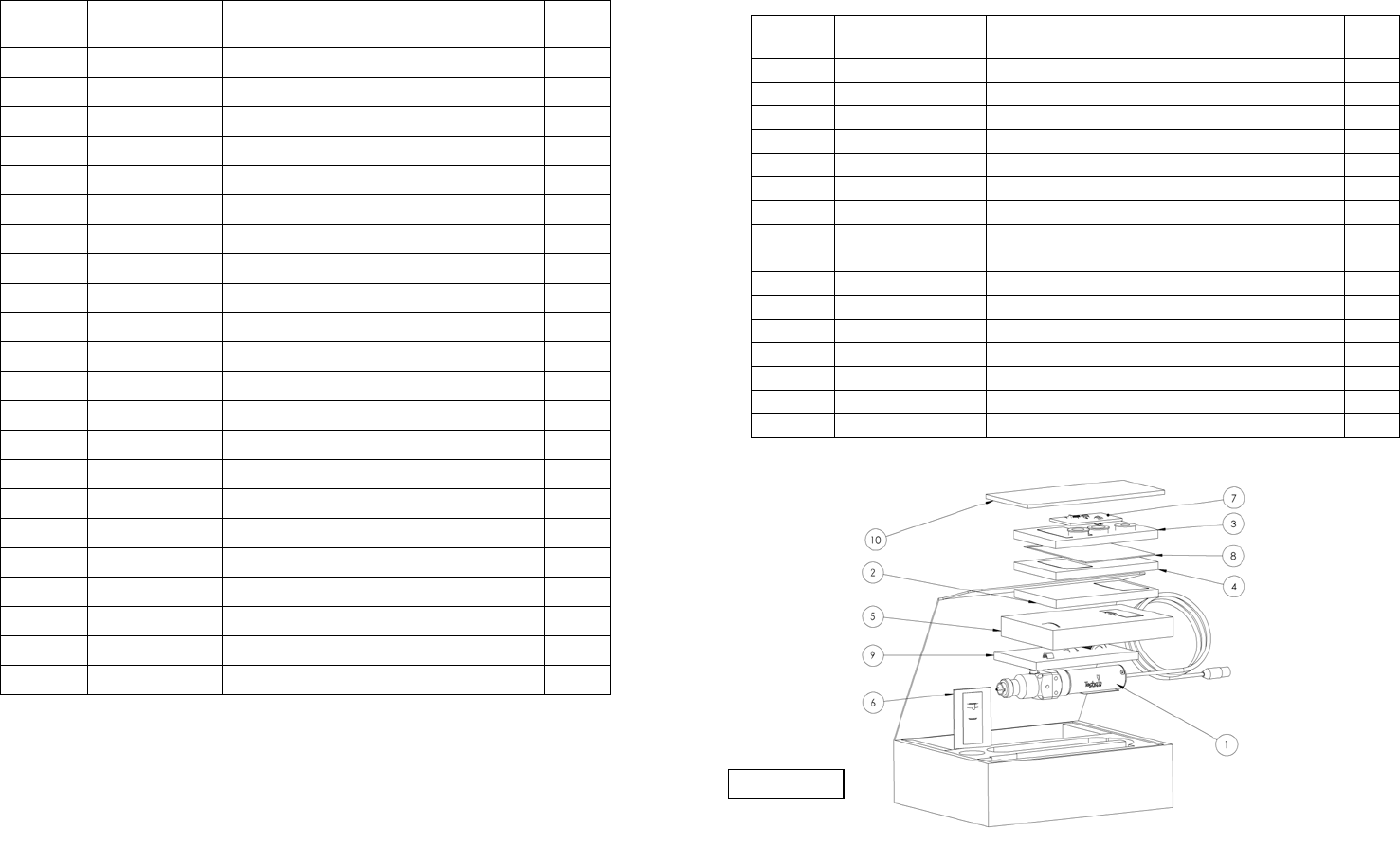

Figure 3.0

3. UNPACKING AND INSPECTION

Carefully unpack the pump and examine the items contained in the carton.

ITEM

NO.

PARTNUMBER DESCRIPTION QTY.

1 7509‐9030 PCPUMP(withoutStator) 1

2 8100‐CLEANKIT Cleaningkit 1

3 8100‐SYBRACKET SYRINGEBRACKETKIT 1

4 8100‐MBRACKET MOUNTINGBRACKET 1

5 A0100488‐2 700SERIES,30ccRECEIVERHEAD 1

6 8100‐100‐002 STATOR 1

7 N/A FITTINGKIT:Includes3fittingsbelow 1

 TSD931‐96 FEMALELUERWITH1/8NPTTHREAD 1

 TSD931‐82B MALEADAPTERLUERLOCK,BLACKNYLON 1

 TSD931‐81B ELBOW90°LUERLOCK,BLACK‐NYLON 1

8 9000‐000‐100 SAMPLENEEDLEKITFORVALVES 1

9 N/A CAP/NUTKIT:Includes3nutandcapsbelow 1



7509‐0090 RETAINERNUT 1



7509‐0130 STATORCAPBOTTOM 1



7090‐0030 NEEDLECAP 1

10 INSTRUCTIONPACKET

Inspect the unit for any damaged which may have occurred in transit. If such damage has

occurred, notify the carrier at once. Claim for damage must be made by the consignee to

the carrier, and should be reported to the manufacturer.
