Solenoid c oil V A CN 537716055 | | 13.10.2025

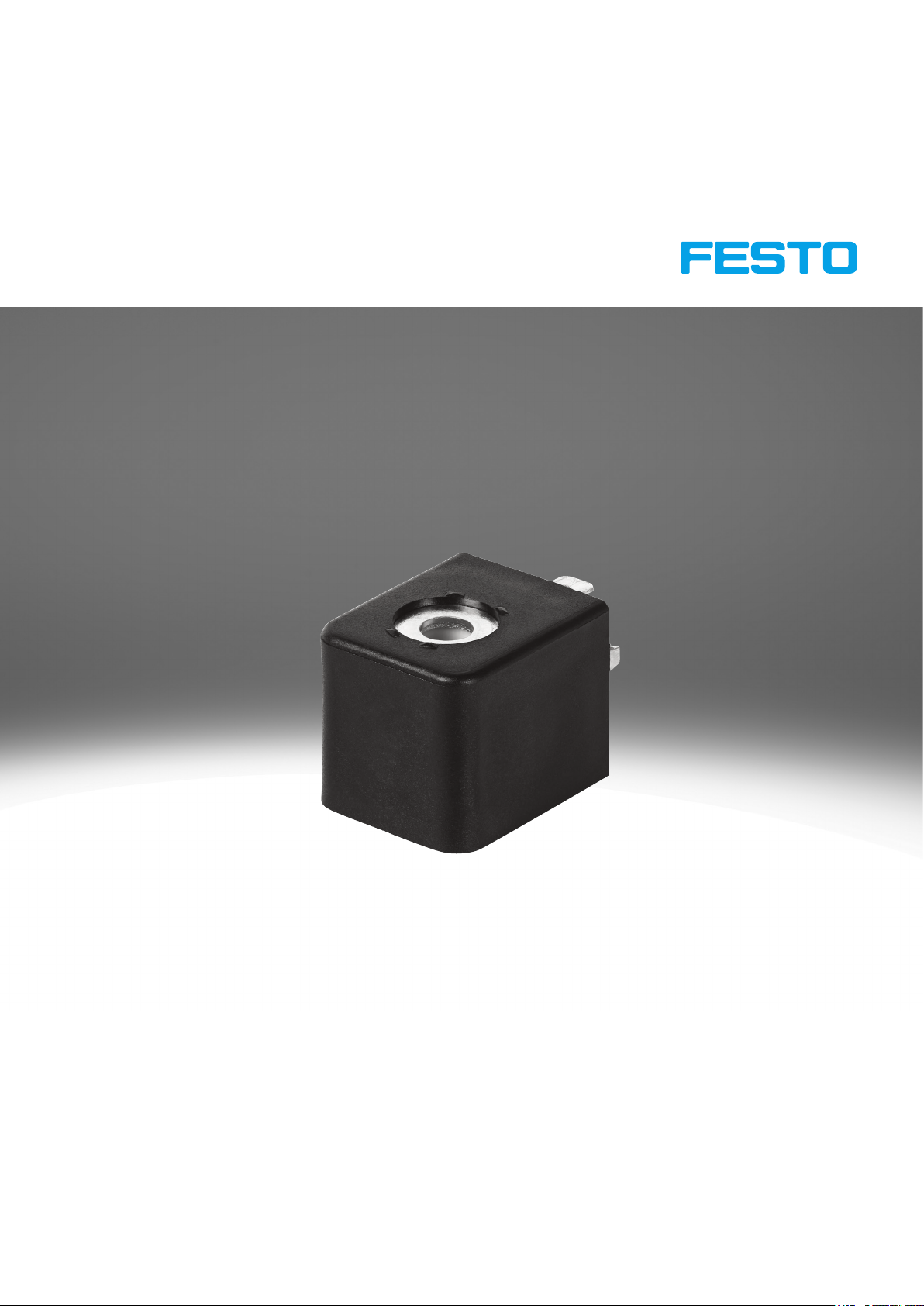

Solenoid coil VACN

537716055 | | 13.10.2025

www.festo.com/catalogue/... 2025/10

537716055 | | 13.10.2025

Solenoid coil VACN

Type code

001 Series

VACN Solenoid coil VACN

002 Solenoid coil type

H1 Solenoid coil H1 for armature tube 14 mm

N Solenoid coil N for armature tube 9 mm

003 Electrical connection

A1 Plug pattern type A, to EN 175301-803

K1 Cable

K11 Cable with insulating conduit connection

R3 Single plug M12 A-coded, according to EN 61076-2-101

R4 Single plug M12 A-coded, pin assignment according to DESINA

004 Nominal operating voltage

1 24 V DC

2A 110 V AC/50-60 Hz

3A 230 V AC/50-60 Hz

16B 120 V AC/60 Hz and 110V AC/50-60 Hz

005 Cable length [m]

0.5 0.5

10 10

006 EU certication

None

EX2 II 3GD

EX4 II 2GD

007 Certication

None

U4 Class1 Div1 to NEC 500

008 Type of ignition protection

None

A Intrinsically safe

M Encapsulation

N Non-sparking

2025/10 www.festo.com/catalogue/...

537716055 | | 13.10.2025

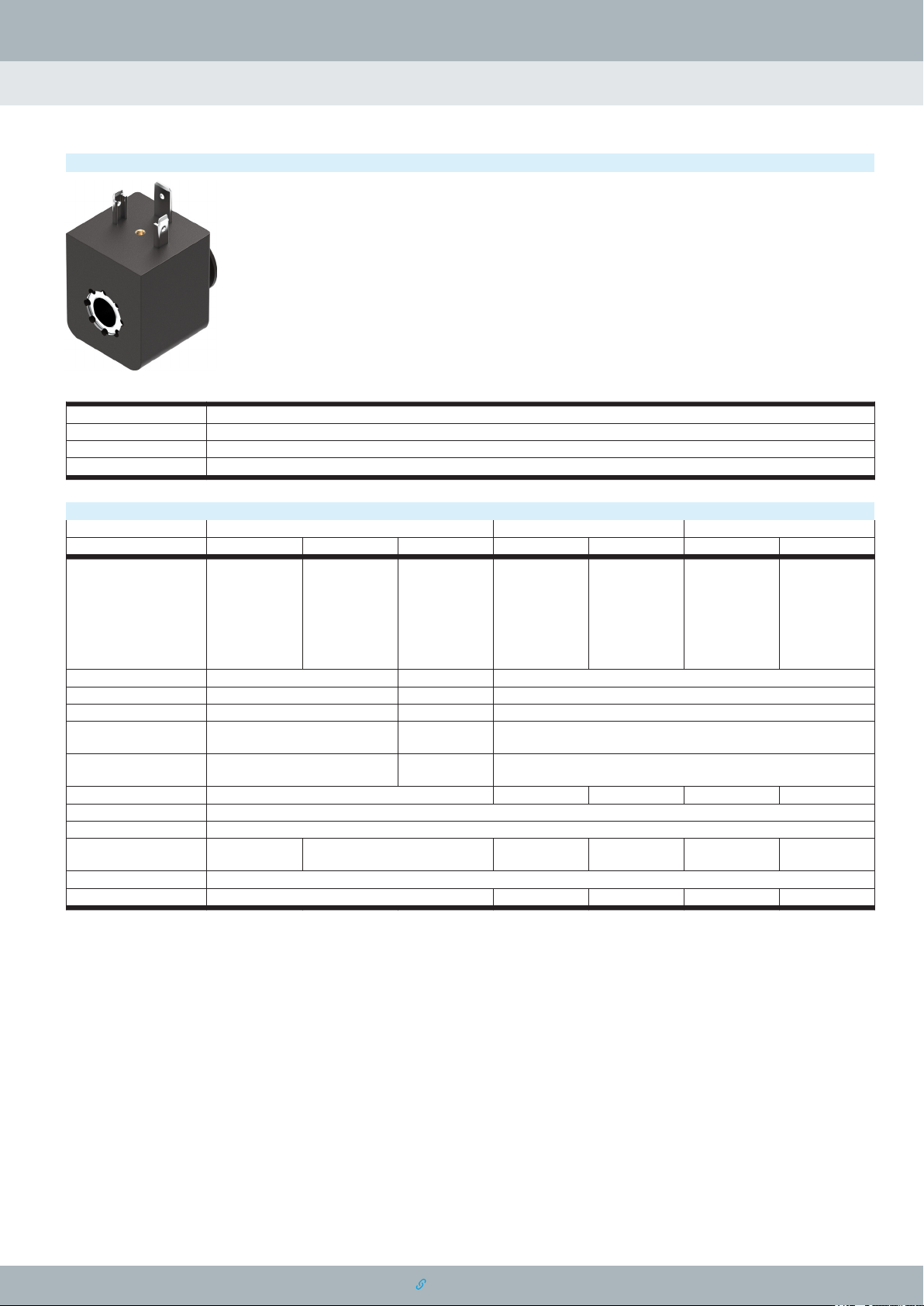

Solenoid coil VACN

Datasheet

General technical data - Solenoid coils N for Armature tube 9 mm, with electrical connection form A

Electrical connection Type A, To DIN EN 175301-803

Type of actuation Electric

Type of mounting Via knurled nut

Mounting position optional

Electrical data - Solenoid coils N for Armature tube 9 mm, with electrical connection form A

Nominal operating voltage 24 V DC 230 V AC/50-60 Hz 120 V AC/60 Hz and 110V AC/50-60 Hz

EU certication None II 3GD II 2GD None II 3GD None II 3GD

Characteristic coil data 24 V DC: 0.7 W 24 V DC: 2.1 W – 230 V AC: 50 Hz,

pick-up power 6.2

VA, holding power

3.7 VA, 230 V AC:

60 Hz, pick-up pow-

er 4.9 VA, holding

power 2.9 VA

230 V AC: 50 Hz,

pick-up power 6.9

VA, holding power

4.1 VA, 230 V AC:

60 Hz, pick-up pow-

er 5.4 VA, holding

power 3.3 VA

110 V AC: 50 Hz,

pick-up power 5.2

VA, holding power

3.1 VA, 110 V AC:

60 Hz, pick-up pow-

er 4.2 VA, holding

power 2.5 VA

110 V AC: 50 Hz,

pick-up power 6.9

VA, holding power

4.1 VA, 110 V AC:

60 Hz, pick-up pow-

er 5.4 VA, holding

power 3.2 VA

Max. input voltage Ui – 28 V –

Max. input current Ii – 115mA –

Required current consumption – 27mA –

Eective internal capacitance

– Negligibly low –

Permissible voltage uctua-

tions

+/- 10% – +/- 10%

Immunity to surge – 4 kV – 2.5 kV –

Duty cycle 100%

Insulation material class F

Insulation material class of

enamelled wire

F H F H F H

Degree of protection IP65

Pollution degree – 3 – 3 –
