Solenoid coil VACN
Dimensions

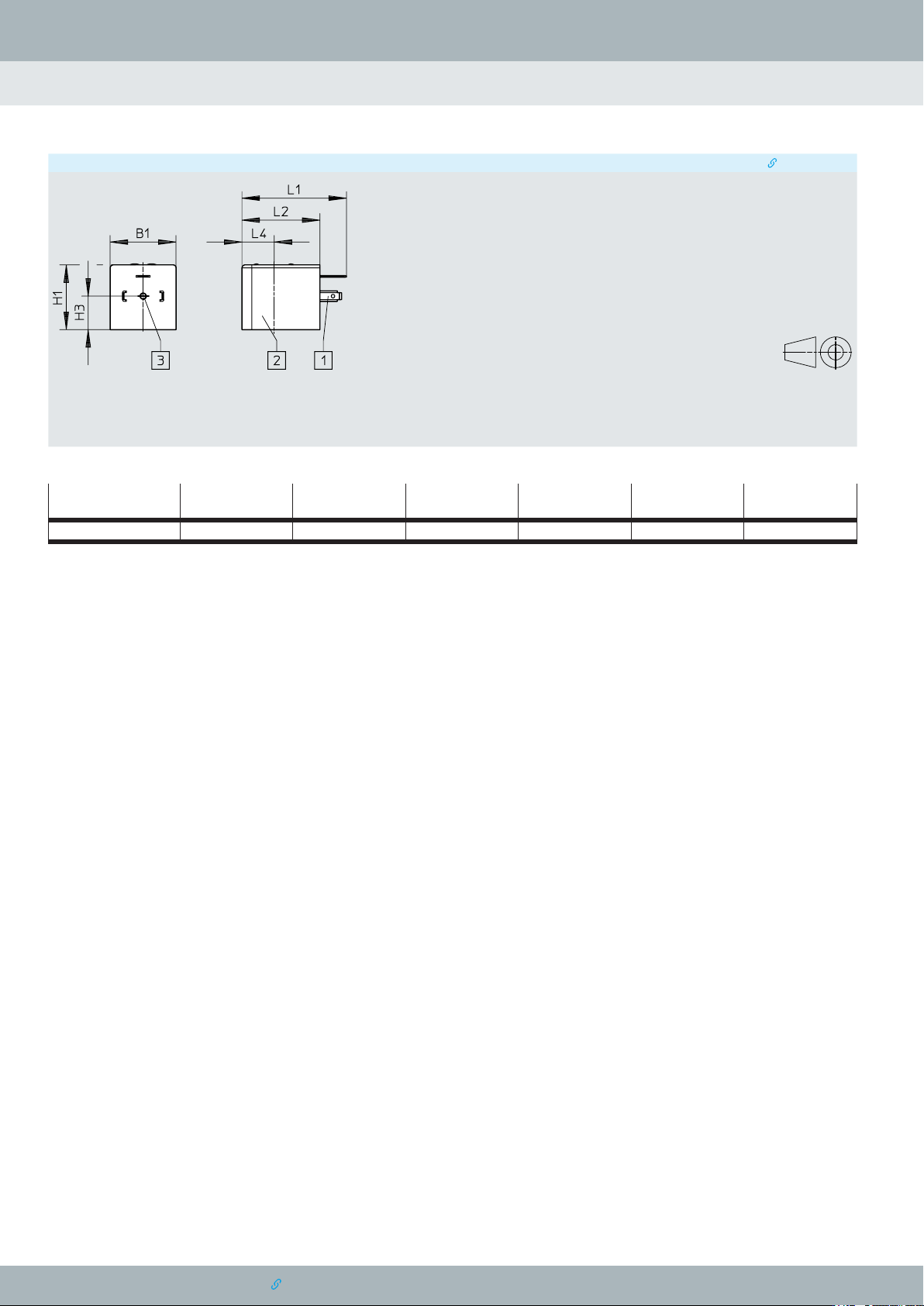

Dimensions – Solenoid coils VACN-N-A1 Download CAD data www.festo.com
[1] Plug pattern according to EN 175301-803, type A
[2] Solenoid coil
[3] Retaining screw M3
B1 H1 H3 L1 L2 L4
VACN-N-A1-... 30 29,5 15,3 47,6 35,5 14,7
11
2025/10 www.festo.com/catalogue/...
537716055 | | 13.10.2025
Solenoid coil VACN
Dimensions

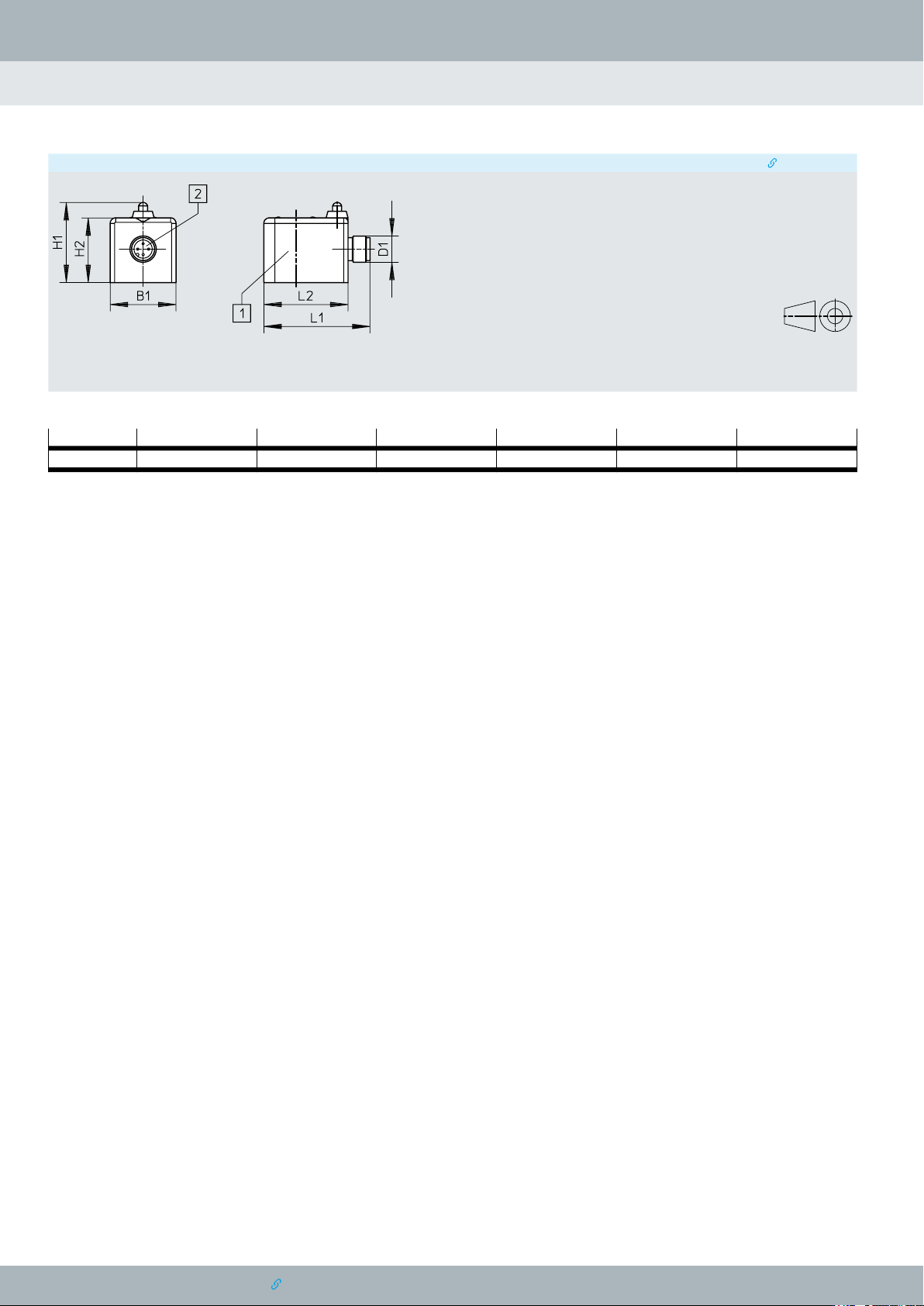

Dimensions – Solenoid coils VACN-N-R3-1 Download CAD data www.festo.com
[1] Solenoid coil
[2] Plug M12x1, A-coded, 2-pin according to ISO20401
B1 D1 H1 H2 L1 L2
VACN-N-R3-1 30 M12x1 36,5 29,5 48,4 38,4
12
www.festo.com/catalogue/... 2025/10
537716055 | | 13.10.2025
Solenoid coil VACN
Dimensions

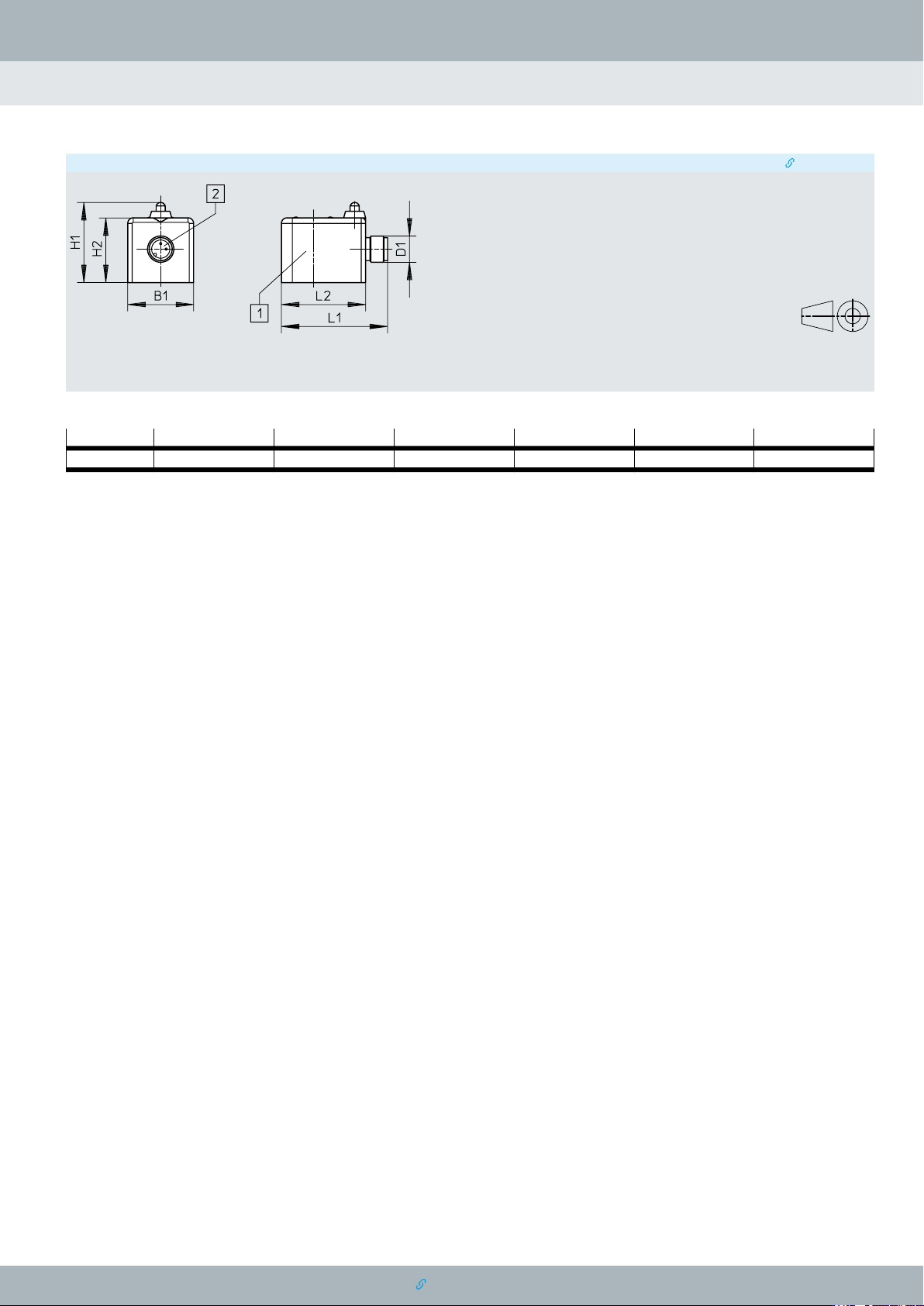

Dimensions – Solenoid coils VACN-N-R4-1 Download CAD data www.festo.com
[1] Solenoid coil
[2] Plug M12x1, A-coded, 4-pin according to Desina
B1 D1 H1 H2 L1 L2
VACN-N-R4-1 30 M12x1 34,4 29,5 48,4 38,4
