13
2025/10 www.festo.com/catalogue/...
537716055 | | 13.10.2025
Solenoid coil VACN
Dimensions

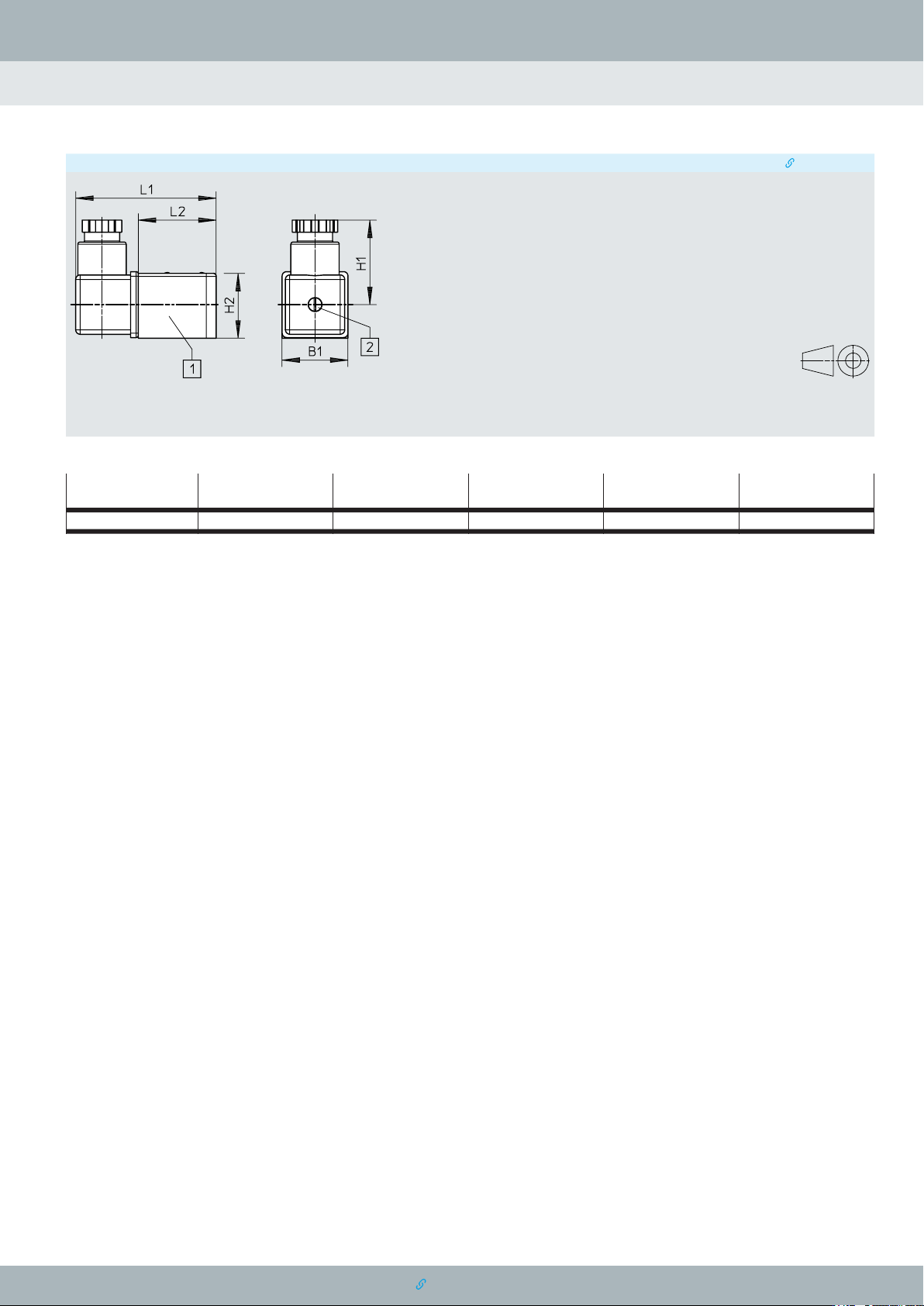

Dimensions – Solenoid coils VACN-N-A1-...-EX2-N Download CAD data www.festo.com
[1] Solenoid coil
[2] Retaining screw M3
B1 H1 H2 L1 L2
VACN-N-A1-...-EX2-N 30 38,5 29,5 64 35,5
14
www.festo.com/catalogue/... 2025/10
537716055 | | 13.10.2025
Solenoid coil VACN
Dimensions
Dimensions – Solenoid coils VACN-N-K11...-U4-M Download CAD data www.festo.com
[1] Solenoid coil
B1 D2 D3 H1 H3 L1 L2 L4 L5
+0,2 ⌀ +0,35 ±10
-0,5 -0,15
VACN-N-K11-... 36 24,6 1/2NPT 31 14,5 43 18 23 610
15
2025/10 www.festo.com/catalogue/...
537716055 | | 13.10.2025
Solenoid coil VACN
Dimensions
Dimensions – Solenoid coils VACN-N-K1-...-EX4-M Download CAD data www.festo.com
B1 D1 H1 H2 L1 L2 L5 L6 L7
VACN-N-K1-1-EX4-M 29,7 7 49,3 31,3 67 14,8 3000 43 7
VACN-N-K1-1-10-EX4-M 29,7 7 49,3 31,3 67 14,8 10000 43 7
VACN-N-K1-16B-EX4-M 29,7 7 49,3 31,3 67 14,8 3000 43 7
VACN-N-K1-3A-EX4-M 29,7 7 49,3 31,3 67 14,8 3000 43 7
