17
2025/10 www.festo.com/catalogue/...
537716055 | | 13.10.2025
Solenoid coil VACN
Ordering data
Ordering data - Solenoid coils N for Armature tube 9 mm, with electrical connection plug
Nominal operating
voltage
Electrical connection Conforms to standard EU certication Product weight Part no. Type
Single plug M12
A-coded, according to
EN 61076-2-101
ISO 20401 100 g 8104526 VACN-N-R3-1
Single plug M12
A-coded, pin assign-
ment according to
DESINA
DESINA 8104527 VACN-N-R4-1
24 V DC Plug pattern type A, to
EN 175301-803
None 95 g 8029144 VACN-N-A1-1
II 3GD 8029136 VACN-N-A1-1-EX2-N
II 2GD 114 g 8029139 VACN-N-A1-1-EX4-A
230 V AC/50-60 Hz None 95 g 8029135 VACN-N-A1-3A
II 3GD 8029138 VACN-N-A1-3A-EX2-N
120 V AC/60 Hz and
110V AC/50-60 Hz
None 8029134 VACN-N-A1-16B
II 3GD 8029137 VACN-N-A1-16B-EX2-N
Ordering data - Solenoid coils N for Armature tube 9 mm, with electrical connection cable
Nominal operating
voltage
Electrical connection EU certication Cable length Product weight Part no. Type
24 V DC Cable II 2GD 3 m 353 g 8029143 VACN-N-K1-1-EX4-M
10 m 762 g 8141606 VACN-N-K1-1-10-EX4-M
Cable with insulating
conduit connection
None 0.61 m 207 g 8029146 VACN-N-K11-1-0.5-U4-M
230 V AC/50-60 Hz Cable II 2GD 3 m 353 g 8029141 VACN-N-K1-3A-EX4-M
Cable with insulating
conduit connection
None 0.61 m 207 g 8029140 VACN-N-K11-3A-0.5-U4-M
120 V AC/60 Hz and
110V AC/50-60 Hz
Cable II 2GD 3 m 353 g 8029142 VACN-N-K1-16B-EX4-M
Cable with insulating
conduit connection
None 0.61 m 207 g 8029145 VACN-N-K11-16B-0.5-U4-M
Ordering data - Solenoid coils H1 for Armature tube 14 mm, with electrical connection plug
Nominal operating voltage Electrical connection EU certication Product weight Part no. Type
24 V DC Plug pattern type A, to EN
175301-803
None 150 g 8022877 VACN-H1-A1-1
110 V AC/50-60 Hz 8022878 VACN-H1-A1-2A
230 V AC/50-60 Hz 8022879 VACN-H1-A1-3A
18
www.festo.com/catalogue/... 2025/10
537716055 | | 13.10.2025

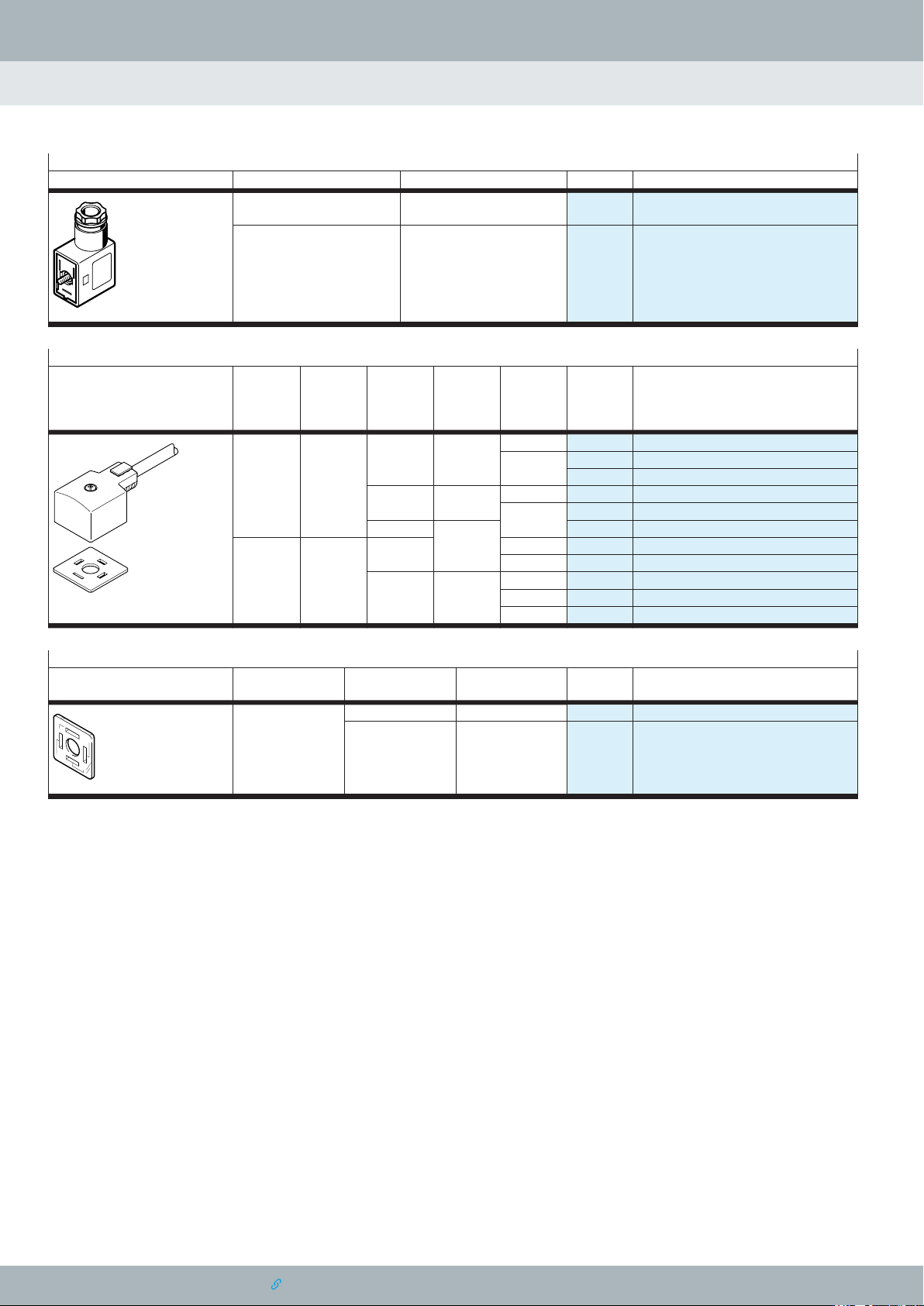

Solenoid coil VACN
Accessories
Plug socket
Electrical connection Cable tting Part no. Type
3-pin, Angled socket, Type A, To DIN
EN 175301-803, Square design
M16 539709 MSSD-C-M16
3-pin, Angled socket, Type A, To DIN
EN 175301-803, Square design
MSC, Square design MSN1
Pg 9 34583 MSSD-C
Connecting cable
Electrical
connection
Electrical
connection
1, connector
system
Nominal op-
erating volt-
age DC
Nominal op-
erating volt-
age AC
Cable length Part no. Type
Connection
pattern type
A based on
EN 175301-
803
24 V 24 V 0.3 m 3679771 NEBV-A1W3F-P-K-0.3-N-M12W3
0.6 m 3679776 NEBV-A1W3F-P-K-0.6-N-LE3
3679772 NEBV-A1W3F-P-K-0.6-N-M12W3
110 V 110 V 0.3 m 3579461 NEBV-A1W3-K-0.3-N-M12W3
0.6 m 3579462 NEBV-A1W3-K-0.6-N-M12W3
230 V 230 V 3579466 NEBV-A1W3-K-0.6-N-LE3
Socket, Type
A
2.5 m 30932 KMC-1-230AC-2,5
5 m 30934 KMC-1-230AC-5
24 V 2.5 m 30931 KMC-1-24DC-2,5-LED
5 m 30933 KMC-1-24DC-5-LED
10 m 193459 KMC-1-24-10-LED
Illuminating seal
Electrical connection Nominal operating volt-
age AC
Operational voltage
range DC
Part no. Type
Type A, To DIN EN
175301-803, Square
design MSC
12 ... 24 V 19145 MC-LD-12-24DC
230 V 19146 MC-LD-230AC
