8
www.festo.com/catalogue/... 2025/10
537716055 | | 13.10.2025
Solenoid coil VACN
Datasheet
Operating and environmental conditions - Solenoid coils N for Armature tube 9 mm, with electrical connection Cable
Nominal operating voltage 230 V AC/50-60 Hz 120 V AC/60 Hz and 110V AC/50-60 Hz
EU certication None II 2GD None II 2GD
Ambient temperature -20 ... 60°C -20 ... 50°C -20 ... 60°C -20 ... 50°C
Corrosion resistance class
CRC
1)
2 - Moderate corrosion stress
CE mark (see declaration of
conformity)
2)
– To EU Explosion Protection Directive
(ATEX)
In accordance with EU RoHS Directive
– To EU Explosion Protection Directive
(ATEX)
In accordance with EU RoHS Directive
UKCA marking (see declaration
of conformity)
– To UK EX instructions
To UK RoHS instructions
– To UK EX instructions
To UK RoHS instructions
Maritime classication
3)
See certicate
Certicate issuing authority CSA 265489
DNV TAA000011J
FM 3053936
CCC 2021322307003994
DNV 15.0189X/02
DNV TAA000011J
GYJ21.1327X
IECEx PTB 15.0016X
PTB 14 ATEX 2027 X
CSA 265489
DNV TAA000011J
FM 3053936
CCC 2021322307003994
DNV 15.0189X/02
DNV TAA000011J
GYJ21.1327X
IECEx PTB 15.0016X
PTB 14 ATEX 2027 X
1) More information www.festo.com/x/topic/kbk
2) More information www.festo.com/catalogue/... Support/Downloads.
3) More information www.festo.com/catalogue/... Support/Downloads.

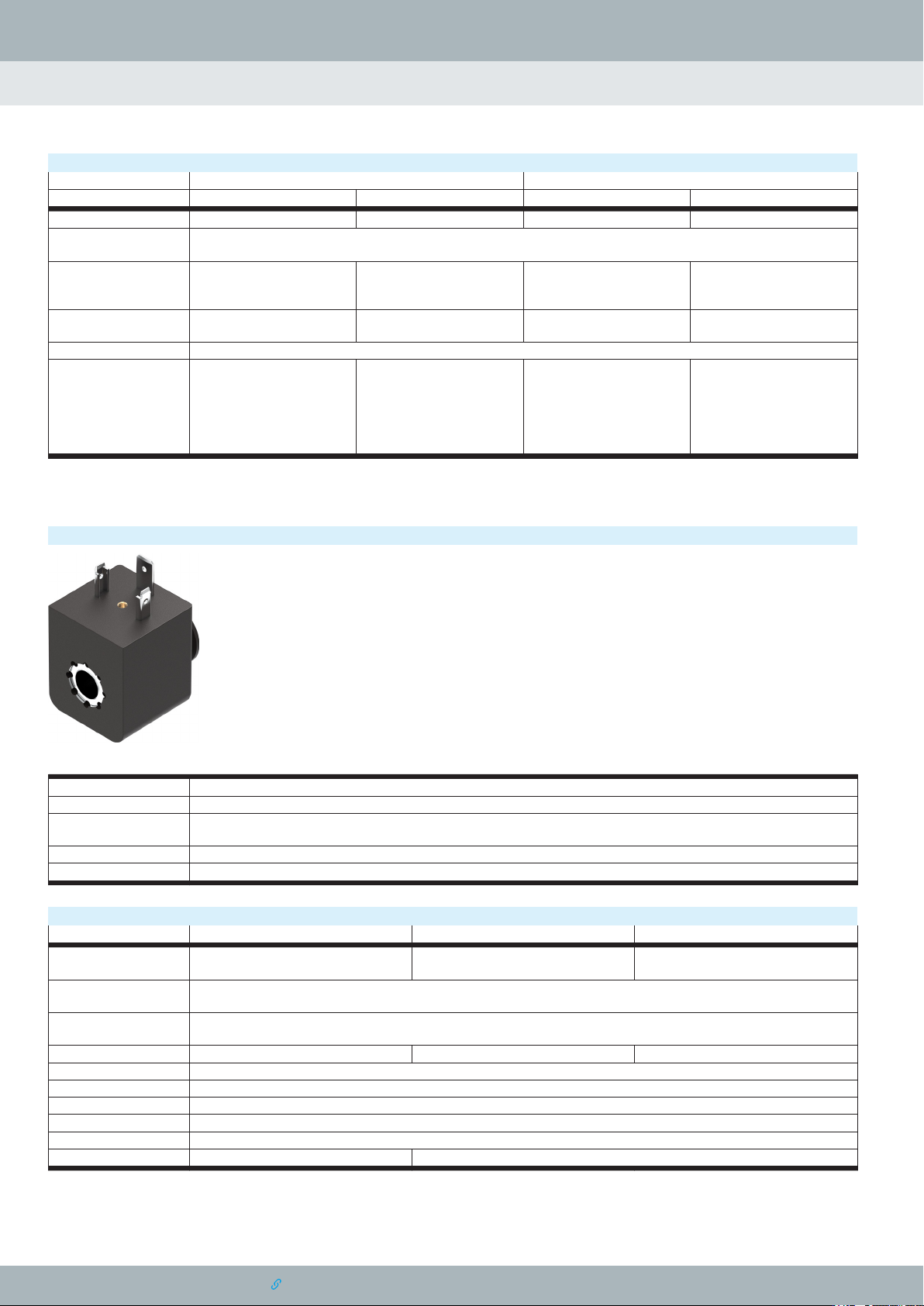

General technical data - Solenoid coils H1 for Armature tube 14 mm, with electrical connection form A
Electrical connection Type A, Plugs, To DIN EN 175301-803, Square design
Type of mounting Via lock nut
Max. tightening torque for t-
ting
2 Nm
Mounting position optional
Switching position indicator no
Electrical data - Solenoid coils H1 for Armature tube 14 mm, with electrical connection form A
Nominal operating voltage 24 V DC 110 V AC/50-60 Hz 230 V AC/50-60 Hz
Characteristic coil data 24 V DC: 11.9 W 110 V AC: 50/60 Hz, pick-up power 36.0 VA, hold-
ing power 18.5 VA
230 V AC: 50/60 Hz, pick-up power 36.0 VA, hold-
ing power 18.9 VA
Permissible voltage uctua-
tions
+/- 10%
Permissible frequency uctua-
tions
+/- 10%
Immunity to surge – 2.5 kV 4 kV
Duty cycle 100%
Power factor (cos phi) 0.7
Min. pick-up time 12 ms
Degree of protection IP65
Note on degree of protection In assembled state
Pollution degree – 3
9
2025/10 www.festo.com/catalogue/...
537716055 | | 13.10.2025
Solenoid coil VACN
Datasheet
Materials - Solenoid coils H1 for Armature tube 14 mm, with electrical connection form A
Material solenoid coil Copper, Steel, Thermoplastic
Material winding Copper
Note on materials RoHS-compliant
LABS (PWIS) conformity VDMA24364 zone III
Operating and environmental conditions - Solenoid coils H1 for Armature tube 14 mm, with electrical connection form A
Nominal operating voltage 24 V DC 110 V AC/50-60 Hz 230 V AC/50-60 Hz
Ambient temperature -20 ... 50°C
Restrictions for environmental
and media temperature
(with limited duty cycle), -20 ... 60° C
Corrosion resistance class
CRC
1)
4 - Very high corrosion stress
CE mark (see declaration of
conformity)
2)
– To EU Low Voltage Directive
UKCA marking (see declaration
of conformity)
– To UK regulations for electrical equipment
1) More information www.festo.com/x/topic/kbk
2) More information www.festo.com/catalogue/... Support/Downloads.
10
www.festo.com/catalogue/... 2025/10
537716055 | | 13.10.2025
Solenoid coil VACN
Dimensions
Dimensions – Solenoid coils VACN-N-A1 Download CAD data www.festo.com
[1] Plug pattern according to EN 175301-803, type A
[2] Solenoid coil
[3] Retaining screw M3
B1 H1 H3 L1 L2 L4
VACN-N-A1-... 30 29,5 15,3 47,6 35,5 14,7
