Solenoid coil VACN
Datasheet
ATEX - Solenoid coils N for Armature tube 9 mm, with electrical connection form A
EU certication None II 3GD II 2GD
ATEX category gas – II 3G II 2G
Explosion ignition protection
type for gas
– Ex nA IIC T5/T4 X Gc Ex ia IIC/IIB T6/T4 Gb
ATEX category dust – II 3D II 2D
Explosion ignition protection
type for dust
– Ex tc IIIC T95°C/T105°C X Dc Ex tb IIIC T80°C/T130°C Db
Explosion ambient tempera-
ture
– -20°C <= Ta <= +60°C T4, T130°C: -40°C <= Ta <= +85°C
T6, T80°C: -40°C <= Ta <= +50°C
Explosion protection certica-
tion outside the EU
– EPL Dc (GB); EPL Gc (GB) EPL Db (BR); EPL Db (CN); EPL Db (GB); EPL Db (IEC-
EX); EPL Gb (BR); EPL Gb (CN); EPL Gb (GB); EPL Gb
(IECEx)
Certicate issuing authority DNV TAA000011J CCC 2021322307003993
DNV 15.0188
DNV TAA000011J
GYJ21.1326
IECEx PTB 15.0013
PTB 09 ATEX 2043
Materials - Solenoid coils N for Armature tube 9 mm, with electrical connection Form A
Material housing Polymer, Steel
Material winding Copper
Material electrical contact Brass
Note on materials RoHS-compliant
LABS (PWIS) conformity VDMA24364-B2-L
Operating and environmental conditions - Solenoid coils N for Armature tube 9 mm, with electrical connection form A
Nominal operating voltage 24 V DC 230 V AC/50-60 Hz 120 V AC/60 Hz and 110V AC/50-60 Hz
EU certication None II 3GD II 2GD None II 3GD None II 3GD
Ambient temperature -20 ... 60°C -20 ... 50°C -20 ... 60°C
Corrosion resistance class
CRC
1)
2 - Moderate corrosion stress
CE mark (see declaration of
conformity)
2)
– To EU Explosion Protection Directive (ATEX) To EU Low Voltage
Directive
To EU Explosion Pro-
tection Directive
(ATEX)
To EU Low Voltage
Directive
To EU Explosion Pro-
tection Directive
(ATEX)
UKCA marking (see declaration
of conformity)
– To UK EX instructions To UK regulations
for electrical equip-
ment
To UK EX instruc-
tions
To UK regulations
for electrical equip-
ment
To UK EX instruc-
tions
Maritime classication
3)
See certicate
1) More information www.festo.com/x/topic/kbk
2) More information www.festo.com/catalogue/... Support/Downloads.
3) More information www.festo.com/catalogue/... Support/Downloads.
5
2025/10 www.festo.com/catalogue/...
537716055 | | 13.10.2025
Solenoid coil VACN
Datasheet
General technical data - Solenoid coils N for Armature tube 9 mm, with electrical connection plug M12x1, A-coded
Electrical connection 1, num-
ber of connections/cores
2 4
Conforms to standard ISO 20401 DESINA
Electrical connection 1, con-
nector system
M12x1, A-coded to EN 61076-2-101
Electrical connection 1, con-
nection type
Plugs
Electrical connection 1, type of
mounting
Screw-type lock
Type of actuation Electric
Type of mounting Via knurled nut
Mounting position optional
Signal status display LED
Electrical data - Solenoid coils N for Armature tube 9 mm, with electrical connection plug M12x1, A-coded
Characteristic coil data 24 V DC: 2.7 W
Permissible voltage uctua-
tions
+/- 10%
Duty cycle 100%
Insulation material class F
Insulation material class of
enamelled wire
H
Degree of protection IP65
Pollution degree 3
Materials - Solenoid coils N for Armature tube 9 mm, with electrical connection plug M12x1, A-coded
Material housing Polymer
Material solenoid coil Duroplast, Copper, Steel
Material winding Copper
Note on materials RoHS-compliant
LABS (PWIS) conformity VDMA24364-B2-L
Operating and ambient conditions – Solenoid coils N for armature tube 9 mm, with electrical connection plug M12x1, A-coded
Ambient temperature -20 ... 60°C
Corrosion resistance class
CRC
1)
2 - Moderate corrosion stress
1) More information www.festo.com/x/topic/kbk
6
www.festo.com/catalogue/... 2025/10
537716055 | | 13.10.2025
Solenoid coil VACN
Datasheet

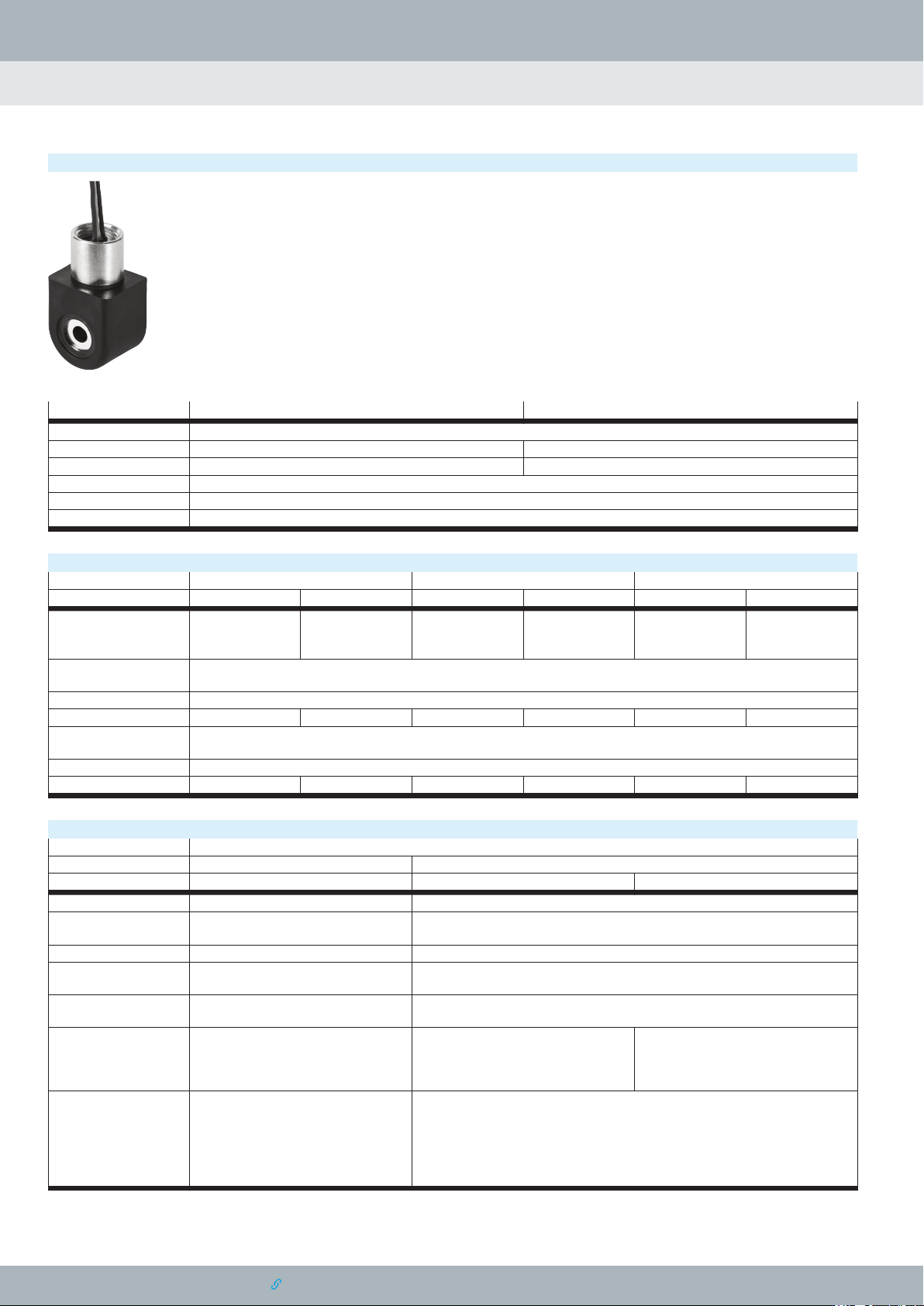

General technical data - Solenoid coils N for Armature tube 9 mm, with electrical connection cable
EU certication None II 2GD
Electrical connection Cable
Cable diameter – 7mm
Cable length 0.61 m 3 m; 10 m
Type of actuation Electric
Type of mounting Via knurled nut
Mounting position optional
Electrical data - Solenoid coils N for Armature tube 9 mm, with electrical connection cable
Nominal operating voltage 24 V DC 230 V AC/50-60 Hz 120 V AC/60 Hz and 110V AC/50-60 Hz
EU certication None II 2GD None II 2GD None II 2GD
Characteristic coil data 24 V DC: 4.6 W 24 V DC: 2.6 W 230 V AC: 50 Hz, pick-
up power 11.5 VA,
holding power 8.0 VA
230 V AC: 50/60 Hz,
power 2.1 VA
120 V AC: 60 Hz, pick-
up power 10.0 VA,
holding power 6.8 VA
110 V AC: 50/60 Hz,
power 2.4 VA
Permissible voltage uctua-
tions
+/- 10%
Duty cycle 100%
Insulation material class H F H F H F
Insulation material class of
enamelled wire
H
Degree of protection IP65
Certication Class1 Div1 to NEC 500 None Class1 Div1 to NEC 500 None Class1 Div1 to NEC 500 None
ATEX – Solenoid coils N for armature tube 9 mm, with electrical connection cable
Nominal operating voltage 24 V DC
EU certication None II 2GD
Cable length 0.61 3 10
ATEX category gas – II 2G
Explosion ignition protection
type for gas
AEx m II T4
Ex m II T4
Ex mb IIC T6 Gb
ATEX category dust – II 2D
Explosion ignition protection
type for dust
– Ex mb IIIC T80°C Db
Ex mb tb IIIC T80°C Db
Explosion ambient tempera-
ture
-20°C <= Ta <= +60°C -20°C <= Ta <= +40°C (block)
-20°C <= Ta <= +50°C (single)
Explosion protection certica-
tion outside the EU
Class I, Div. 1 (CA); Class I, Div. 1 (US); Class I, Div.
2 (CA); Class II, Div. 1 (CA); Class II, Div. 1 (US);
Class III, Div. 1 (CA); Class III, Div. 1 (US); EPL Gb
(US)
EPL Db (BR); EPL Db (CN); EPL Db (GB); EPL Db (IEC-
EX); EPL Gb (BR); EPL Gb (CN); EPL Gb (GB); EPL Gb
(IECEx)
EPL Db (CN); EPL Db (GB); EPL Db (IEC-EX); EPL Gb
(CN); EPL Gb (GB); EPL Gb (IECEx)
Certicate issuing authority CSA 265489
DNV TAA000011J
FM 3053936
CCC 2021322307003994
DNV 15.0189X/02
DNV TAA000011J
GYJ21.1327X
IECEx PTB 15.0016X
PTB 14 ATEX 2027 X
