Explanation Document of Dual Lane System
YS24(DL)・YS24X(DL)
SMTSoftwareEngineeringGroup
1. Summary
2. Limitations
3. The detail of each screen
4. The detail of machine workings
This document explains the purpose of the Dual Lane System and the
difference between the existing system.
Please refer to the other document “YS24SeriesReleaseDocument.ppt”, if
you want to know the machine layout or organization.
MDOC
-
SOFT50073
2
1. Summary
• Purpose of Dual Lane System
1. For energy saving and space saving
Two lines ability by one line cost and space.
->It is realized by measure A in the next page.
2. For shortening of the lead time and reduction of intermediate stock
by producing the both sides of the board simultaneously.
->It is realized by measure A in the next page.
3. For eliminating the loss of board transfer
In the case the board with a few mounting amount, the ratio of transfer
time to production time is large.
->It is eradicated by measure B in the next page.
MDOC
-
SOFT50073
3
1. Summary
ANC
“Synchronous
Transfer”
ANC
“Asynchronous
Transfer”
Transfer Mode
Mount Mode

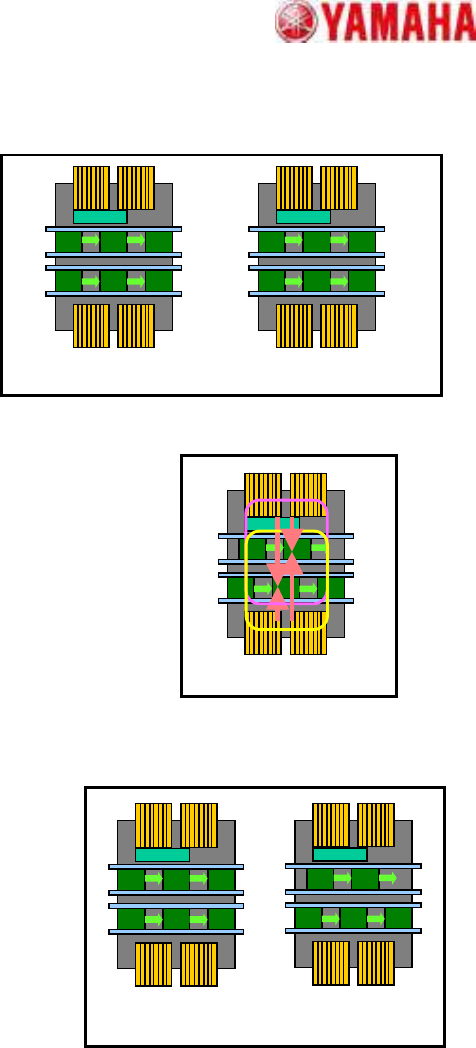

Measure B) Eradicating the loss of board transfer
Measure A) Production of the “same side of board” / “both
sides of board”
Other
“Asynchronous Transfer” and “Synchronous Transfer” are selectable as a transfer mode.
1. “Synchronous Transfer”
A timing of the starting and finishing mounting synchronizes.
The combination with “Each Lanes” mount mode is not possible.
When it is necessary to make the board count at each lanes, this transfer mode is
used.
2. “Asynchronous Transfer”
Each lane works by a timing according to the condition of each.
“Each Lanes”
The production is performed for near side and far side boards sequentially.
Board transfer is executed in one lane during the mounting is executed in the other
lane. So the board transfer CT becomes “0”.
When there are many kinds of parts and it cannot be set at one side feeder plate,
thismount mode is used.
ANC
“Each Lanes”
「Type-1」
Type-1/Type-2
A AA
ANC
A AA
A AA
ANC
B BB
「Type-2」
The following two options are selectable.
Type-1 : Producing the same side of board
Type-2 : Producing the both sides of board
The Option setting file is necessary.
When only “Type-1” is set in the machine, the production of both sides of
board cannot be performed.
