MDOC - SOFT50073 19 • “Unit” button -> “ Convey or” tab and “Conveyor Widt h” screen [Lane sel ect button] This button is newly ad d ed , th e information of a chose n lane is dis played. [“Conv eyor W idth” scre en] …
MDOC
-
SOFT50073
18
• Other setting about MIS
[“Unit Log” -> “Conveyor” tab]
The “Lane Select” combo box for filtering the conveyor
log is displayed.
3. The detail of each screen

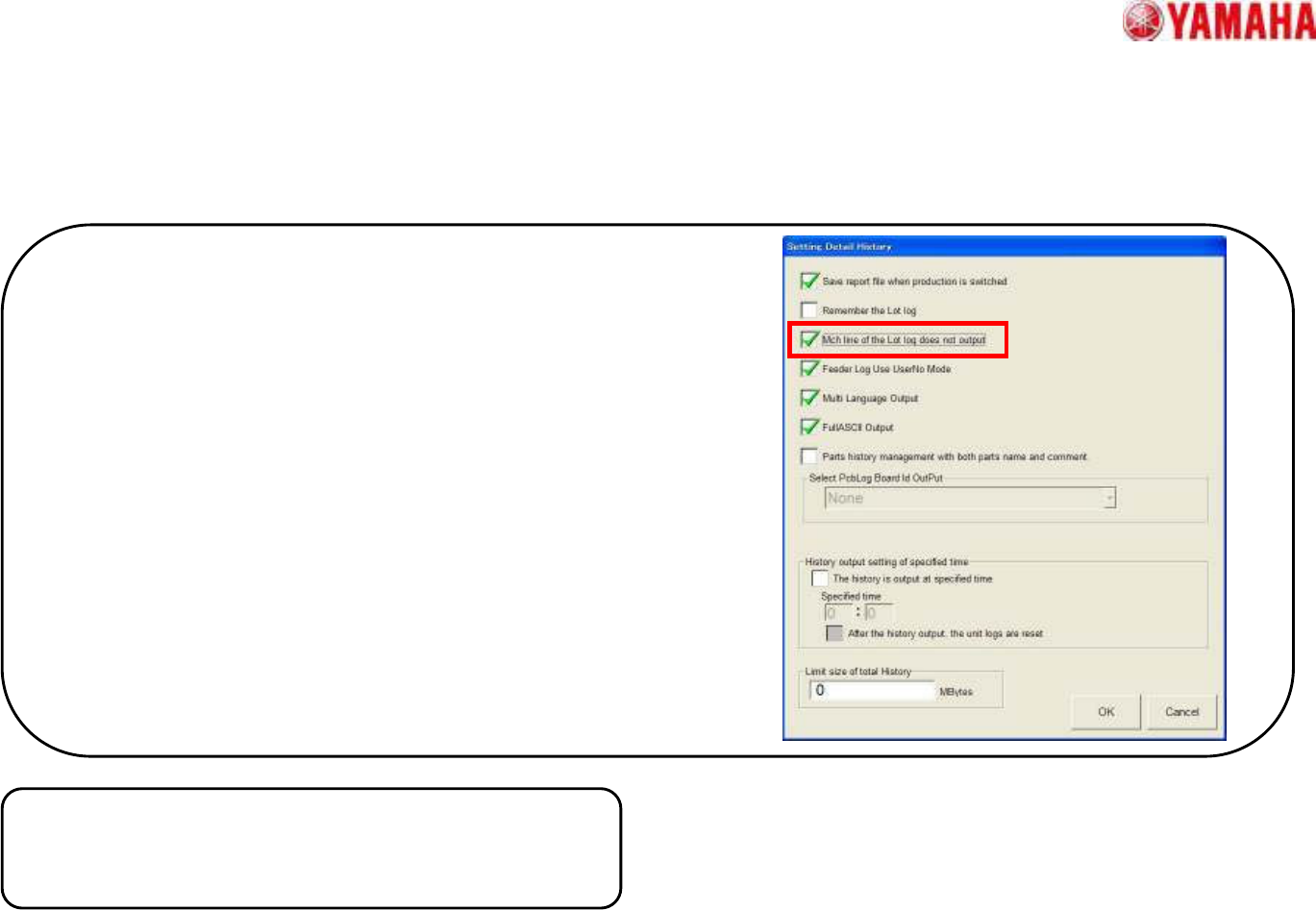

In order to display the log without the “MCH” row, please set [Software
Setting] - [History] - [Detail History setting] - [Mch line of the Lot log
does not output] to “checked state”.
By this setting, following two rows is displayed at Program log per one
lot.
A. The log of Lane1 ( contents of 1 + 2 )
B. The log of Lane2 ( contents of 3 + 4 )
[About the setting “Mch Line of the Lot log does not output”]
The “MCH” row in Program log
In the machine with two lane and one stage, the following Program
logs are usually output.
1. The log of Lane1, Stage1
2. The log of Lane1 whole
3. The log of Lane2, Stage1
4. The log of Lane2 whole
5. The log of whole machine
MDOC
-
SOFT50073
19
• “Unit” button -> “Conveyor” tab and “Conveyor Width” screen
[Lane select button]
This button is newly added, the
information of a chosen lane is
displayed.
[“Conveyor Width” screen]
The conveyor width of each lane can be
set each other.
The range which can be input to every
lane is limited. When only one side lane
is used, please set the check box of the
unused lane to “unchecked state”.
Example)
In the case of both check box is “checked
state”, when 175mm is input into Lane1,
it can be input up to 264mm at Lane2.
In the case of the check box of Lane1 is
unchecked, it can be input up to 390mm.
3. The detail of each screen
MDOC
-
SOFT50073
20
4. The detail of machine workings
• In this chapter, the differences of machine workings from the
conventional single lane machine is explained.
