• [Monitor] – [Main] tab and [Detail] tab
[Lane select button]
This button is newly added, the
information of a chosen lane is
displayed.
3. The detail of each screen
MDOC
-
SOFT50073
15
• [Monitor] - [Fiducial] tab and [Badmark] tab
[Lane select button]
This button is newly added, the
information of a chosen lane is
displayed.
3. The detail of each screen
MDOC
-
SOFT50073
16

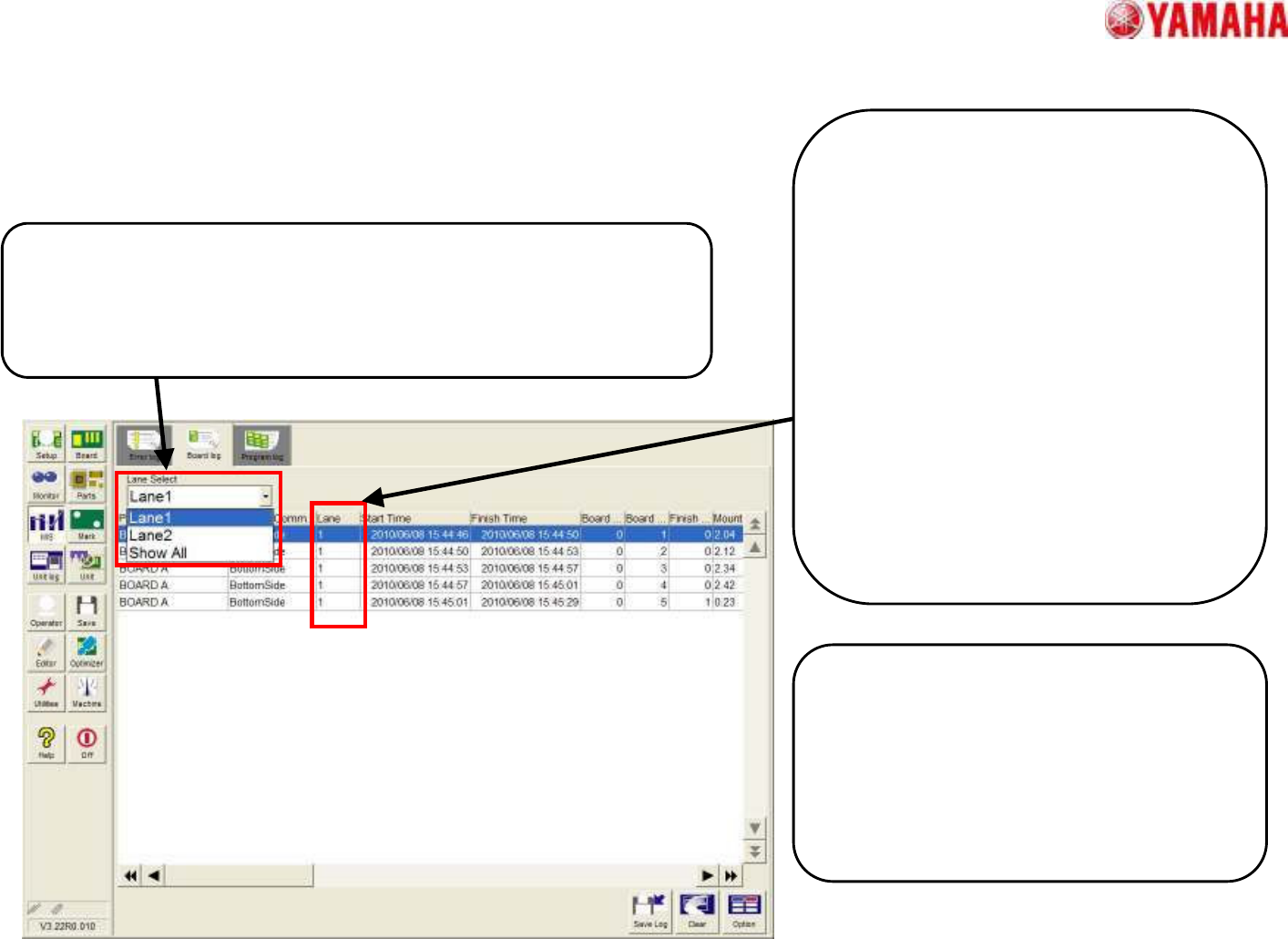

• [MIS] - [Board log] tab
[“Lane Select” combo box]
This button is for filtering of the board log data.
In the case of the machine which has multi lane and multi stage, the
stage select combo box is displayed next to lane select combo box.
[Additional Items]
“Lane”
The number of the conveyor lane where the board
is produced is displayed.
“Other Lane Wait Time”
The following time is displayed.
A) In the auto-running with an “Each Lanes” mode,
it is the time from the end of fixing the board until
the beginning of mounting while the mounting is
executed in the other lane.
B) In the auto-running with a “Synchronous
Transfer” mode, it is the time from the end of
fixing the board in one conveyor until the end of
fixing the one in the other lane.
“Operation Stop Time”
The time from pressing the [STOP] button until
restarting the auto-running is displayed. This time
is not displayed in before version.
[Board log file (PcbLog.csv)]
With the change of the Board log, the file version of
Board log is changed as follows.
“V3.00” -> “V3.10”
“V3.01” -> “V3.10”
The board log file of every lane is output at the same
time to acquire board log every lane.
“PcbLogL1.csv” / “PcbLogL2.csv”
