Installation of Trace Service and Monitor
Installation Trace Service
Installation Manual SIPLACE Traceability 3.5 21
► The installation of Trace Service will begin.
► The installation is successfully finished. Click Close
to exit.
The SIPLACE Traceability program group with the pro-
grams and shortcuts was added to the Windows Start
menu (1):
▪ SIPLACE Traceability
– Traceability Error Reporting
– Traceability Service Manager Tray Icon
– Administration
– Uninstall Traceability Service
Installation of Trace Service and Monitor
Trace Monitor Installation
22 Installation Manual SIPLACE Traceability 3.5
4.3 Trace Monitor
4.3.1 Installation
4.3.1.1 Installation Trace Monitor 3.5
► Place the SIPLACE Traceability CD into the CD-ROM
drive of your SIPLACE Pro computer. The start
screen will appear.
► Make sure that the following software components
available from the Support Media DVD are already in-
stalled:
▪ (1) Java 2 JRE 1.6
▪ (2) Tomcat 5.5
▪ (3) Microsoft.NET 3.5 SP1 Framework
▪ (4) MSXML Core Services 6.0
NOTICE
Upgrade
For upgrading an installed Trace Monitor software please see the section "6 Upgrade" [ ➙ 33].
► Select Traceability Monitor 3.5. You will be guided
through the Trace Monitor installation procedure.
The dialog boxes shown below will be displayed during
the installation procedure.
Installation of Trace Service and Monitor
Installation Trace Monitor
Installation Manual SIPLACE Traceability 3.5 23

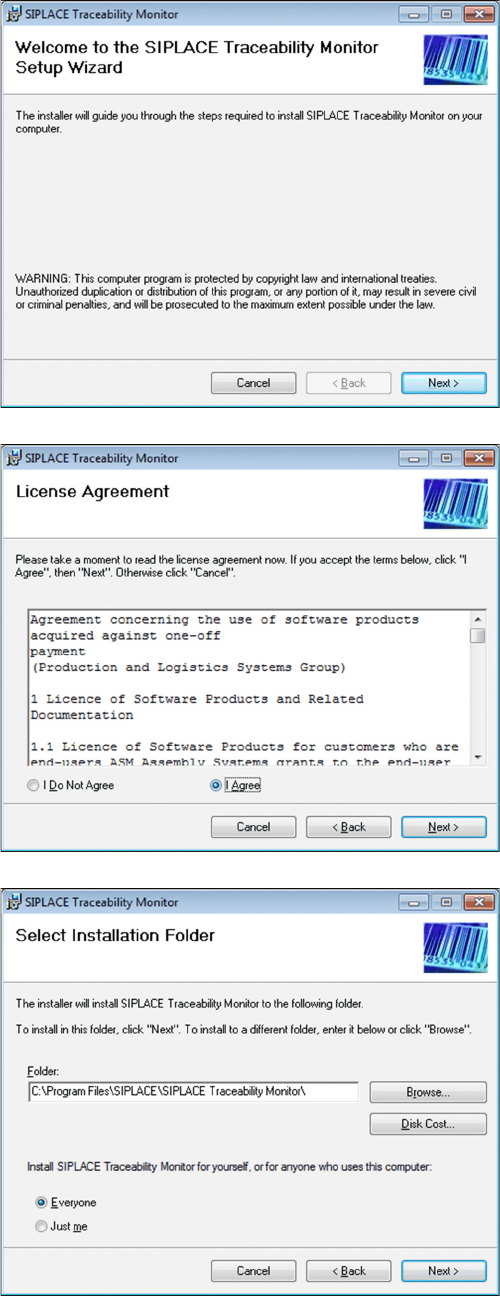

The Welcome dialog will appear.
► Click on Next to continue the installation procedure.
► Read the license agreement. If you agree with the
conditions, click on I Agree, otherwise click on I Do
Not Agree. If you select I Do Not Agree, the installa-
tion procedure will be terminated.
► Click on Next to continue the installation procedure.
► Now specify the folder in which you wish to install the
application. The default folder is C:\Program
Files\SIPLACE\SIPLACE Traceability Monitor\. You
can alter the default installation folder by using the
Browse… button.
