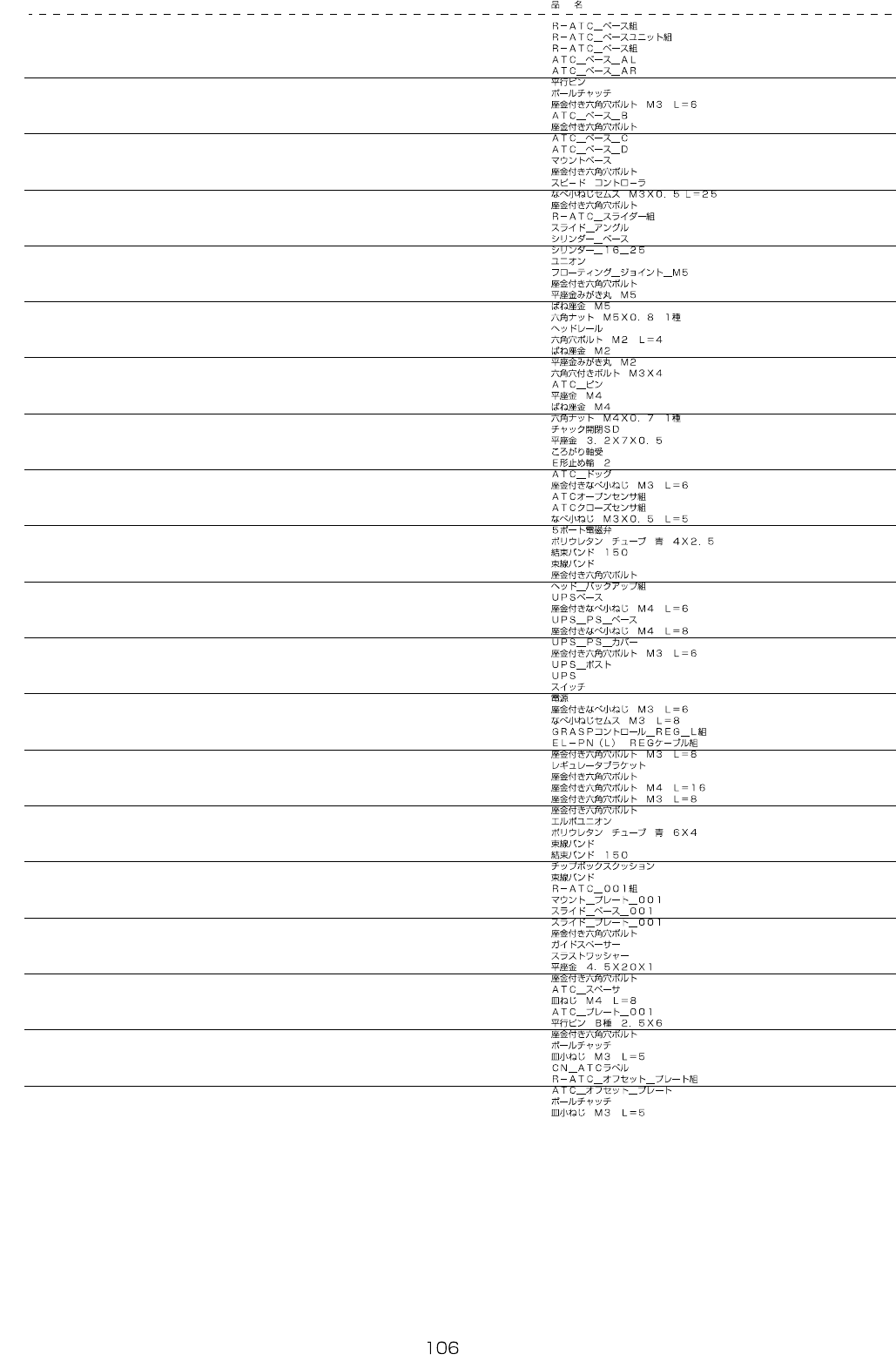

53.R-ATCCOMPONENTS
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-74767 R-ATC_BASE_ASSY 1
2 401-74768 ASM_R-ATC_BASE_UNIT (1)
3 401-74769 ASM_R-ATC_BASE (1)
4 401-74770 ATC_BASE_AL (1)
5 401-74771 ATC_BASE_AR (1)
6 PH-0400100-U0 PARALLELPIN (2)
7 400-51573 BALLCATCH (2)
8 SL-6030692-TN SCREWM3L=6 (4)
9 401-74772 ATC_BASE_B (1)
10 SL-6051292-TN BOLT (4)
11 401-74773 ATC_BASE_C (1)
12 401-74774 ATC_BASE_D (2)
13 HX-0070600-0A MOUNTBASE (5)
14 SL-6041292-TN SCREW (12)
15 PC-0124010-00 SPEEDCONTROLLER (2)
16 SL-4032591-SC SCREWM3X25 (2)
17 SL-6062592-TN SCREW (4)
18 401-74775 ASM_R-ATC_SLIDER (1)
19 401-74776 SLIDE_ANGLE (1)
20 401-74777 CYLINDER_BASE (1)
21 401-74778 CYLINDER_16_25 (1)
22 PJ-3040405-04 UNION (2)
23 401-74779 FLOATING_JOINT_M5 (1)
24 SL-6042042-TN SCREW (2)
25 WP-0531001-SC WASHERM5 (1)
26 WS-0510002-KN SPRINGWASHERM5 (1)
27 NM-6050001-SC NUTM5X0.8TYPE1 (1)
28 400-49189 HEADRAIL (1)
29 SM-6020402-TN BOLTM2L=4 (2)
30 WS-0210002-KN SPRINGWASHERM2 (2)
31 WP-0220301-SC WASHERM2 (2)
32 SM-6030402-TN SCREWM3X4 (2)
33 401-74780 ATC_PIN (1)
34 WP-0430801-SC WASHERM4 (1)
35 WS-0410002-KN SPRINGWASHERM4 (1)
36 NM-6040001-SC NUTM4X0.7TYPE1 (1)
37 E1426-726-000 CHUCKO-SSD (1)
38 WP-0320501-SC WASHERM3 (2)
39 SB-1030002-00 BEARING (1)
40 RE-0200000-K0 E-RING2 (1)
41 401-74781 ATC_DOG
(1)
42 SL-4030691-SC SCREWM3L=6 (2)
43 400-76842 ATCOPENSENSASM (1)
44 400-76843 ATCCLOSESENSASM (1)
45 SM-4030501-SC SCREWM3X0.5L=5 (4)
46 PV-1502093-00 5PORTELECTROMAGNETICVALVE (1)
47 BT-0400251-EA URETHANETUBEBLUE4X2.5 (3)
48 EA-9500B02-00 CABLEBAND150 (20)
49 EA-9500B01-00 CABLEBAND (10)
50 SL-6051292-TN BOLT (2)
51 401-37131 HEAD_BUCKUP_ASM (1)
52 401-43020 UPS_BASE (1)
53 SL-4040691-SC SCREWM4L=6 (3)
54 401-36972 UPS_PS_BR (1)
55 SL-4040891-SC SCREWM4L=8 (4)
56 401-36973 UPS_PS_COVER (1)
57 SL-6030692-TN SCREWM3L=6 (4)
58 401-36974 UPS_POST (4)
59 400-95745 UPS (1)
60 HA-0052900-00 SWITCH (1)
61 HX-0047900-00 POWERSUPPLY (1)
62 SL-4030691-SC SCREWM3L=6 (4)
63 SL-4030891-SC SCREWM3X8 (4)
64 401-37160 GRASPCONTROL_REG_L_ASM (1)
65 401-36487 EL-PN(L)REGCBLASM (1)
66 SL-6030892-TN SCREWM3L=8 (4)
67 401-37000 REG_BR (1)
68 SL-6041092-TN SCREW (1)
69 SL-6041692-TN SCREW (1)
70 SL-6030892-TN SCREWM3L=8 (1)
71 SL-6040892-TN BOLT (3)
72 PJ-3040652-01 ELBOWUNION6XPT1/4 (2)
73 BT-0600400-EC URETHANETUBEBLUE6X4 (2)
74 EA-9500B01-00 CABLEBAND (5)
75 EA-9500B02-00 CABLEBAND150 (5)
76 400-45986 CHIPBOXCUSHION (1)
77 HX-0006500-0B CABLEBAND (3)
78 401-74782 ASM_R-ATC_001 1
79 401-74783 MOUNT_PLATE_001 (1)
80 401-74784 SLIDE_BASE_001 (2)
81 401-74785 SLIDE_PLATE_001 (1)
82 SL-6041092-TN SCREW (6)
83 400-45975 GUIDESPACER (4)
84 E3404-700-000 THRUSTWASHER (8)
85 WP-0451016-SP WASHER4.5X20X1 (4)
86 SL-6041042-TN BOLT (4)
87 401-74786 ATC_SPACER (4)
88 SM-1040852-TP DISHSCREW (4)
89 401-74787 ATC_PLATE_001 (1)
90 PH-0250060-U0 PARALLELPINTYPEB2.5X6 (8)
91 SL-6041492-TN SCREW (4)
92 400-51573 BALLCATCH (2)
93 SM-1030501-SC SCREWM3L=5 (4)
94 401-36970 CN__ATC_LABEL (1)
95 401-75384 ASM_R-ATC_OFFSET_PLATE 1
96 401-75385 ATC_OFFSET_PLATE (1)
97 400-51573 BALLCATCH (2)
98 SM-1030501-SC SCREWM3L=5 (4)
- -
54.SMTFEEDERCOMPONENTS
5
4
6
7
8
8
1 6
7
1 0
2 5
2 6
2 5
2 6
2 4
3
1 2
2 7
2 7
9
1 2
1 1
1 4
1 3
1 5
2 0
2 1
2 2
2 31 9
1 7
1 8
2 8
3 0
2 9
