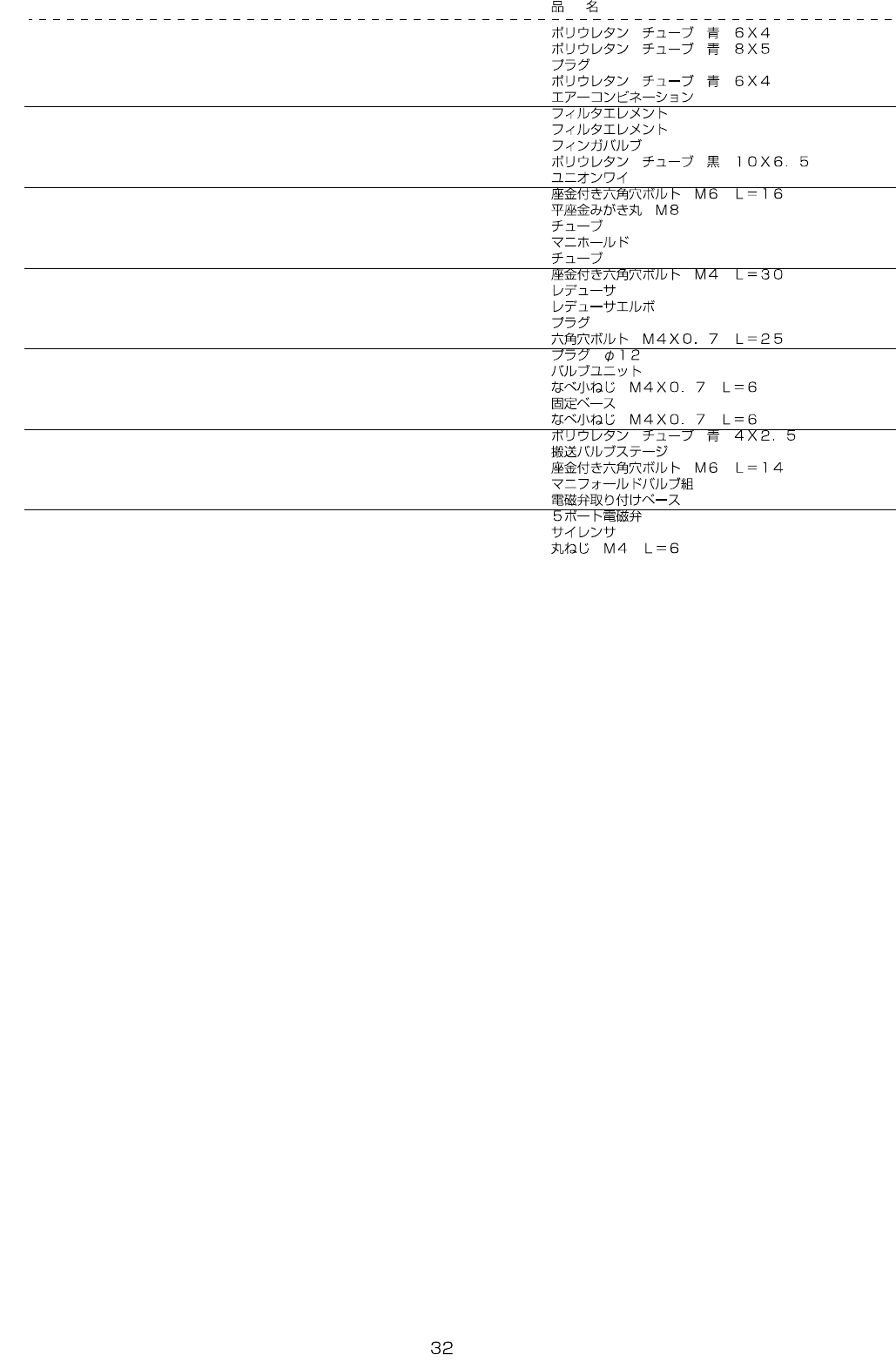

- - 17. X-YCO MPONENTS(1)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 BT-0600400-EC URETHANETUBEBLUE6X4 12

2 BT-0800501-EA URETHANETUBEBLUE8X5 16

3 PJ-0252000-03 PLUG 1

4 BT-0600400-EC URETHANETUBEBLUE6X4 8

5 400-63483 AIRCOMBINATION 1

6 PF-9010060-00 FILTERELEMENT (1)

7 PF-9010100-00 FILTERELEMENT (1)

8 PV-0152120-00 FINGERVALVE 1

9 BT-1000651-EB URETHANETUBEBLACK10X6.5 1.7

10 PJ-3081000-01 UNIONY 1

11 SL-6061692-TN SCREWM6L=16 4

12 WP-0841601-SC WASHERM8 4

13 BT-1200801-EF TUBE 0.5

14 PJ-3091200-03 MANIFOLD 1

15 BT-1200801-EF TUBE 1.3

16 SL-6043092-TN SCREWM4L=30 2

17 PJ-3010600-03 REDUCER 4

18 PJ-3040600-01 REDUCERELBOW 3

19 PX-9500070-00 PLUG 2

20 SM-6042502-TN SCREWM4X0.7L=25 2

21 PJ-0200000-03 PLUGROUND12 1

22 401-37054 VALVE_UNIT 1

23 SM-4040601-SC SCREWM4X0.7L=6 (4)

24 HX-0029400-00 FIXEDBASE (4)

25 SM-4040601-SC SCREWM4X0.7L=6 (4)

26 BT-0400251-EA URETHANETUBEBLUE4X2.5 (6)

27 401-36824 CONVEYOR_VALVE_STAGE (1)

28 SL-6061492-TN SCREWM6L=14 (2)

29 401-36834 MANIFOLD_VALVE_ASM (1)

30 PV-9150050-00 SOLENOIDVALVEINSTALLINGBASE (1)

31 PV-1502093-00 5-PORTSOLENOIDVALVE (2)

32 PX-0500030-00 SILENCER (1)

33 SM-3040652-TN SCREWM4L=6 (2)

- -

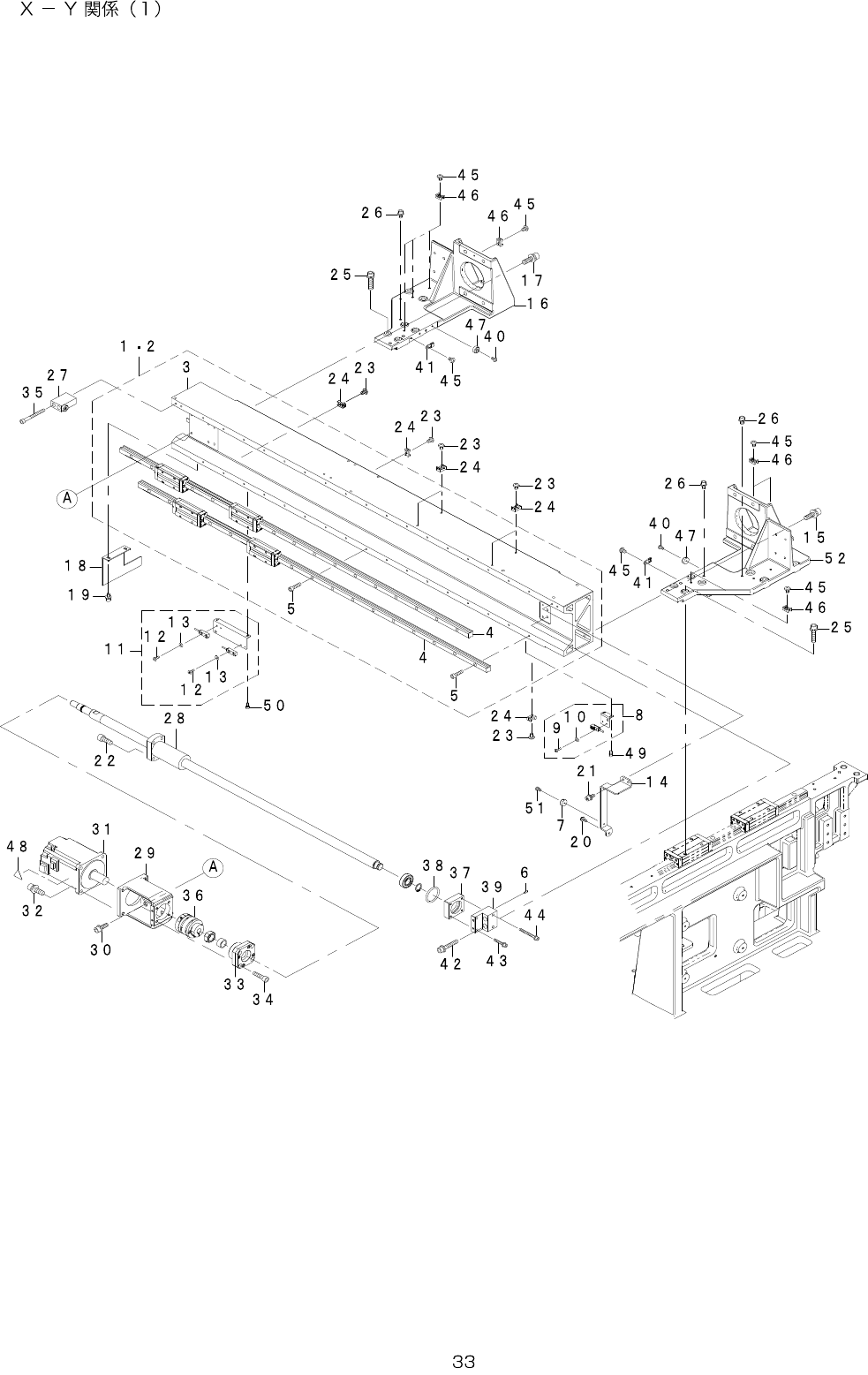

17.X-YCOMPONENTS(1)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-37048 X_AXIS_FRAME_ASM 1

2 401-13992 XAXISFRAMEASM

1

3 401-36745 X_AXIS_FRAME (1)

4 400-71325 XLMGUIDEL (2)

5 SM-6041602-TN SCREWM4X16 (34)

6 PH-0300082-C0 PIN 2

7 400-49671 COVERCUSHION 2

8 401-37095 XPLUSLMTSENSORASSY 1

9 SM-4860801-SC SCREWM2.6L=8 (1)

10 WP-0320501-SC WASHERM3 (1)

11 401-37096 XMINUSLMTSENSORASSY 1

12 SM-4860801-SC SCREWM2.6L=8 (2)

13 WP-0320501-SC WASHERM3 (2)
