Fing er Con ve yor = (M) Rol ler Co nve yor = (R) Pin Cha in Con vey or = (K) 11 Sele cti ve So ldering Noz z les Nozzle height w ith variable Z -A xis Nozzle height with variab le Z -A xis ECOSEL EC T 1 ≤ 90 m m (M) ≤ 5…
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
10

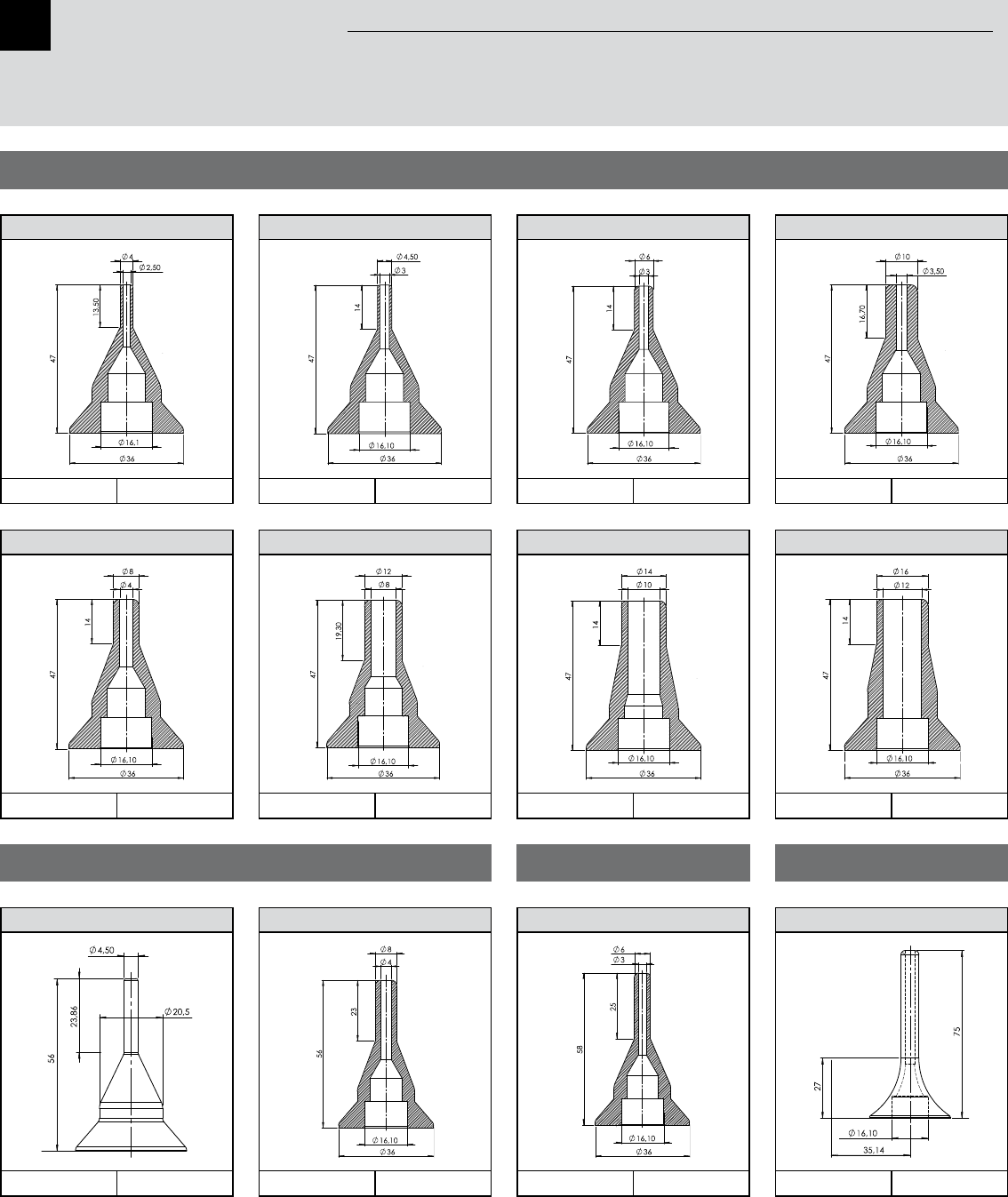

Selective Soldering Nozzles
Height 47 mm, B16,1
Height 56 mm, B16,1 Height 58 mm, B16,1
S NOZZLE 2,5/4,0; H=47; B16,1
33143 1 Pcs.
S NOZZLE 3,0/4,5; H=47; B16,1
6isk47957021a
1 Pcs.
S NOZZLE 3,0/6,0; H=47; B16,1
6isk47957020a
1 Pcs.
S NOZZLE 3,5/10,0; H=47; B16,1
25420 1 Pcs.
S NOZZLE 4,0/8,0; H=47; B16,1
6isk47957022a
1 Pcs.
S NOZZLE 8,0/12,0; H=47; B16,1
25421 1 Pcs.
S NOZZLE 10,0/14,0; H=47; B16,1
6isk47957023 1 Pcs.
S NOZZLE 12,0/16,0; H=47; B16,1
96112 1 Pcs.
S NOZZLE 3,0/4,5; H=56; B16,1
64673 1 Pcs.
S NOZZLE 4,0/8,0; H=56; B16,1
64654 1 Pcs.
S NOZZLE 3,0/6,0; H=58; B16,1
137134 1 Pcs.
Height 75 mm, B16,1
S NOZZLE 4,0/8,0; H=75; B16,1
184678 1 Pcs.
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
11
Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Height 90 mm, B16,1
Height 85 mm, B16,1
S NOZZLE 4,0/8,0; H=85; B16,1
138145 1 Pcs.
S NOZZLE 4,0/8,0; H=85; B16,1
184677 1 Pcs.
S NOZZLE 4,0/8,0; H=90; B16,1
162216 1 Pcs.
S NOZZLE 4,3/8,0; H=90; B16,1
168373 1 Pcs.
S NOZZLE 6,0/10,0; H=90; B16,1
162195 1 Pcs.
S NOZZLE 6,2/10,0; H=90; B16,1
168446 1 Pcs.
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
12
Figure Description Order No.
High temperature cain oil
LUBCON - special oil, Turmofluid 40B,
0,4 l Spraycan
6XOEL24-0.4S
LUBCON - special oil, Turmofluid 40B,
0,5 l bottle
6XOEL24-0.5
LUBCON - special oil, Turmofluid 40B,
1,0 l bottle
6XOEL24-1.0
High temperature grease UH1-96-402
delivery in tubes with 80 g
171146
OKS 250 Metal-free multi paste 250 g
Lubrication of toothed bars of width
adjustment, splined shafts and
separating agents for screws in the
hot area
210939
Lubrication set OKS 250 paste
tube 80 g and 5 lube brushes
- unsuitable by direct contact with
solder
211218
OKS 250 Metal-free multi paste 80 ml
unsuitable by direct contact with
solder
216540
Grease TAS-WT till 1400 °C - 100 g tube
LUBCON - special lubricant, TURMO-
PAST TAS WT, paste without dropping
points. Temperature application range
-30 °C up to +1400 °C (higher tahn 200
°C: the paste turns to a dry lubrication)
28444
Spindle grease, 50 g
NBU 15 for lubrication of the shaft
from the z-axis (Flex and dipmodul)
in selective and wave soldering
machines
210860
Grease gun filled w. Isoflex NBU15
contain 50 g grease
210996
Lubrication set Isoflex NBU15
tube 50 g and lube brush
214163
Grease Klueber Microlube GL 261 40 g
Lubrication of linear track with high
stress
210862
Lubricants & Cleaning Products
Figure Description Order No.
Pencil for grease
211209
Grease gun
Pressol plunger push press with cup-
ped and pointed adapter, connection
thread M10x1 size 80 cm³ AD43 mm
L = 140 mm
92159
High temp. grease Barrierta tube 50 gr.
for filling the high temperature
bering 6LAP40-15FD-T
163081
Lubricants Lubricants
Cleaning Products
Figure Description Order No.
ESD-Cleaner 1 l
for cleaning of ESD- slices - not
suitable for acrylic slices
211125
Reinigungsset Acrylscheiben + ESD Folie
ESD - cleaner with mircofiber high
ressistance cloth
211214
cleaning cloth vermop-Softy
for cleaning of acrylic glass slices in
machine covers in conjunction with
cleaner 211125
211207
Cleaning cloth for sprayheads
cleaning clothes lint-free, 100x100
17231
Syggol Cleaner in 5 l CAN
Cleaner for high contamination espe-
cially in reflow- and wave soldering
machines.
302619
Needle for cleaning 130-270 micro nozzle
for sprayhead of the versaflow and
ecocell selective soldering machine
78722
