Fing er Con ve yor = (M) Rol ler Co nve yor = (R) Pin Cha in Con vey or = (K) 9 Sele cti ve So ldering Noz z les Nozzle height w ith variable Z -A xis Nozzle height with variab le Z -A xis ECOSEL EC T 1 ≤ 90 m m (M) ≤ 57…
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
8

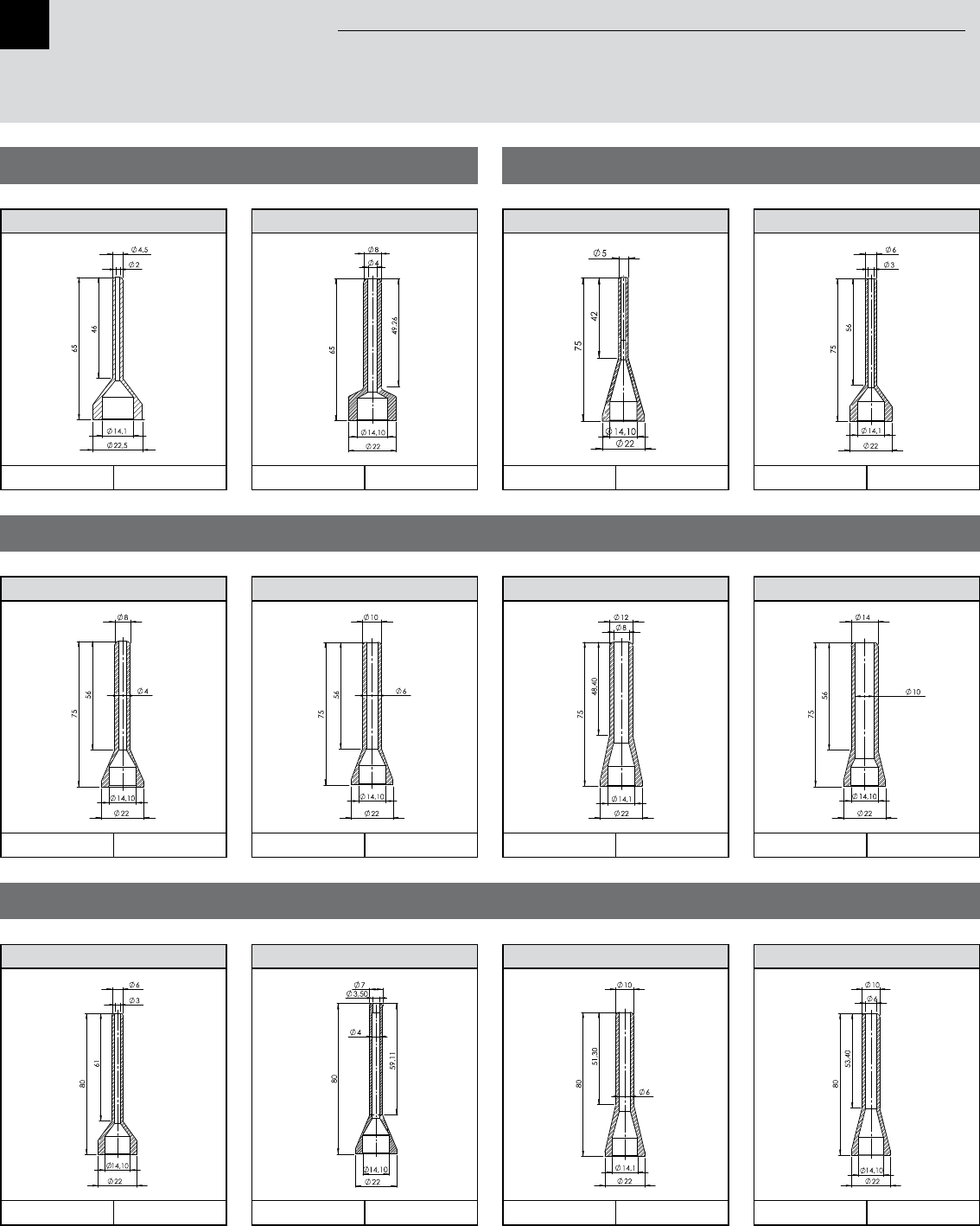

Selective Soldering Nozzles
Height 65 mm, B14,1
S NOZZLE 2,0/4,5; H=65; B14,1 ,5
250821 1 Pcs.
S NOZZLE 4,0/8,0; H=65; B14,1
135253 1 Pcs.
Height 75 mm, B14,1
S NOZZLE 3,0/6,0; H=75; B14,1
216347 1 Pcs.
S NOZZLE 4,0/8,0; H=75; B14,1
206293 1 Pcs.
S NOZZLE 2,4/5,0; H=75; B14,1
300041 1 Pcs.
Height 75 mm, B14,1
S NOZZLE 6,0/10,0; H=75; B14,1
206294 1 Pcs.
S NOZZLE 8,0/12,0; H=75; B14,1
235693 1 Pcs.
Height 80 mm, B14,1
S NOZZLE 3,0/6,0; H=80; B14,1
278549 1 Pcs.
S NOZZLE 3,5/7,0; H=80; B14,1
213419 1 Pcs.
S NOZZLE 10,0/14,0; H=75; B14,1
251316 1 Pcs.
S NOZZLE 6,0/10,0; H=80; B14,1
211313 1 Pcs.
S NOZZLE 6,0/10,0; H=80; B14,1
251319 1 Pcs.
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
9
Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Height 80 mm, B14,1
S NOZZLE 8,0/12,0; H=80; B14,1
211314 1 Pcs.
S NOZZLE 10,0/14,0; H=80; B14,1
211315 1 Pcs.
Height 85 mm, B14,1
Height 85 mm, B14,1
Height 90 mm, B14,1
S NOZZLE 3,0/6,0; H=85; B14,1
278550 1 Pcs.
S NOZZLE 3,5/5,6; H=85; B14,1
229921 1 Pcs.
S NOZZLE 3,5/7,0; H=85; B14,1
229923 1 Pcs.
S NOZZLE 4,0/8,0; H=85; B14,1
316185 1 Pcs.
S NOZZLE 6,0/10,0; H=90; B14,1
314957 1 Pcs.
S NOZZLE 6,0/10,0; H=85; B14,1
316198 1 Pcs.
S NOZZLE 8,0/12,0; H=90; B14,1
314953 1 Pcs.
S NOZZLE 4,0/8,0; H=90; B14,1
197665 1 Pcs.
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
10
Selective Soldering Nozzles
Height 47 mm, B16,1
Height 56 mm, B16,1 Height 58 mm, B16,1
S NOZZLE 2,5/4,0; H=47; B16,1
33143 1 Pcs.
S NOZZLE 3,0/4,5; H=47; B16,1
6isk47957021a
1 Pcs.
S NOZZLE 3,0/6,0; H=47; B16,1
6isk47957020a
1 Pcs.
S NOZZLE 3,5/10,0; H=47; B16,1
25420 1 Pcs.
S NOZZLE 4,0/8,0; H=47; B16,1
6isk47957022a
1 Pcs.
S NOZZLE 8,0/12,0; H=47; B16,1
25421 1 Pcs.
S NOZZLE 10,0/14,0; H=47; B16,1
6isk47957023 1 Pcs.
S NOZZLE 12,0/16,0; H=47; B16,1
96112 1 Pcs.
S NOZZLE 3,0/4,5; H=56; B16,1
64673 1 Pcs.
S NOZZLE 4,0/8,0; H=56; B16,1
64654 1 Pcs.
S NOZZLE 3,0/6,0; H=58; B16,1
137134 1 Pcs.
Height 75 mm, B16,1
S NOZZLE 4,0/8,0; H=75; B16,1
184678 1 Pcs.
