Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
16

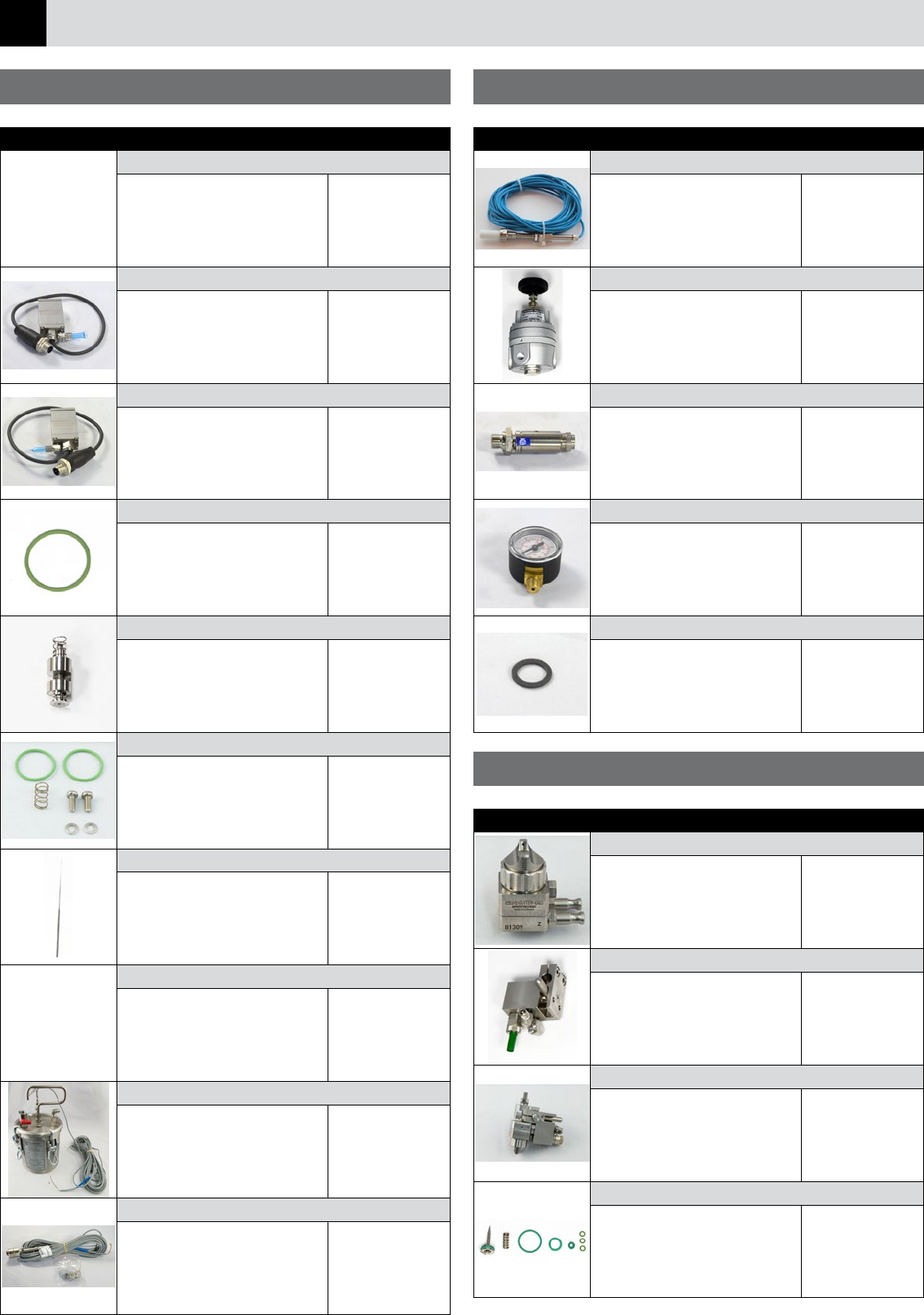

Figure Description Order No.
Sprayhead flux jet II - 130 micrometer
6FLX-REA06
Sprayhead flux jet II 1/180 micrometer
6FLX-REA08
Sprayhead flux jet II 1/270 micrometer
6FLX-REA07
Sealing ring for Wedotec-spray head
for nozzle plate of the sprayheads
6FLX-REA06, 6FLX-REA08 and 6FLX-
REA07
82240
Spring part with sealing, Wedotec
for sprayheads 6FLX-REA06, 6FLX-
REA08 and 6FLX-REA07
156252
Wear set Flux-Jet; Wedotec
content:
2x nozzle plate sealing
2x fixing srews for nozzle plate
2x safety washer
1x spring
156183
Cleaning needle 130 - 350 micrometer
for cleaning the nozzle plate from
sprayheads of the VERSAFLOW and
ECOCELL selective soldering machine
17233
Pressure tank 2 l. V4A 1.4404 bottom
pressure tank for selective soldering
machine
234045
flux container VF4 2ltr
274239
Float switch for spray pressure tank
203148
Fluxer Accessories
Fluxer Selective Machines Fluxer Selective Machines
Fluxer Powerflow Series
Figure Description Order No.
Level sensor
capactive level sensor for older
pressure tanks
6FLX-SPR-12
Precision pres reg 0,05-2 bar
pressure regulator for pressure tank
234045
101992
Over pressure valve
for pressure tank 234045
205266
Manometer 0-2,5 bar 1/8”
for pressure tank 234045
125875
PTFE Sealing 1/4” 25% Carbon
for pressure tank 234045
259583
Figure Description Order No.
Spray head, flood gate KA-2/SW jet: 0,3
110089
Quick change holder
for Sprayhead 110089
110091
Spray head complte, flood gate
set with sprayhead and quick change
mount
110095
Spray head repair kit, sealing
contains all mounted seals, the
needle and the spring
138113
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
17

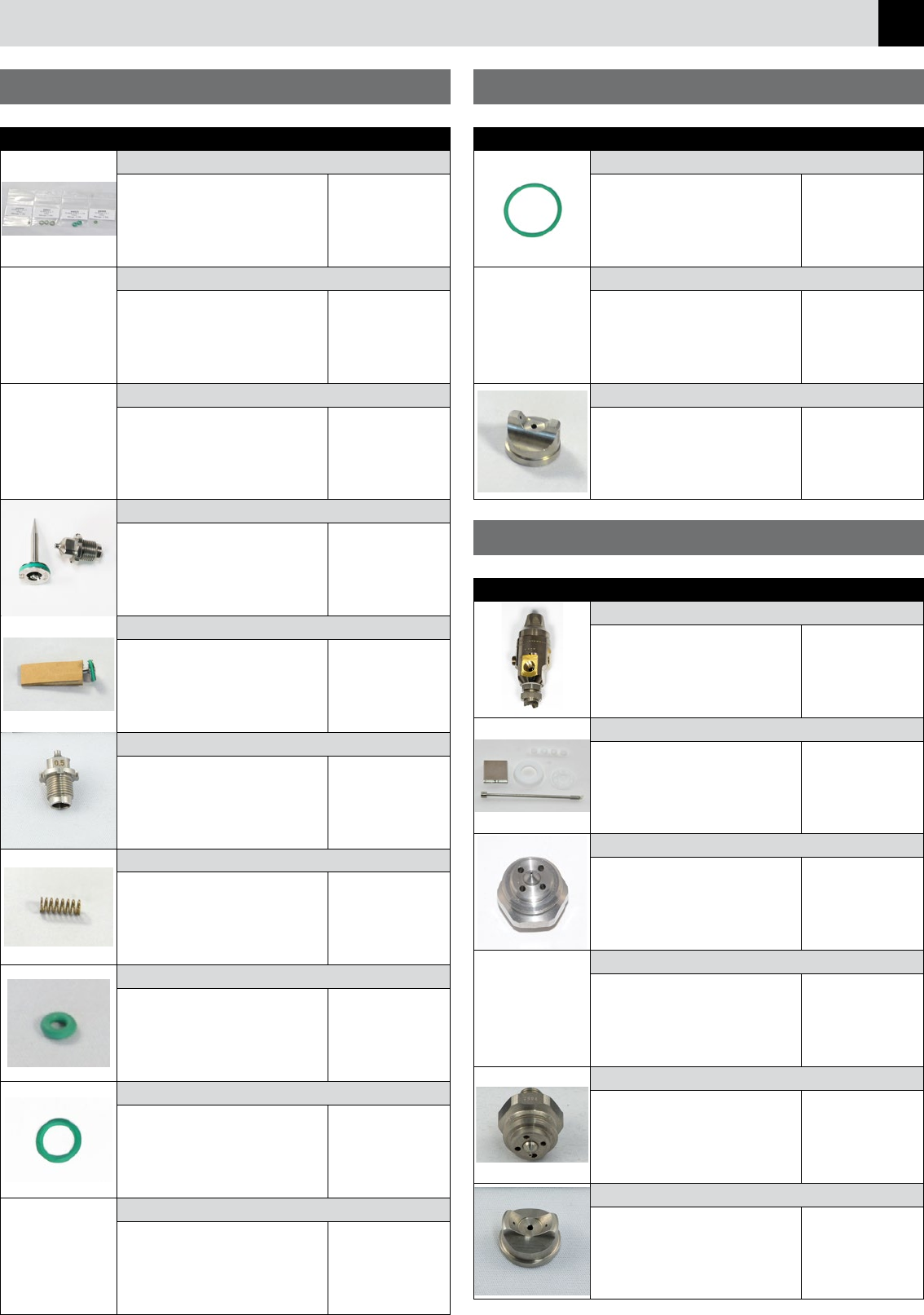

Figure Description Order No.
FC-holder(110091) repair kit, sealing
contains all installed seals
164292
Nozzle 0,3 mm Nr.210111 flood gate
fluid nozzle for 110089 with 0,3 mm
diameter
207521
Needle for flux head inox 1.4571
needle for gate sprayhead. Only
usage in conjunction with the fluid
nozzle 235321
235322
Spray head, flood gate jet/needle 0,5
set with needle and fluid nozzle 0,5
mm gate sprayhead. For reconstructi-
on from 0,3 mm to 0,5 mm diameter
136796
Needle 0,2/0,3 mm Nr.111670 flood gate
needle for sprayhead 110089 with 0,3
mm fluid nozzle
245214
Flux head 0,5 mm
fluid nozzle with 0,5 mm for gate
sprayhead. Only usage in conjunction
with the suitable needle 235322
235321
Pressure spring 0,7 x 13,5 mm 820017
for sprayhead 110089
233202
O-Ring 2,9x1,78 Viton article-no.:640026
234130
O-Ring 8,5x1,8 Viton article-no.:640366
234132
O-Ring 5x1 Viton article-no.:640077
236550
Fluxer Accessories
Fluxer Powerflow Series Fluxer Powerflow Series
Fluxer ETS, EWS and NWAVE Series
Figure Description Order No.
O-RING 18X1,5 Fa. Schütze ART. NR.640006
246024
Cap ring 23x10 mm Nr.410059 flood gate
266004
Spray nozzle air-cap 60° VA, flood gate
224571
Figure Description Order No.
Spray unit
contains all seals and needle
6ISK171009
Sprayhead-repair-kit
Enthält alle Dichtungen und die
Absperrnadel
6FLXSPR-14
Spray nozzle 2050 (stainless steel)
replacement fluid nozzle spraying
system standard
6FLXSPR-02
Spray nozzle 1650 (stainless steel)
fluid nozzle spraying systems for
lower flux quantity
6FLXSPR-02-S1
Spray nozzle 2850 (stainless steel)
fluid nozzle spraying systems for
higher flux quantity
6FLXSPR-02-S2
Air nozzle 67228- 45° V2A
6FLXSPR-03
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
18
Figure Description Order No.
Foam tube 250 mm, Dia. 41 mm
separately packed! Dust protection
6IN131
Foam tube 330 mm, Dia. 41 mm
middle pore side 10 µm; foam tube
packed separately because of dust
protection
6IN045-1
Foam Fluxer/Sensor Shuttle
Foam Fluxer
Sensor Shuttle PTP
Figure Description Order No.
Foam tube 400 mm, Dia. 41 mm
middle pore side 10 µm; foam tube
packed separately because of dust
protection
6IN045-2
Foam tube 450mm, Dia. 41 mm
middle pore side 10 µm; foam tube
packed separately because of dust
protection
6IN045-3
Figure Description Order No.
Ersa Sensor Shuttle
Temperature profiling system, suitable
for wave soldering and reflow soldering
machines, in real time during the
passage via bluetooth connection.
Delivered in hard case.
Calibration certificate as per ISO 9000.
Accessory consisting of:
1x Aluminum case with inlay
1x Shuttle beam
1x Measuring electronic and software
PTP
8x Thermocouple Ni/CrNi with plug
1x 10g high temperature solder
1 pair of service gloves size L
131150
Shuttle carrier
carrier for the sensor shuttle PTP
129920
Measurement Board f. Ersa Sensor Shuttle
measurement board for wave solde-
ring machine. Especially for usage
with the sensor shuttle PTP
159916
Li-Ionen Akku globalPoint ICS
replacement battery for the sensor
shuttle PTP 131150
212495
Antenna 50R/SMA-M TX,short stub antenna
replacement stub antenna for the
sensor shuttle PTP
201950
Antenna 50R/SMA-M RX bendable
replacement antenna for the sensor
shuttle PTP
223683
Figure Description Order No.
Thermocouple Ni/CrNi with plug
thermal element with the adapter for
ERSA sensor shuttle 500mm length
6ETHE2x0.20/500
Thermocouple comp. cable Ni/CrNi
yard goods
6ETHE2x0.20NI
Thermo element compensation cable
yard goods
6ETHE2x0.50NI
Thermo plug „K” Jumo, male
for connection of the thermal sensor
cable at the ERSA sensor shuttle
6ETHE-NI-ST
Thermo coupling „K” Jumo, female
opposite of the thermal plug
6ETH-NI-ST
6ETHE-NI-KU
Kapton Adhesive tape
high temperature tape for fixing of
the thermal sensors on the tempo-
rary measurement board
6ZT00160
Service gloves (pair)
for the hot area
size M
6HDSGLGEW-289
size L
6HDSGLGEW-290
