Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
5
Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)

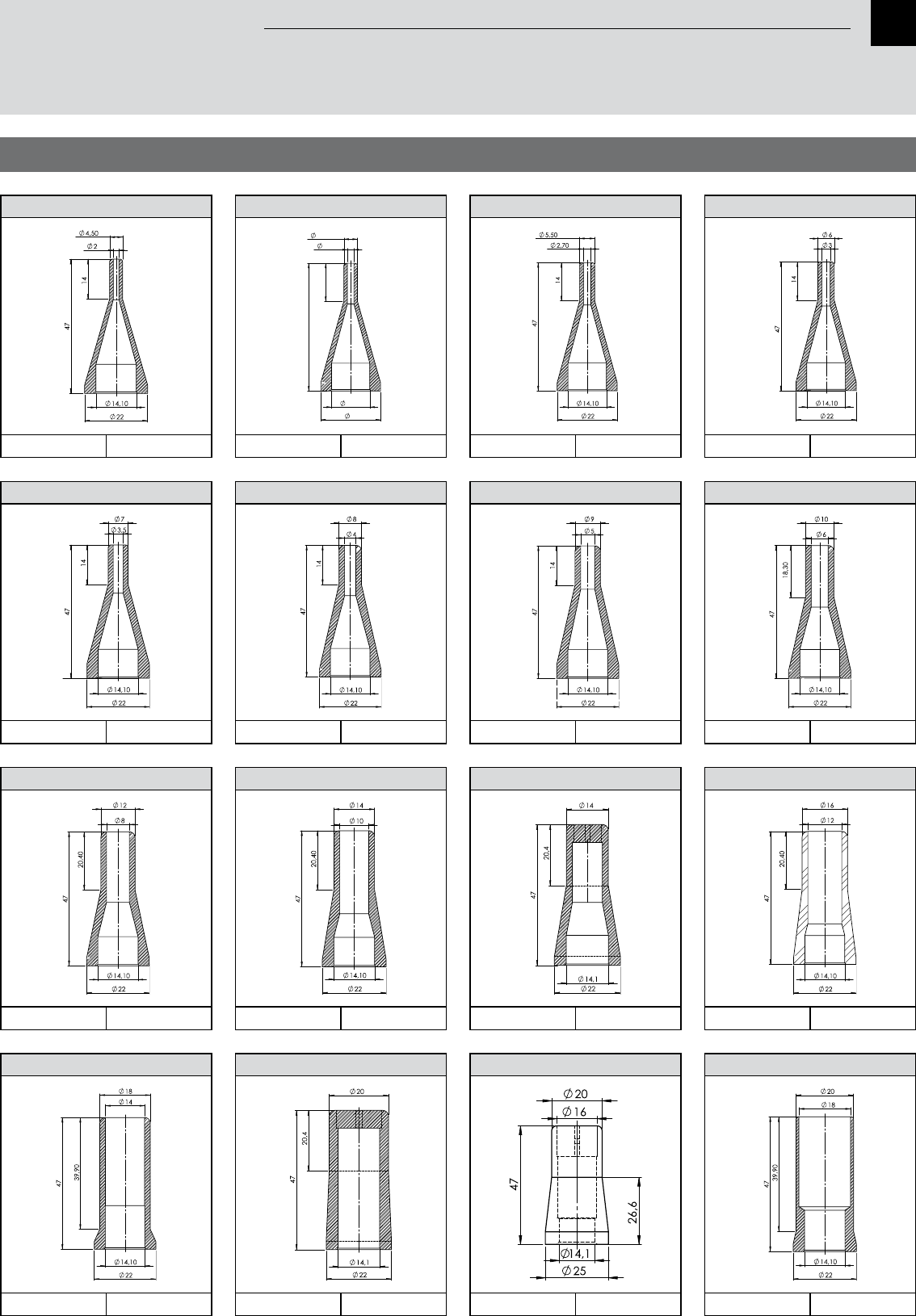

Height 47 mm, B14,1
S NOZZLE 2,0/4,5; H=47; B14,1
213510 1 Pcs.
S NOZZLE 3,0/6,0; H=47; B14,1
114609 1 Pcs.
S NOZZLE 3,5/7,0; H=47; B14,1
256501 1 Pcs.
S NOZZLE 4,0/8,0; H=47; B14,1
114611 1 Pcs.
S NOZZLE 2,4/5,0; H=47; B14,1
14,10
22
2,40
5
14
47
296767 1 Pcs.
S NOZZLE 2,7/5,5; H=47; B14,1
296788 1 Pcs.
S NOZZLE 5,0/9,0; H=47; B14,1
152894 1 Pcs.
S NOZZLE 6,0/10,0; H=47; B14,1
114613 1 Pcs.
S NOZZLE 8,0/12,0; H=47; B14,1
118615 1 Pcs.
S NOZZLE 10,0/14,0; H=47; B14,1
119274 1 Pcs.
S NOZZLE 10,0/14,0; H=47; B14,1; Cross
257563 1 Pcs.
S NOZZLE 12,0/16,0; H=47; B14,1
208094 1 Pcs.
S NOZZLE 14,0/18,0; H=47; B14,1
190959 1 Pcs.
S NOZZLE 16,0/20,0; H=47; B14,1; Cross
245562 1 Pcs.
S NOZZLE 16,0/20,0; H=47; B14,1; Cross
263686 1 Pcs.
S NOZZLE 18,0/20,0; H=47; B14,1
134354 1 Pcs.
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
6
Selective Soldering Nozzles

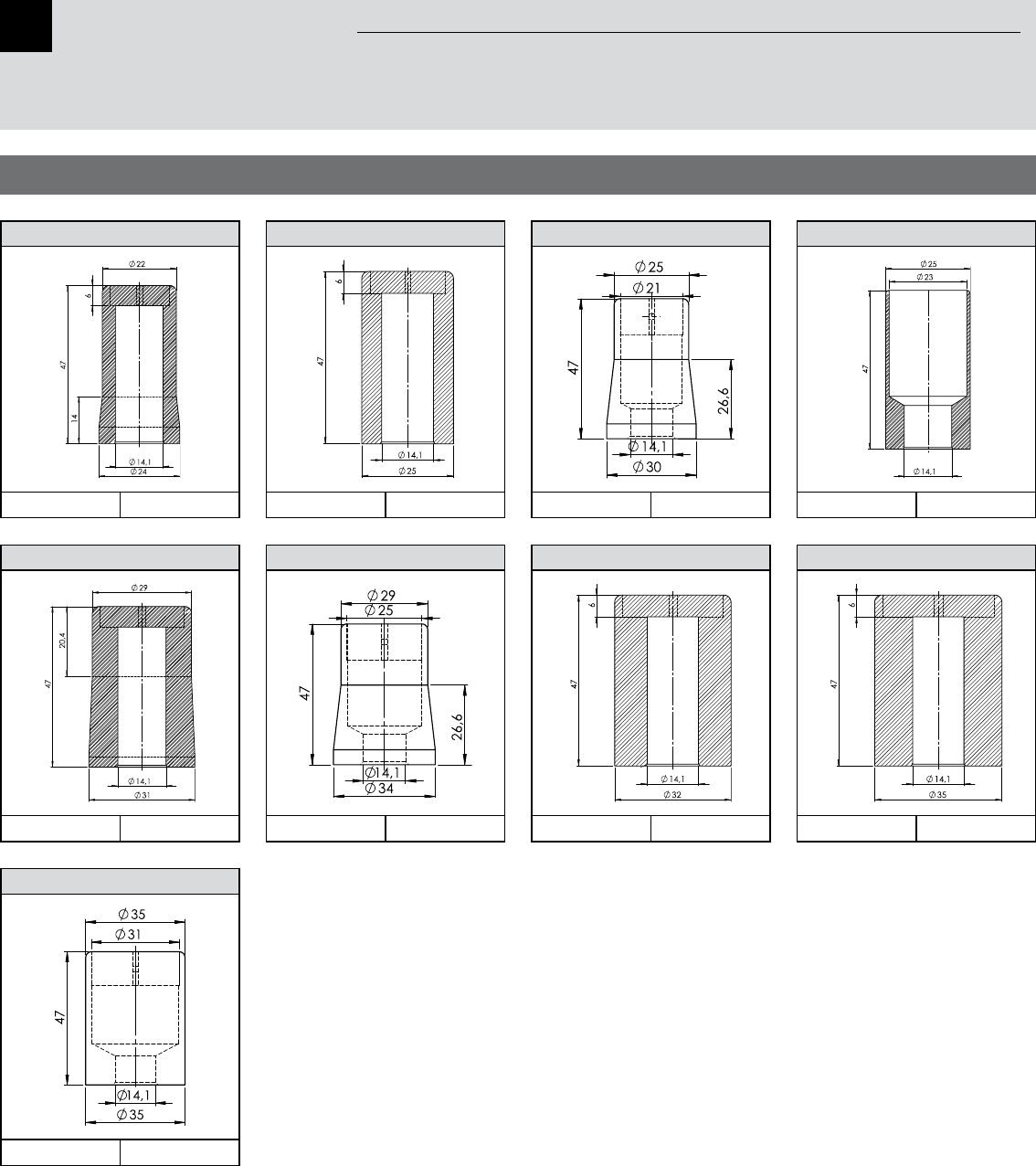

S NOZZLE 25,0/29,0; H=47; B14,1; Cross
245561 1 Pcs.
Height 47 mm, B14,1
S NOZZLE 25,0/29,0; H=47; B14,1; Cross
263514 1 Pcs.
S NOZZLE 28,0/32,0; H=47; B14,1; Cross
248298 1 Pcs.
S NOZZLE 31,0/35,0; H=47; B14,1; Cross
255975 1 Pcs.
S NOZZLE 31,0/35,0; H=47; B14,1; Cross
263689 1 Pcs.
S NOZZLE 21,0/25,0; H=47; B14,1; Cross
263020 1 Pcs.
S NOZZLE 23,0/25,0; H=47; B14,1
239623 1 Pcs.
S NOZZLE 18,0/22,0; H=47; B14,1; Cross
255046 1 Pcs.
S NOZZLE 21,0/25,0; H=47; B14,1
260489 1 Pcs.
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
7
Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 57 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 57 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 57 mm (R)
ECOSELECT 4
≤ 85 mm (R) ≤ 85 mm (R)
VERSAFLOW 4
≤ 85 mm (R) ≤ 85 mm (R)
ECOCELL
≤ 85 mm (R, K) ≤ 57 mm (R, K)
Height 57 mm, B14,1
Height 57 mm, B14,1
S NOZZLE 3,0/6,0; H=57; B14,1
130964 1 Pcs.
S NOZZLE 4,0/8,0; H=57; B14,1
189478 1 Pcs.
S NOZZLE 6,0/10,0; H=57; B14,1
189479 1 Pcs.
S NOZZLE 8,0/12,0; H=57; B14,1
203778 1 Pcs.
Height 62 mm, B14,1
Height 62 mm, B14,1
S NOZZLE 2,0/4,5; H=62; B14,1
248354 1 Pcs.
S NOZZLE 3,0/6,0; H=62; B14,1
199983 1 Pcs.
S NOZZLE 4,0/8,0; H=62; B14,1
199985 1 Pcs.
S NOZZLE 6,0/10,0; H=62; B14,1
199984 1 Pcs.
S NOZZLE 8,0/12,0; H=62; B14,1
197404 1 Pcs.
Height 52 mm, B14,1
S NOZZLE 3,0/6,0; H=52; B14,1
289012 1 Pcs.
S NOZZLE 4,0/8,0; H=52; B14,1
300889 1 Pcs.
Please note:
at a nozzle height higher than 47 mm a consultation with Ersa is recommended
