ACF is necessary for COF bonding, the ACF wi ll connect COF wi th Glass and PCB. Should choose the corre ct ACF before bond ing. The ACF for Glass side and PCB side is dif ferent. AC - 7206U - 18 1.5(W)X5 0(L) M for glas…

Panel Repair Factory India pvt. Ltd. 12

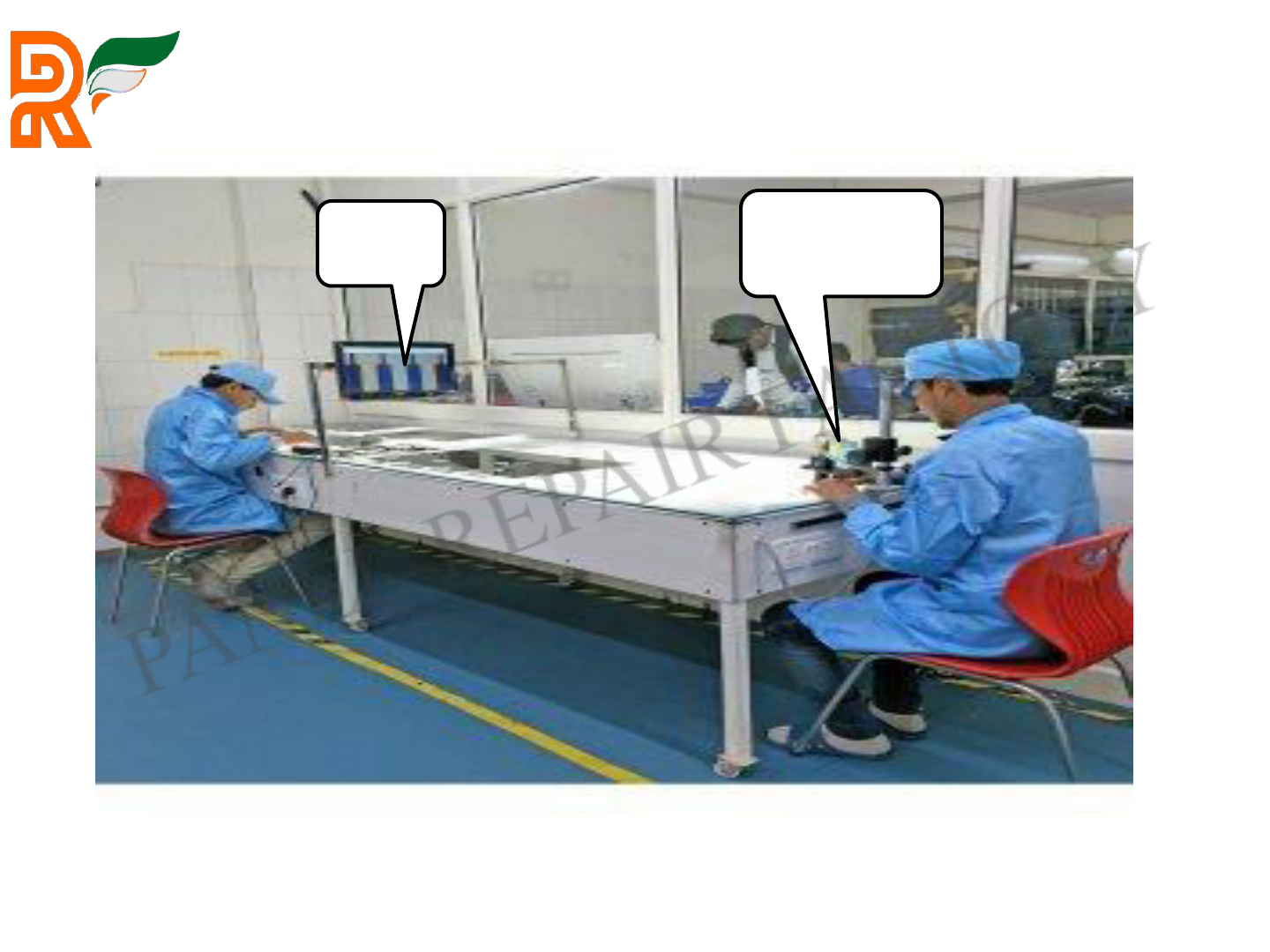

COF CHECKING WITH MICROSCOPE

COF

Tracks

Digital

Microscope

ACF is necessary for COF bonding, the ACF will connect COF with

Glass and PCB. Should choose the correct ACF before bonding. The

ACF for Glass side and PCB side is different.

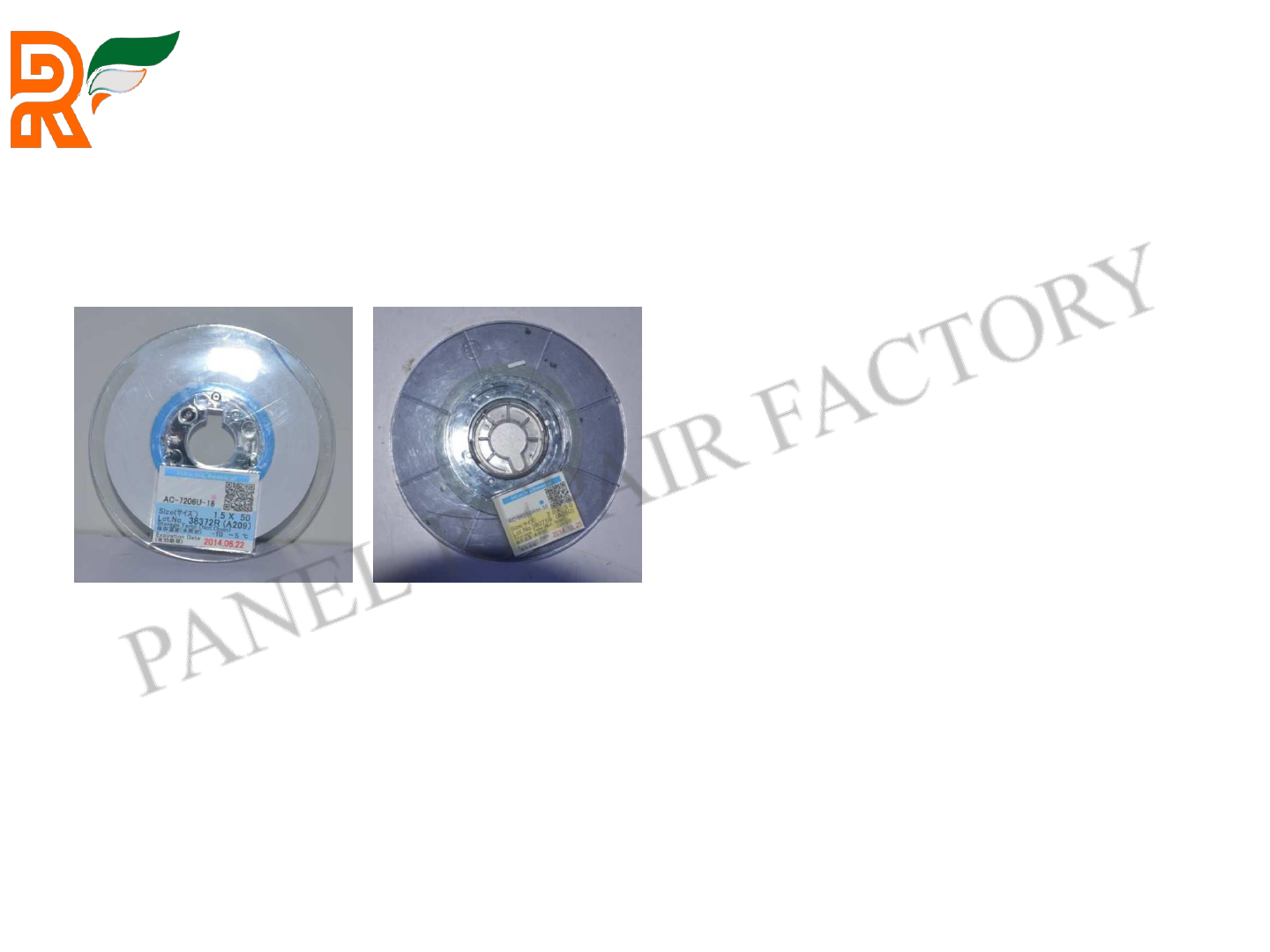

AC-7206U-18 1.5(W)X50(L)M

for glass side

AC-2056R-35 2.0(W)X50(L)M

for PCB side

• ACF should be stored in low temperature 5(like fridge),

• Please check the valid date of use written on the ACF label.

• ACF should not be used when expired.

• Put ACF back to the fridge after every day work finished.

ACF TAPE MODEL

13 Panel Repair Factory India pvt. Ltd.

Panel Repair Factory India pvt. Ltd. 14

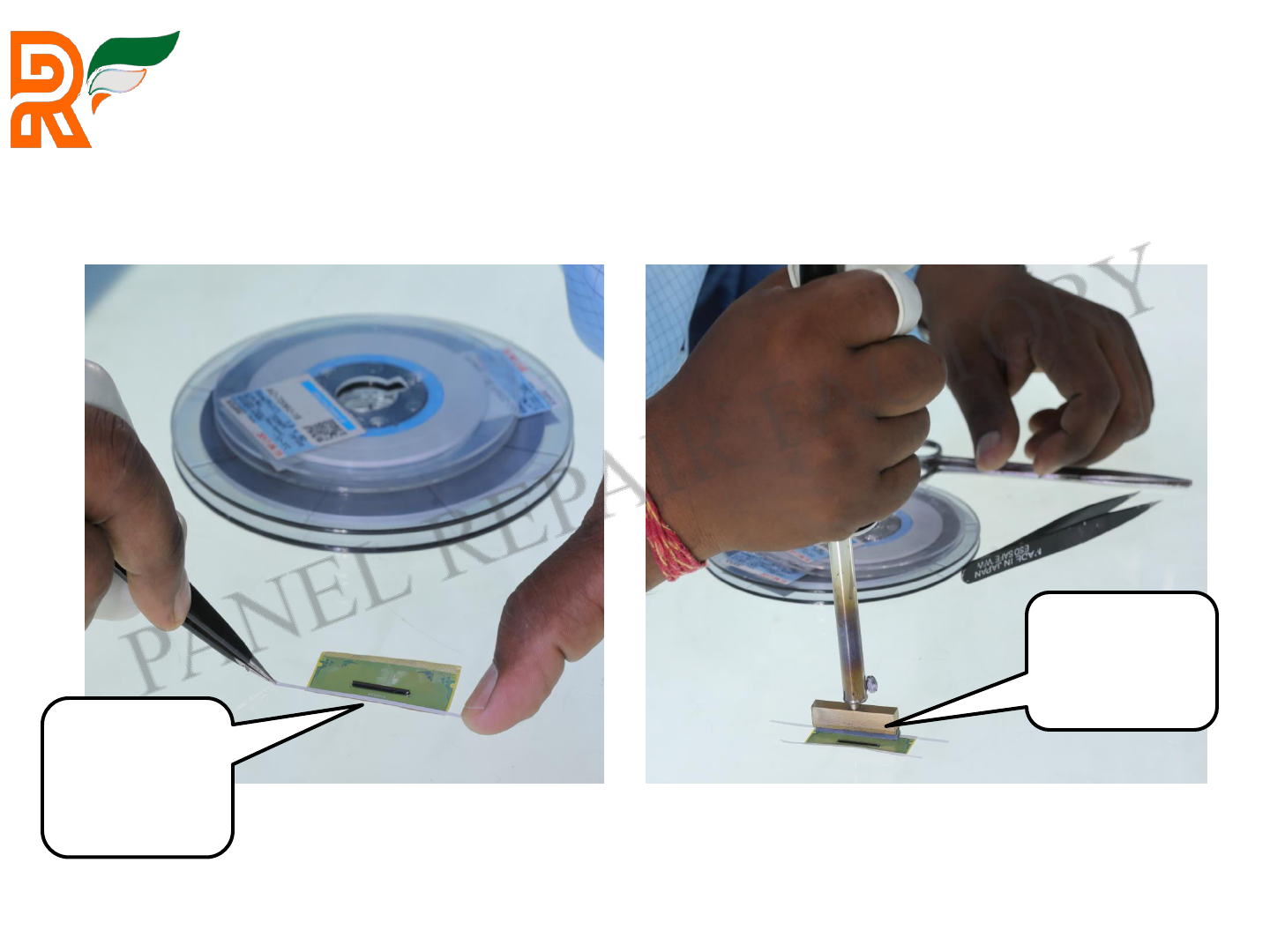

APPLY ACF TAPE ON COF

APPLY ACF

TAPE ON

BOTH SIDE

HEAT WITH

T BIT IRON
