Panel R epair F actory India pvt. Ltd. 16 GLASS SETTING ON BONDING MA CHINE
GLASS & PCB Cleaning

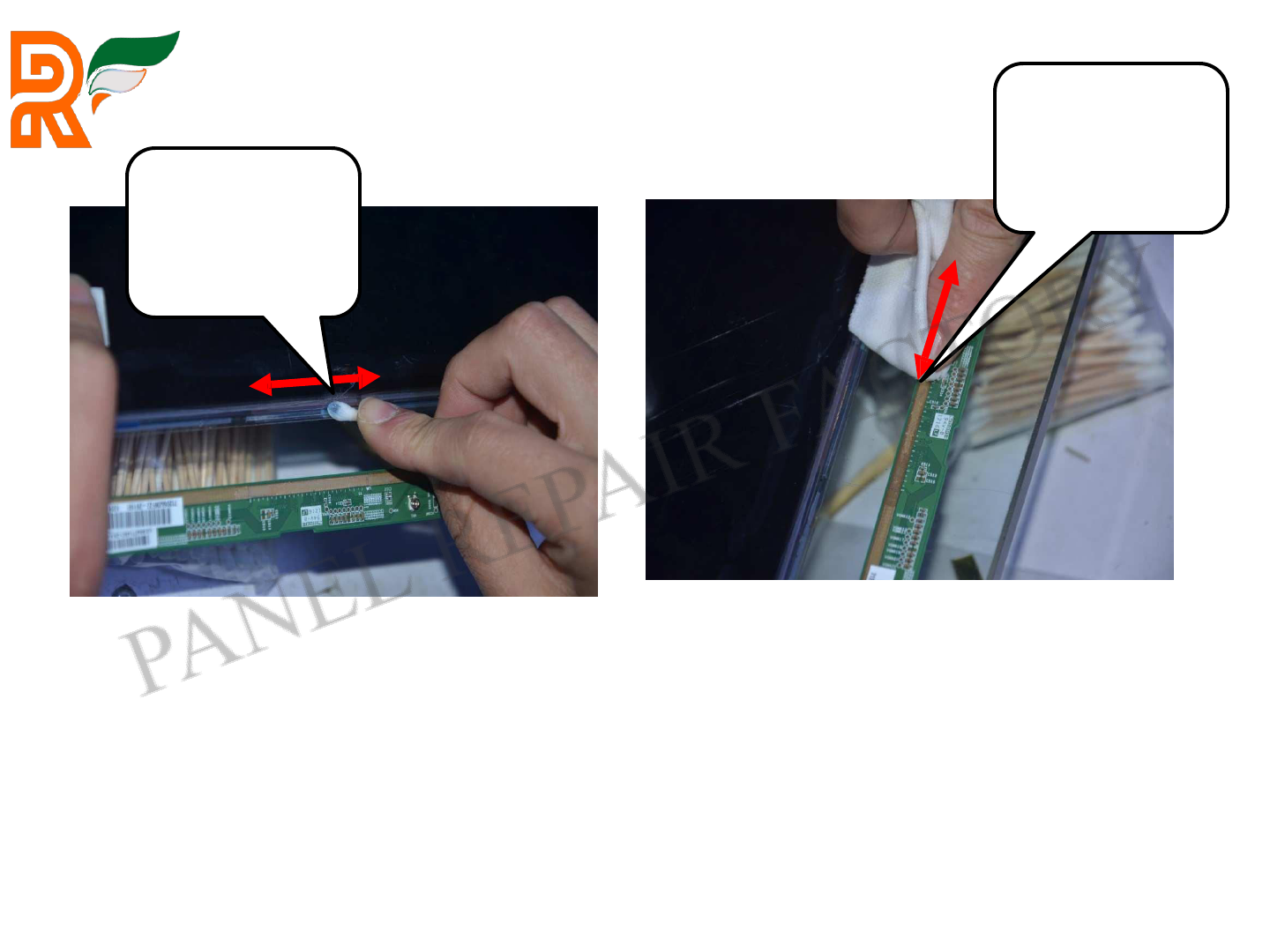

Glass cleaning
Alcohol, acetone
For Glass cleaning: 1. Scrub the residual ACF with cotton
buds with acetone; 2. Scrub with cotton swab(electrostatic
cloth) and acetone. 3. Repeat step 1 and 2 until the Glass
is clear.
Glass clean
with cotton
buds acetone
PCB Clean
with cloth &
acetone
15 Panel Repair Factory India pvt. Ltd.
Panel Repair Factory India pvt. Ltd. 16
GLASS SETTING ON BONDING MACHINE
Panel Repair Factory India pvt. Ltd. 17
FOR
LEFT/RIGHT
MOVEMENTS
FOR FOCUS
ADJUSTMENT
FOR UP/DOWN
MOVEMENTS
MICROSCOPE CONTROLLER
