Assembly instructions SMEMA Box SIPLACE D1 / D2 / D4 01/2007 Edition 20 2.2.2 Assembly kit SMEMA SIPLACE adapter device for D1 / D2 (item no .: 001 19092-xx) Item number 2 Name 2 Quantity 2 SMEMA adapter box 2 1 2 003347…
Assembly instructions SMEMA Box SIPLACE D1 / D2 / D4
01/2007 Edition
19
2 Assembly instructions
SMEMA Box SIPLACE D1 / D2 / D4
2.1 General
The SMEMA box is needed if the equipment further down the line (printers, conveyor belts, in-
spection systems or ovens) supports the SMEMA, rather than t
he SIPLACE, interface. 2
2.2 Parts required
2.2.1 Tools and consumables required
– Set of Allen keys
– Set of screwdrivers
– Diagonal cutter
– Set of cable ties
Assembly instructions SMEMA Box SIPLACE D1 / D2 / D4
01/2007 Edition
20
2.2.2 Assembly kit

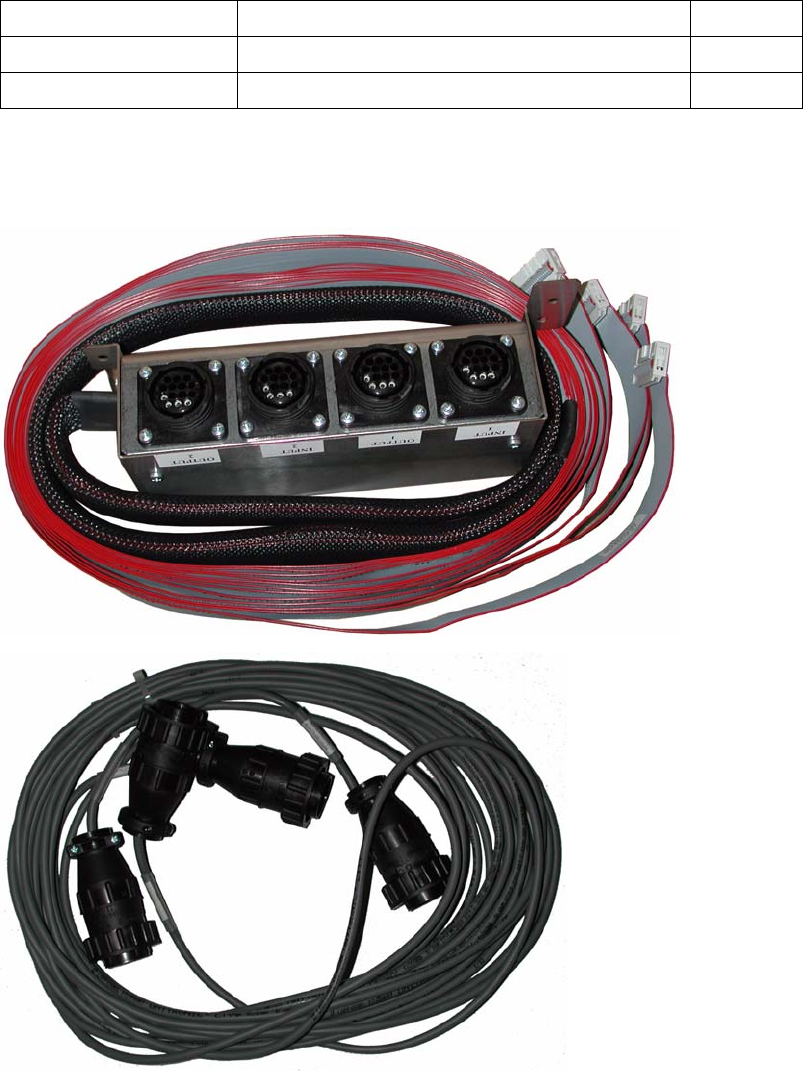

SMEMA SIPLACE adapter device for D1 / D2 (item no.: 00119092-xx)
Item number 2 Name 2 Quantity 2
SMEMA adapter box 2 1 2
00334770- 2 SMEMA cable 2 2 2
2
For dual conveyors, 2 additional "cables for SMEMA“ (00334770-) must also be ordered for the
second conveyor track. 2
2
2
Assembly instructions SMEMA Box SIPLACE D1 / D2 / D4
01/2007 Edition
21
2.3 Safety instructions
WARNING
The safety instructions from the “Oper
ational safety” chapter of the user manual and servicing in-
structions take precedence over these instructions.
The SIPLACE placement machines are supplied with main power voltage.
Consequently parts of these systems carry dangerous vo
ltages! This voltage is present at certain
modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death
or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correct
ly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve
in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the
vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields" sec-
tion of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety rules
applicab
le in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the opera
tional safety section of the operating instruc-
tions.
During the retrofit, always secure the machine to prevent access by other people and to prevent
it being switch
ed on again. The procedure is described in the “Locking the machine…” section of
the user manual.
Working with the SITEST program further incr
eases the risk of accident.
The SITEST program must only be used b
y authorized and trained personnel. 2
