Assembly instructions SMEMA Box SIPLACE D1 / D2 / D4
01/2007 Edition
25
: Remove the locking screw on the axis unit and carefully remove it from the extension kit.
: Run the ribbon cables from the SMEMA box throug
h the extension kit towards the conveyor
control. Make sure that you run the cables so that they cannot be damaged when you insert
the axis unit.
: Run the cables along the existing cables and thr
ough the cable duct to the conveyor control.
2
: Schließen Sie die Kabel gemäß Stromlaufplan an der Transportsteuerung an und stellen Sie
die Jumper für die Schnittstelle auf SMEMA.
Pin allocation D1/D2 (TSP-201)
X1 = Input previous station conveyor track 1
X2 = Output following station conveyor track 1
X4 = Input previous station conveyor track 2
X5 = Output following station conveyor track 2
J1 = SIPLACE /SMEMA previous station
J2 = SIPLACE /SMEMA following station
SIPLACE is allocation 1-2, = TOP in the mounting of the FBG in the machine
SMEMA is allocation 2-3, = BOTTOM in the mounting of the FBG in the machine
Pin allocation D4 Single conveyor / conveyor track 1 double conveyor (TSP-301)
X1 = Input previous station
X2 = Output following station
J1 = SIPLACE /SMEMA previous station
J2 = SIPLACE /SMEMA following station
SIPLACE is allocation 1-2, = TOP in the mounting of the FBG in the machine
SMEMA is allocation 2-3, = BOTTOM in the mounting of the FBG in the machine
Pin allocation D4 conveyor track 2 double conveyor (TSP-301E)
X1 = Input previous station
X2 = Output following station
J1 = SIPLACE /SMEMA previous station
J2 = SIPLACE /SMEMA following station
SIPLACE is allocation 1-2, = TOP in the mounting of the FBG in the machine
SMEMA is allocation 2-3, = BOTTOM in the mounting of the FBG in the machine
2
2
2
2
2
Interface cable SMEMA -- SIPLACE Input conv.1 00345971-01
Interface cable SMEMA -- SIPLACE Output conv.1 00345972-01
Interface cable SMEMA -- SIPLACE Input conv.2 00345973-01
Interface cable SMEMA -- SIPLACE Output conv.2 00345974-01
Conveyor control SIPLACE D4
Jumper
Assembly instructions SMEMA Box SIPLACE D1 / D2 / D4
01/2007 Edition
26
2
2

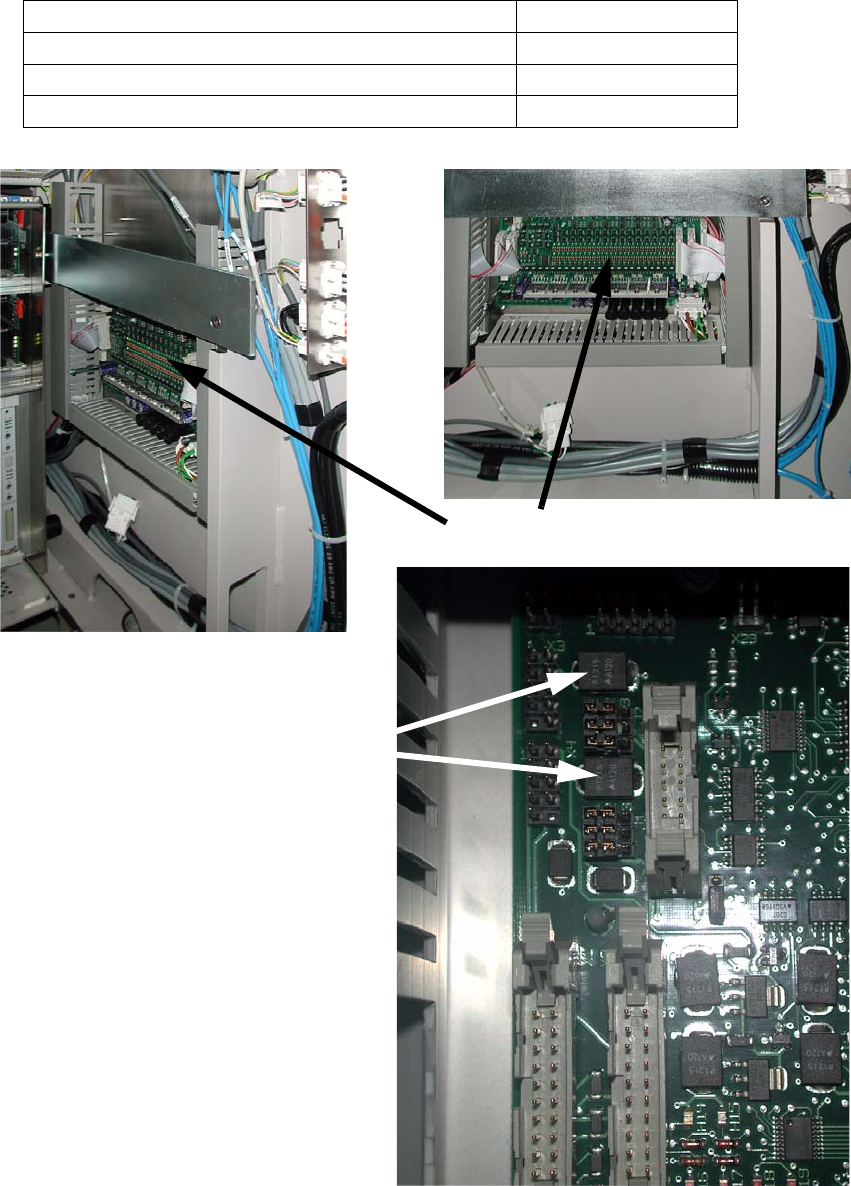

Fig. 2.10 - 5 SIPLACE D4 conveyor control
Scale / Maßstab
Date Name
A =
B =
C =
A
B
C
Following station
Previous station
Assembly instructions SMEMA Box SIPLACE D1 / D2 / D4
01/2007 Edition
27
2
Fig. 2.10 - 6 Conveyor control TSP-301 SIPLACE D4
