Full Auto In-Line Production R outing D evic e T ouch P anel The routing device equipped high speed precision spindle motor to reduce the reaction pressure from work piece. Aurotek own designed PC-Based motion control bo…

100%1 / 20

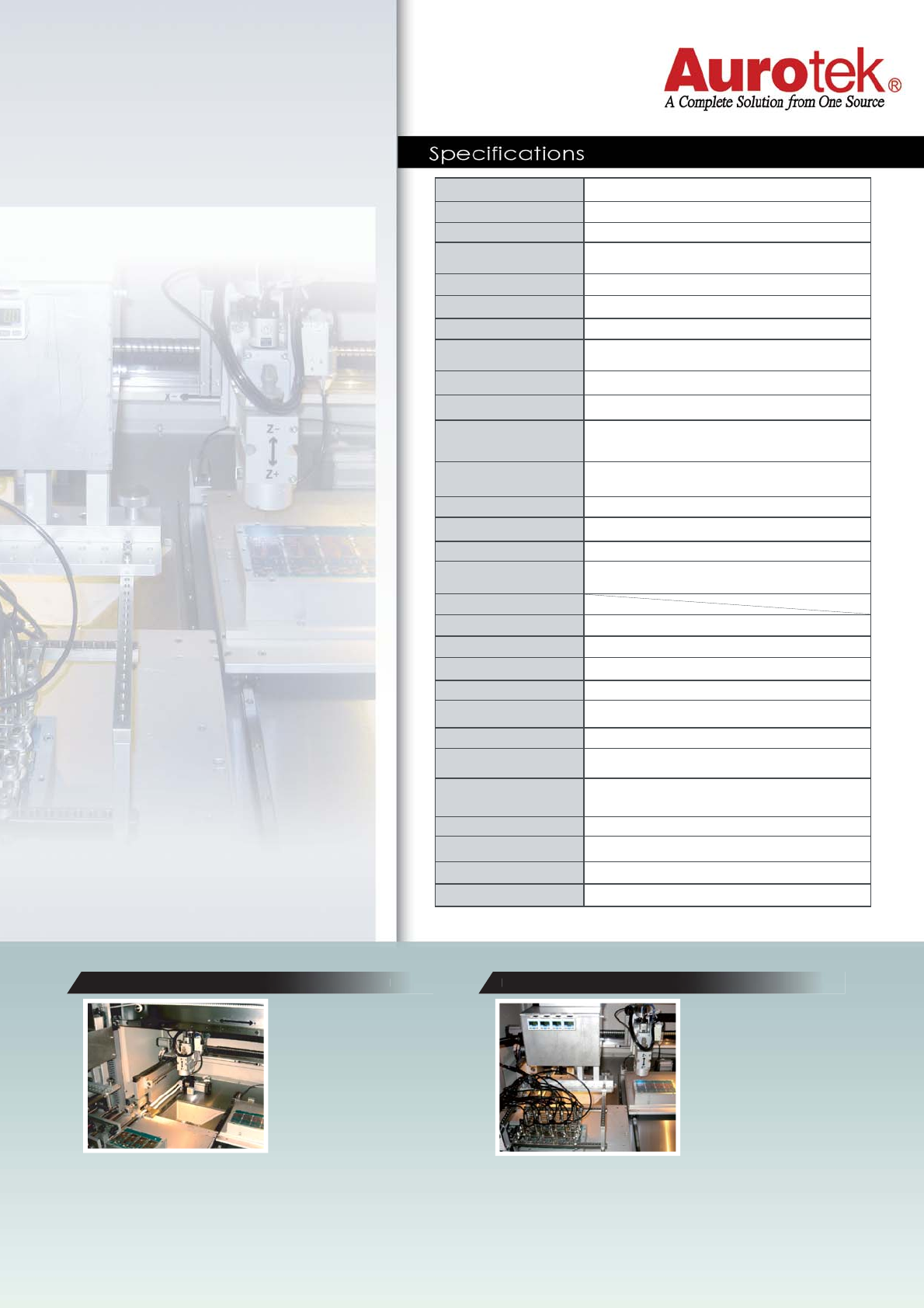

Setting Fixture
2 stations
Working Area
X:430mm Y:510mm Z:60mm
Component Height
Top side:15mm, Bottom side:45mm
PCB Thickness
0.5 ~ 2mm (It’s necessary to contact Aurotek
in advance for over 2mm )
Routing Bit Diameter
Ø1 ~ Ø2 mm (Option: over Ø 2mm )
Precision of Cutting
±0.1mm
Positioning Accuracy
±0.02mm
Positioning Repeatability
±0.02mm
Number of Axes in use
3 (X,Y,Z)
Driving Speed (Max.)
X, Y: 750mm/sec Z: 325mm/sec
Cutting Speed (Max.)
X, Y, Z: 100mm/sec
(it’s according to the specification of Bit for
the best speed setting)
Spindle
High speed variable frequency motor,
150W(Max. 58,000rpm)
Cutting Possibilities
Linear, Arc, Circular, U-curve, L-curve
Motor of Axes
3 axes (AC Servo motor)
Routing Bit Sectioning
Max.2 sections
Route Planning
Direct coordinate input or manual guiding
with 10X CCD camera
Safety Area Sensor
Option
Tool Break Detection
Option
Operating System
Windows XP
Program Storage
HDD
Program Backup
USB
Man-Machine Interface
TFT monitor + keyboard + mouse
Conveyor Adjustment
PCB Loading/Unloading
Manual
Power Supply
3 Phase AC220V±5℅ 50/60Hz
[5HP Vacuum included]4kw,15A
Air
Dry air 0.5Mpa
Dimensions(W x D x H)
1341x1682x1343 +587mm (signal tower)
Weight(approx.)
670kg
Working Height
90cm±5cm
T
win table to reduce the ta
c
t
t
t
i
m
m
e
R
outing
B
it
S
ectioning
Two sliding tables provide
simultaneously in-and-out
movement to reduce the tack
time for better productivity.
Routing bit automatically lift
and shift to next programmed
point then cutting to extend
the life time of routing bit.
利用兩組滑台更換加工物件，減少
等待時間，增加產能。
銑刀切割一定距離後自動上升/下降
至另一段未切割之刀刃位置，以延
長銑刀壽命。
2個の治具が交互に連動することによ
り、基板交換時の待機時間が短縮さ
れ、生産効率が上がります。
ビットは基板切断後カットポジショ
ンを自動シフトし、ビットの寿命を
最大に活かします。
10
Full Auto In-Line Production
R
outing
D
evic
e
T
ouch
P
anel
The routing device equipped high
speed precision spindle motor to reduce
the reaction pressure from work piece.
Aurotek own designed PC-Based motion
control board provides linear, circular
motions to meet different kind of shape
of PCB.
Touch Panel (GUI)
Graphical User Interface
plus touch panel make the
operation easier.
使用高轉速精密主軸馬達，對於PC板的切割壓
力小，搭配自行開發之PC-Based控制器，具備
直線、弧、圓弧、U 型切割功能，可適合各種
形狀PC板。
視覺化的圖形介面，配合觸控螢幕使
操作更為簡便。
高速スピンドルモータを使用している為、基盤切断時による切断応力が減少
(約プレスの1/10)。また自社開発のコントローラにより、直線や曲線などの自
在な切断が可能。多種類の基盤形状に対応。
タッチパネル操作により視覚的に見ら
れ、なおかつ簡単に操作できます。
11
Setting Fixture
2 stations
Working Area
X:330mm Y:250mm Z:60mm
Component Height
Top side:15mm, Bottom side:45mm
PCB Thickness
0.5 ~ 2mm (It’s necessary to contact Aurotek
in advance for over 2mm )
Routing Bit Diameter
Ø1 ~ Ø2 mm (Option: over Ø 2mm )
Precision of Cutting
±0.1mm
Positioning Accuracy
±0.02mm
Positioning
Repeatability
±0.02mm
Number of Axes in use
8 axes
Driving Speed (Max.)
X, Y: 750mm/sec Z: 325mm/sec
Cutting Speed (Max.)
X, Y, Z: 100mm/sec
(it’s according to the specification of Bit for
the best speed setting)
Spindle
High speed variable frequency motor,
150W(Max. 58,000rpm)
Cutting Possibilities
Linear, Arc, Circular, U-curve, L-curve
Motor of Axes
8 axes (AC Servo motor)
Routing Bit Sectioning
Max.2 sections
Route Planning
Direct coordinate input or manual guiding
with 10X CCD camera
Safety Area Sensor
Tool Break Detection
Standard
Operating System
Windows XP
Program Storage
HDD
Program Backup
USB
Man-Machine Interface
Touch Panel + keyboard + mouse
Conveyor Adjustment
Automatic / Manual
PCB Loading/Unloading
Bridge convey/Robot arm
Power Supply
3 Phase AC220V±5℅ 50/60Hz
[3HP Vacuum included]3kw,11A
Air
Dry air 0.5Mpa
Dimensions(W x D x H)
2337x1325x1659 +591mm (signal tower)
Weight(approx.)
760kg
Working Height
90cm±5cm
T
win table to reduce the
t
ta
c
ct
t
t
t
i
m
m
e
L
oading
/
Unloading Syst
e
em
Two sliding tables provide
simultaneously in-and-out
movement to reduce the tack
time for better productivity.
Automatically adjust the width
of conveyer plus robot system
make the loading / unloading
system easier.
利用兩組滑台更換加工物件，減少
等待時間，增加產能。
使用電動調整/記憶寬度之輸送帶，
搭配自動取置機械手臂，使上下料
件更為方便迅速。
2個の治具が交互に連動することによ
り、基板交換時の待機時間が短縮さ
れ、生産効率が上がります。
対象加工基板毎のコンベア幅は、自
動調節機能により、ローダ、アンロ
ーダが速やかで便利です。
